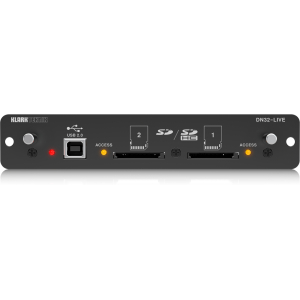

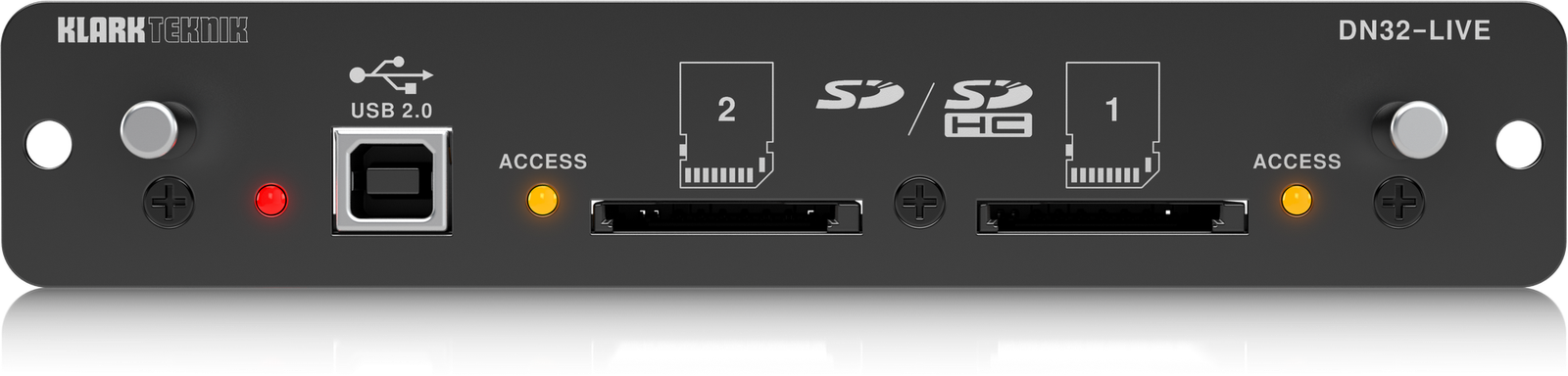

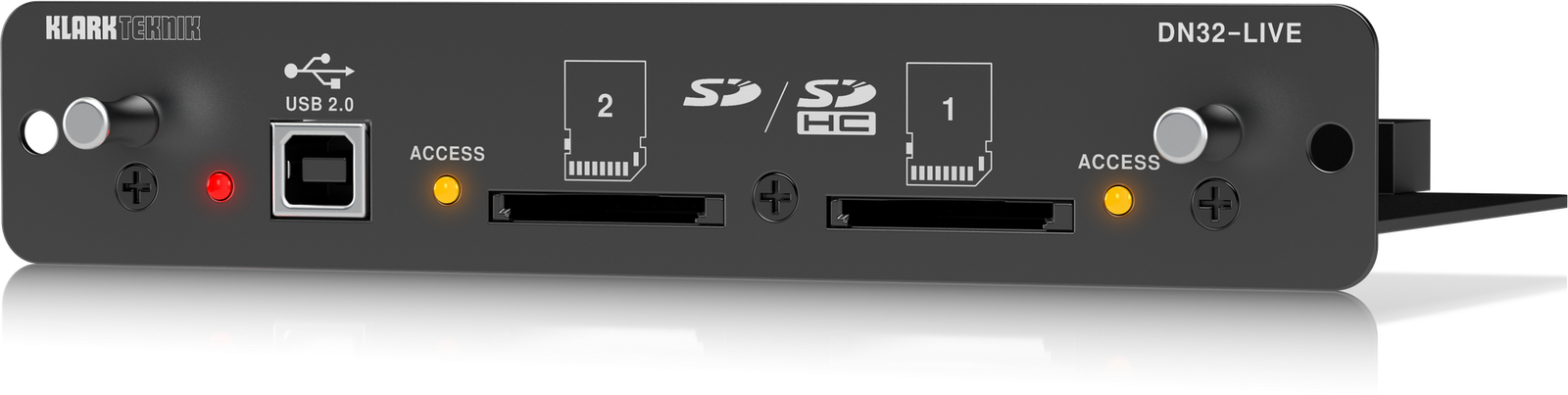

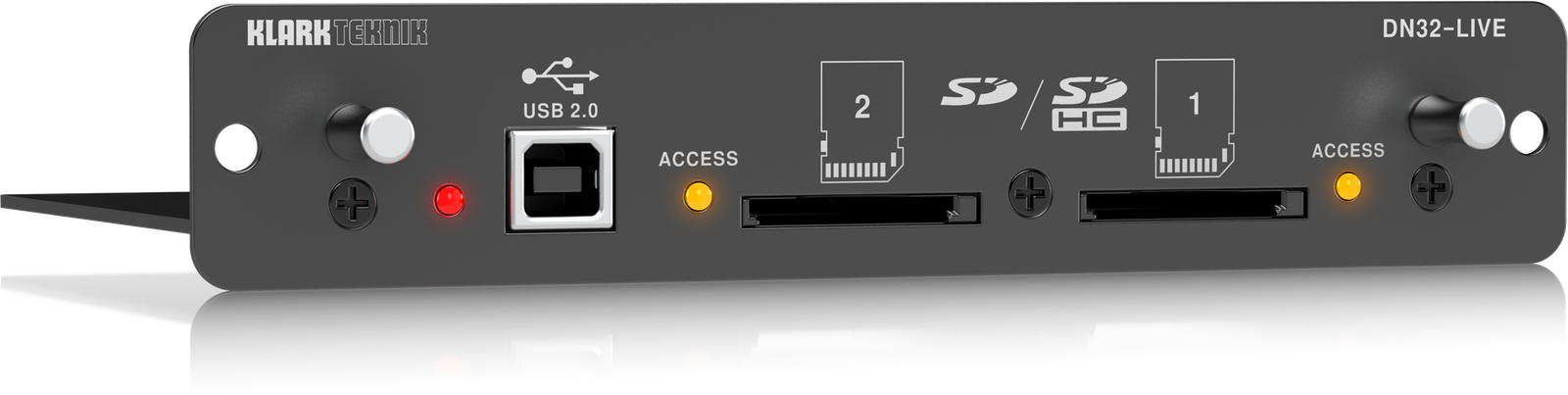

Klark Teknik DN32-LIVE SD/SDHC and USB 2.0 Expansion Module for 32-Bidirectional-Channel Live Recording/Playback

The DN32-LIVE SD/SDHC and USB 2.0 Expansion Module for MIDAS M32 and BEHRINGER X32 mixers provides 32-channel bi-directional audio I/O via USB 2.0 for both live performance and studio recording, plus comprehensive remote operation of your DAW via HUI/Mackie Control emulation. The addition of dual SD/SDHC slots allows fully independent recording and playback of up to 32 channels of uncompressed WAV files in consistent sessions – up to the maximum capacity of the SD cards. Now, without the need for a laptop computer, you can capture multi-channel live or session tracks, perform virtual sound checks, add in backing-tracks, set and manipulate accurate markers, and enjoy full remote operation via PC, Android* or iPad* apps, and X-TOUCH control surfaces. All of this barely begins to scratch the surface of what DN32-LIVE can bring to your M32/X32 console.

Features

• USB 2.0 expansion module for Midas and Behringer digital consoles
• 32-channel live recording and playback on dual SD/SDHC cards
• Up to 3 hours of 48 kHz/32-bit PCM recording of 32 channels in one session, stored as uncompressed WAV files
• Up to 32 bidirectional channels @ 48 kHz of recording and playback
• Independent operation of SD cards and USB recording / playback
• Remote control via PC, Android* or iPad* apps, assignable controls or compatible hardware control surfaces, such as the Behringer X-TOUCH
• Dual SD card slots to keep virtual sound check and live performance files separately available or for extended recording time
• Sample-accurate automatic spanning feature allows extending a session across both SD cards for more than 12 hours of 8-track recording time non-stop
• Instantaneous live playback with preload and markers in the console UI and remote apps
• Markers can be set on the fly for identifying song positions while recording or playing back
• All markers can be edited directly in the console GUI
• Seamless computer integration for virtual sound checks and software plug-ins
• Channel routing can be stored and automated for record/playback
• Secure file handling in the event of power blackout (optional CR123A Lithium cell required)
• Enables remote control of compatible DAW software via emulations of Mackie Control* and HUI* protocols
• Compatible with CoreAudio on Mac OSX* – ultra-low latency ASIO* drivers for Windows* PC available

Specifications
