Description
Key Features

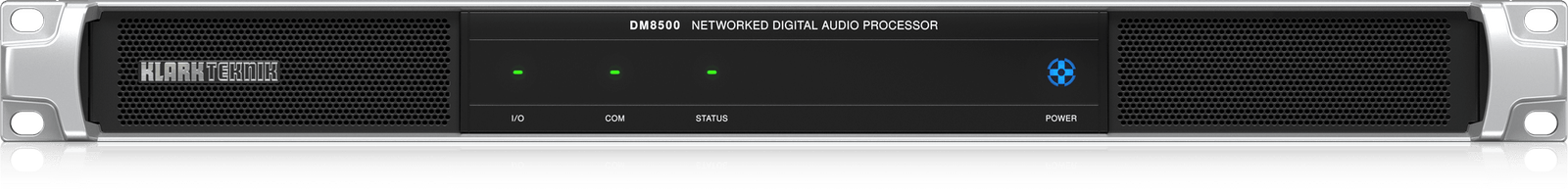

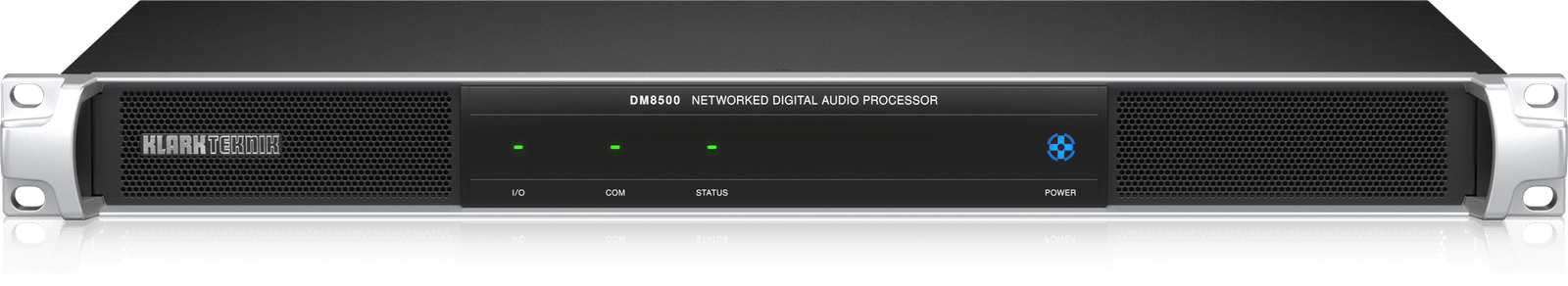

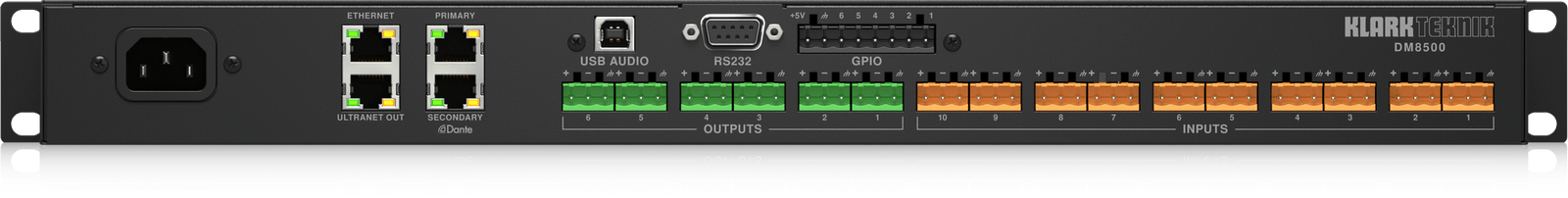

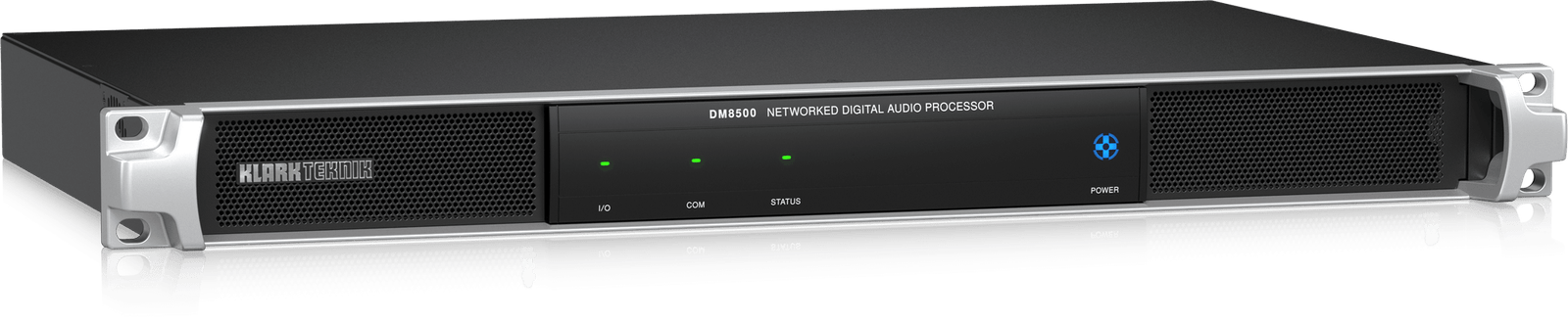

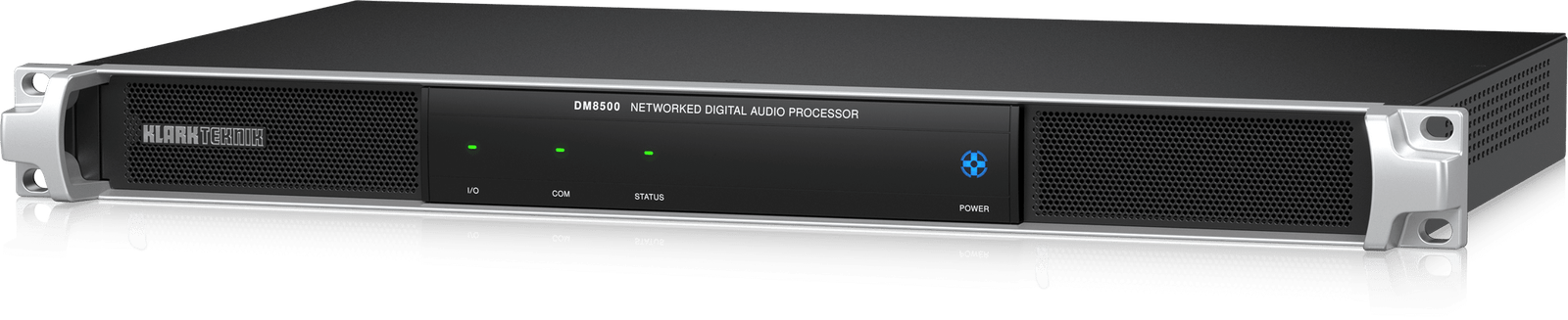

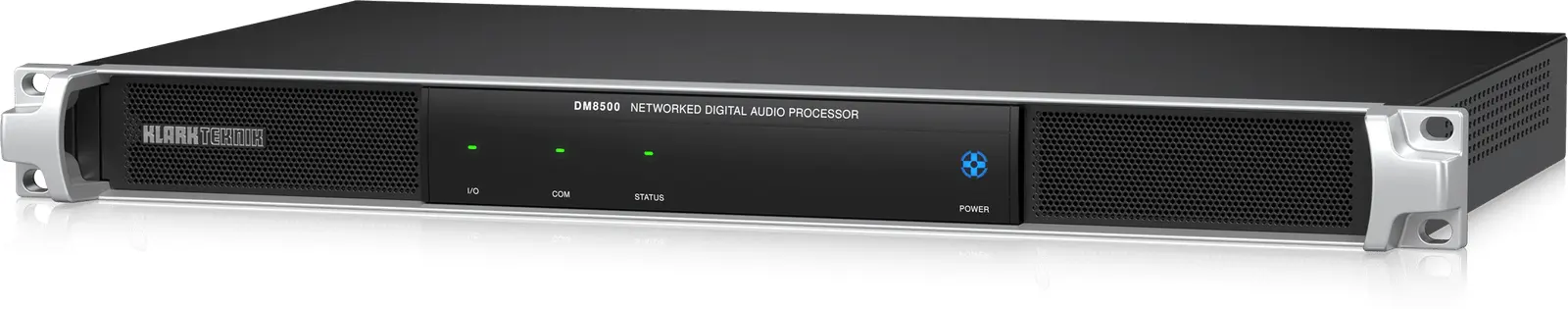

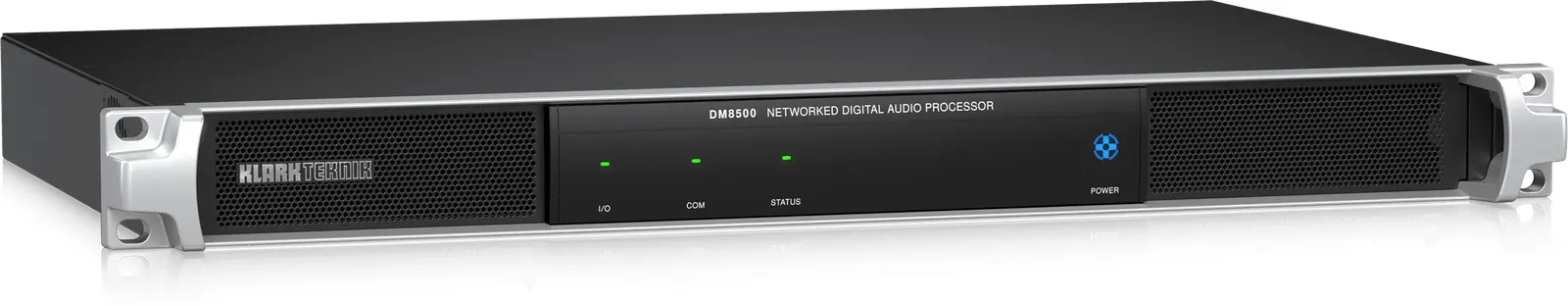

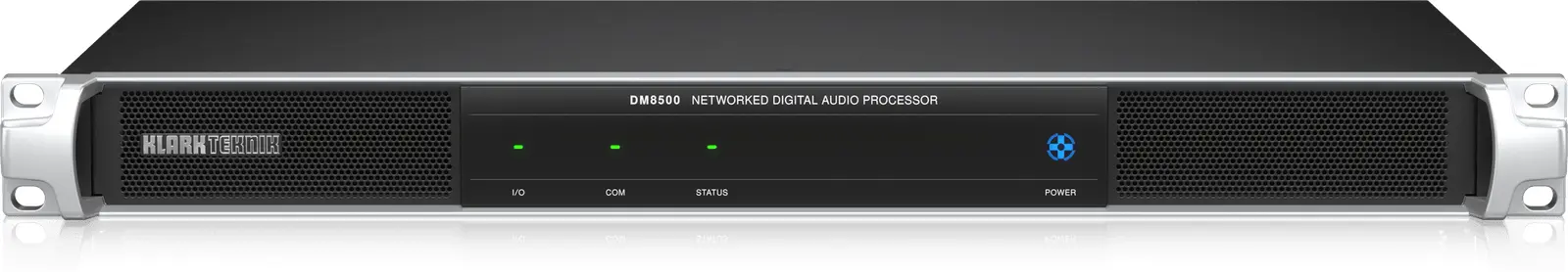

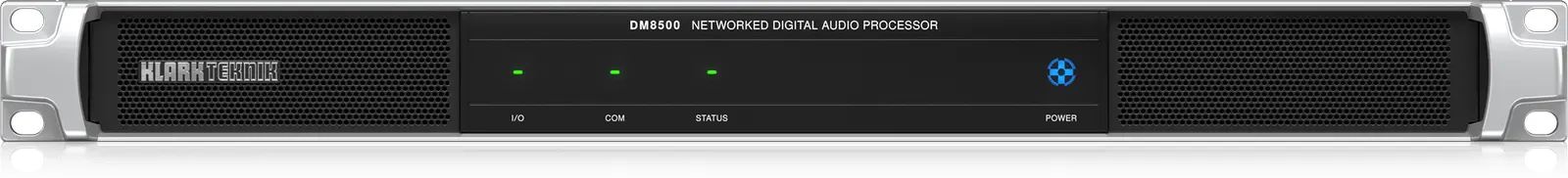

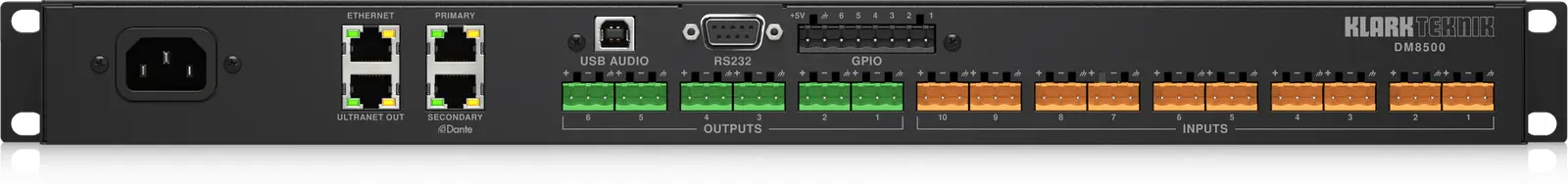

The DM8500 is a sophisticated digital audio processor designed for modern installed audio applications. Its high user-configurability, multiple input and output options, and integrated audio networking ensure seamless integration in various environments such as corporate setups, hospitality venues, and more. The device features 128 channels of Dante digital audio networking, easy integration with computer-based conferencing systems via USB, and control of external devices through Ethernet and RS232 ports.
Built with an advanced digital audio processor, the DM8500 boasts robust power and flexibility to manage the most demanding applications. Thanks to its open architecture format, system integrators can tailor the DM8500 to meet specific customer needs, making it an expandable and future-proof solution.
Specifications
Analogue Inputs
| Number of channels |
10 |
| Type |
Analogue, electronically balanced Euroblock connectors |
| Impedance |
10 kΩ |
| Maximum input level |
+24 dBu |
| Gain range |
0 to +66 dB with step 6 dB |
| Common mode rejection |
Typically, 60 dB at 1 kHz |
| Crosstalk (inter-channel @ 1 kHZ) |
< -75 dB |
| Phantom power |
+48 VDC, 7mA per channel |
Analogue Outputs
| Number of channels |
6 |
| Type |
Analogue, electronically balanced Euroblock connectors |
| Output impedance |
200 Ω, balanced |
| Maximum output level |
-31 dBu to +24 dBu |
Dante Input / Output Characteristics
| Number of channels |
64 input / 64 output |
| Connector |
2 x RJ45 |
| Sample rate |
48 kHz |
| Resolution |
24-bit |
| DM8500 internal latency |
< 1.8 ms |
| DM8500 Dante latency |
0.25 ms, 0.5 ms, 1.0 ms, or 5.0 ms (set by Dante controller) |
| Clock synchronization |
Incoming Dante clock or DM8500 internal clock |
ULTRANET Digital Network
| Number of channels |
16 out |
| Connector |
RJ45 |
| Sampling rate |
48 kHz |
| Latency |
< 1.8 ms |
| Cable |
Shielded CAT-5 |
| Cable length |
Up to 75 m / 250 ft |
