Audio Video Interfaces

Klark Teknik DM801 RS232/Ethernet Interface for DM8000 with PoE Support

Klark Teknik

AED 416.85 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DM801 Categories: , Brand:

The DM801 offers customers an Ethernet interface to enable IP network control of the Klark Teknik DM8000 Digital Audio Processor, making it highly compatible with various third-party control systems.

Description

Klark Teknik DM801 Ethernet Interface

The DM801 is designed for customers seeking an Ethernet interface for IP network control of their Klark Teknik DM8000 Digital Audio Processor. It is ideal for integration with third-party control systems, offering robust connectivity and reliable performance.

Features

  • RS232 / Ethernet adapter device for IP network control of DM8000
  • Provides IP control from 3rd-party controllers through DM8000 RS232 port
  • POE (Powered over Ethernet) for convenient network deployment
  • Extra RS232 port to connect to 3rd-party control systems
  • Built-in LED provides power indication

Specifications

Parameter Details

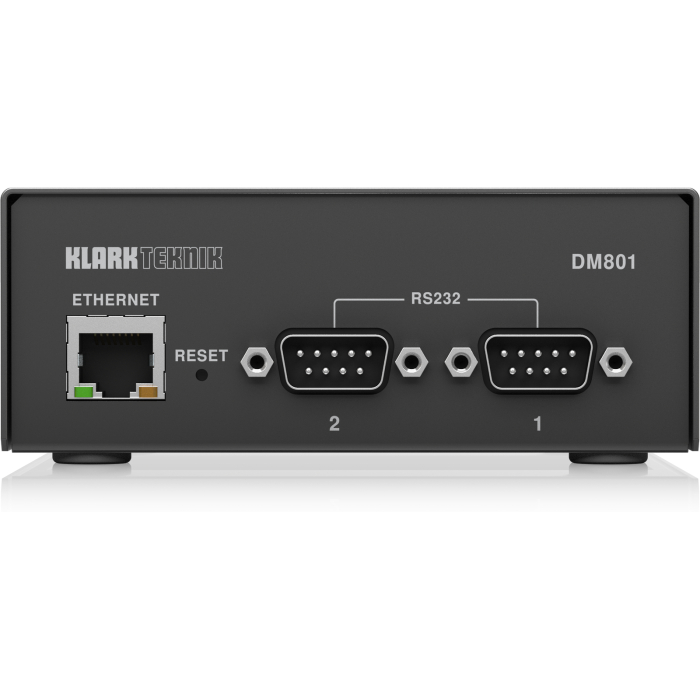

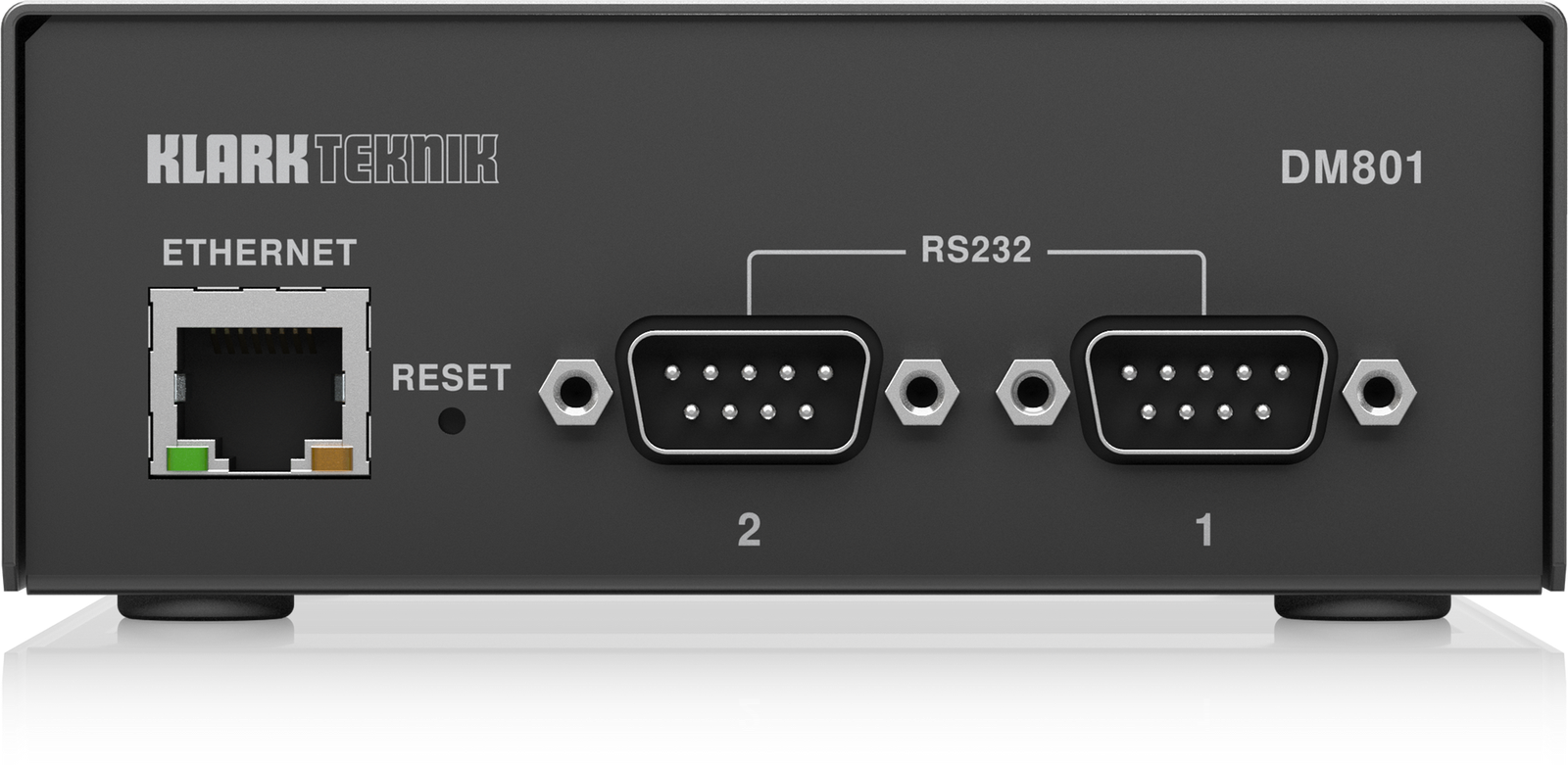

Interface Ports 1x RJ45, 2x RS-232
Processor AM3352 ARM Cortex-A8
RAM 256 MB DDR3
Flash Memory 256 MB NAND
Port Speed 1200 to 115,200 b/s (Selectable), 115,200 b/s
Data Bits 8-Bit Protocol Supported
Network 10 Base-T / 100 Base-TX Ethernet
Indicators Power LED (Blue), Ethernet Link/Activity LEDs (Yellow/Green)
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Power Consumption 3.84 W Maximum
Power Requirement PoE
Dimensions 1.8 x 4.6 x 4.7″ / 4.5 x 11.7 x 12.0 cm
Weight 1.9 lb / 0.9 kg
