Description

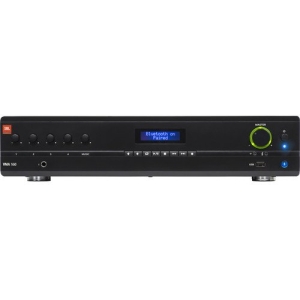

JBL VMA160 Commercial Series Mixer/Amplifier
The JBL VMA160 is an advanced Commercial Series Bluetooth-enabled mixer/amplifier, accommodating versatile multi-source mixing and robust amplification. Designed for installations in venues such as restaurants, educational institutions, fitness centers, and retail spaces, it boasts a 5-in/1-out mixer and delivers 60W of power. With a supplied rackmount kit, it can be conveniently mounted in a 19-inch equipment rack or positioned on a surface such as a desk or shelf.

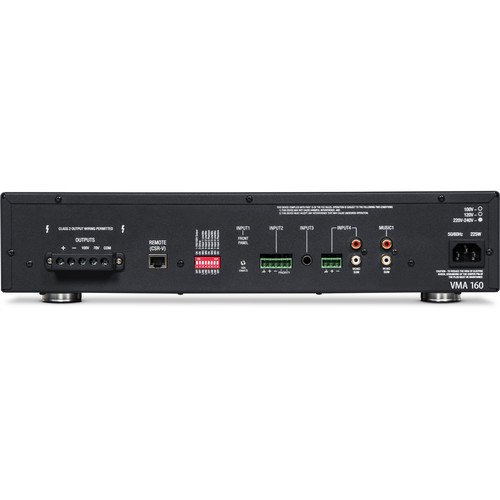

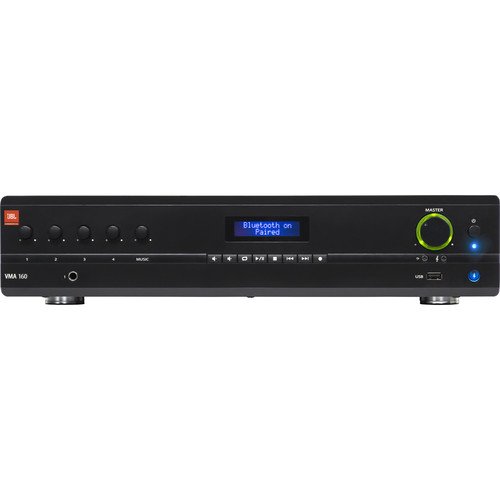

Enjoy wireless music streaming via Bluetooth or connect a USB drive to the USB Type-A port on the front panel for seamless playback. Additional audio sources can be routed using Euroblock, RCA, and 1/4″ input jacks. The built-in mixer provides level controls along with bass and treble adjustments for each channel. Configurable output routing, voice-activated ducking, and priority muting features enhance its functionality, making it an ideal choice for professional audio setups. Operator convenience is ensured through intuitive front-panel controls, and remote volume management is possible with the optional JBL CSR-V module and standard Ethernet cable.
Key Features
| Specification |
Details |
| Usage |
Commercial & Industrial |
| Input Connectors |
Euroblock, RCA, 1/4″ TRS |
| Bass & Treble Controls |
Independent Per Channel |
| Ducking & Muting |
Voice-Activated & Priority |
| Remote Volume Control |
Available (with optional CSR-V module & Cat5e cable) |
| Output Routing |
Configurable |
| Output Connections |
Barrier Block (8 Ohms, 70V, 100V) |
| Media Player |
Bluetooth & USB MP3 Playback |
Specifications
Amplifier:
| Form Factor/Type |
Tabletop |
| Number of Channels |
5 Input / 1 Output |
| Power Rating |
4 Ohms / 8 Ohms: 60 W per Channel (1 kHz, 0.5% THD) |
| Load Impedance / Voltage |
4 Ohms (Minimum), 70 V (80 Ohms Minimum), 100 V (160 Ohms Minimum) |
Performance:
| Frequency Response |
20 Hz to 20 kHz ±2 dB (Low-Z), 80 Hz to 15 kHz ±3 dB (70/100 V) |
| Input Sensitivity |
Mic: 5.5 mVrms, Line: 1.3 Vrms, Stereo RCA: 130 mVrms |
| I/O Impedance |
Mic Input: 400 Ohms, Line Input: 20 Kilohms (Balanced), RCA Input: 50 Kilohms |
| Insertion Loss |
1 dB Maximum |
| SNR |
> 76 dB (at Rated Power, A-Weighted) |
| THD |
< 0.5% (20 Hz to 20 kHz) |
| Crosstalk |
-70 dB (at Rated Power, Mid Gain, 1 kHz) |
Signal Processing:
| EQ |
2-Band per Channel: Bass: ±14 dB at 50 Hz, Treble: ±14 dB at 10 kHz |
Power:
| AC Input Power |
100 VAC, 50/60 Hz; 120 VAC, 50/60 Hz; 220 VAC, 50/60 Hz; 220-240 VAC, 50/60 Hz |
Physical:
| Operating Temperature |
32 to 95°F / 0 to 35°C |
| Storage Temperature |
-4 to 185°F / -20 to 85°C |
| Operating Humidity |
0 to 95% (Non-Condensing) |
| Dimensions |
17.0 x 3.5 x 16.3 in / 432.0 x 88.0 x 415.0 mm |
| Weight |
19.4 lb / 8.8 kg |
Packaging Info:
| Package Weight |
24 lb |
| Box Dimensions (LxWxH) |
21 x 20.5 x 6.5 in |
