The JBL VMA1240 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features a 5-in/1-out mixer and 240W of output power. It can be installed in a standard 19” equipment rack with the supplied rackmount kit or set on a surface such as a desk or ledge.

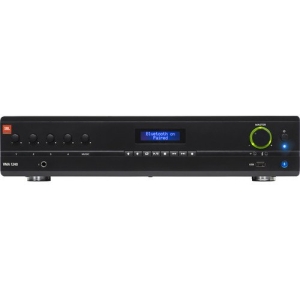

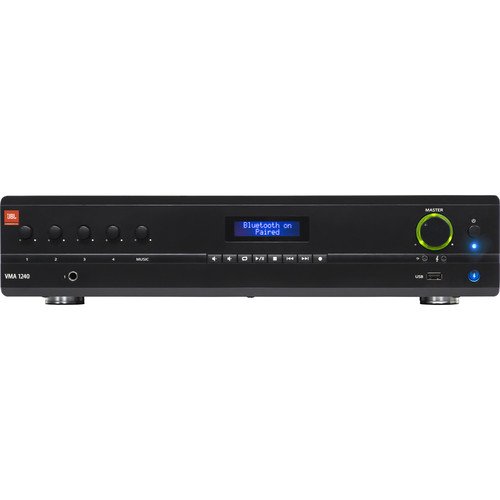

Stream music wirelessly via Bluetooth or connect a USB drive to the front-panel USB Type-A port. Route other sources via Euroblock, RCA, and 1/4″ input jacks. The integrated mixer offers level controls as well as bass and treble for each channel. Routing to the Euroblock outputs is configurable. The VMA1240 supports voice-activated ducking and priority muting. The front-panel controls and display make operation easy, and remote volume control is possible via a JBL CSR-V module and a standard Ethernet cable (both available separately).
Features
Suitable for commercial and industrial use

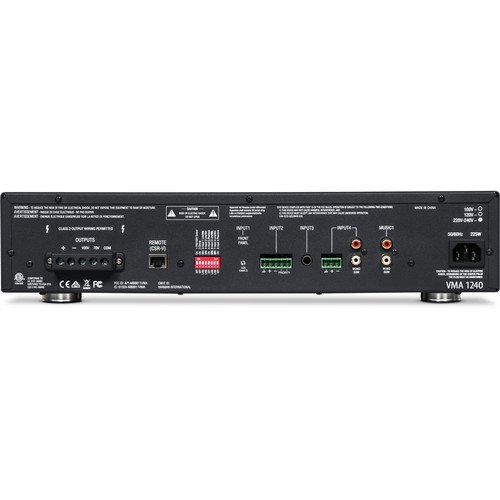

Euroblock, RCA, and 1/4″ TRS input connectors
Independent bass and treble controls for each output channel
Voice-activated ducking during announcements
Remote volume control capability using optional JBL CSR-V module and Cat5e cable with RJ45 connectors
Priority muting using PTT switch closure
Configurable output routing
Barrier block output connections to drive 8 Ohms, 70V or 100V speaker systems
Media player capable of playing MP3 files from a Bluetooth device or USB drive
Specifications
Amplifier
| Form Factor/Type |
Tabletop |
| Number of Channels |
5 Input / 1 Output |
| Power Rating |
4 Ohms / 8 Ohms: 240 W per Channel (1 kHz, 0.5% THD) |
| Load Impedance / Voltage |
4 Ohms (Minimum) 70 V (20 Ohms Minimum) 100 V (40 Ohms Minimum) |
Performance
| Frequency Response |
20 Hz to 20 kHz ±2 dB (Low-Z) 80 Hz to 15 kHz ±3 dB (70/100 V) |
| Input Sensitivity |
Mic: 5.5 mVrms Line: 1.3 Vrms Stereo RCA: 130 mVrms |
| I/O Impedance |
Mic Input: 400 Ohms Line Input: 20 Kilohms (Balanced) RCA Input: 50 Kilohms |
| Insertion Loss |
1 dB Maximum |
| SNR |
> 76 dB (at Rated Power, A-Weighted) |
| THD |
< 0.5% (20 Hz to 20 kHz) |
| Crosstalk |
-70 dB (at Rated Power, Mid Gain, 1 kHz) |
Signal Processing
| EQ |
2-Band per Channel: Bass: ±14 dB at 50 Hz Treble: ±14 dB at 10 kHz |
Power
| AC Input Power |
100 VAC, 50 / 60 Hz 120 VAC, 50 / 60 Hz 220 VAC, 50 / 60 Hz 220 to 240 VAC, 50 / 60 Hz |
Physical
| Operating Temperature |
32 to 95°F / 0 to 35°C |
| Storage Temperature |
-4 to 185°F / -20 to 85°C |
| Operating Humidity |
0 to 95% (Non-Condensing) |
| Dimensions |
17.0 x 3.5 x 16.3″ / 432.0 x 88.0 x 415.0 mm |
| Weight |
25.5 / 11.6 kg |
Packaging Info
| Package Weight |
32 lb |
| Box Dimensions (LxWxH) |
21 x 20.5 x 6.5″ |
