Mixer Amplifiers

JBL CSMA 280 8-Input Commercial Mixer Amplifier 2x80W

JBL Professional

AED 4810 inc VAT.

The JBL CSMA 280 Commercial Series Mixer/Amplifier is designed for commercial and industrial applications, featuring eight mixer-channel inputs and two output channels with a peak power of 80W. It offers illuminated volume controls for easy operation in dark environments, bass and treble adjustments, and support for both 70V and 100V distributed audio systems. It includes euroblock and RCA inputs, speaker connections, RJ45 connectors for in-wall volume controls, and features such as voice-activated ducking, priority muting, and an automatic sleep mode. Two auxiliary outputs allow connection to an additional amplifier.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CSMA280 Categories: , , Brand:

Description

JBL CSMA 280 Commercial Series Mixer/Amplifier

The JBL CSMA 280 Commercial Series Mixer/Amplifier is a versatile and reliable audio solution engineered for commercial and industrial environments. With eight mixer-channel inputs and two robust output channels, this unit is capable of delivering 80W of peak power. Both its simple front panel interface and extensive back-panel connectivity make it suitable for a variety of applications.

Key Features

Specification Details
Power Rating 80W peak per channel, 10W RMS per channel
Inputs/Outputs 8 Input / 2 Output channels
Control Panel Illuminated volume controls, bass and treble adjustment
Load Compatibility Drives both 4 Ohm and 8 Ohm loads; supports 70V and 100V systems
Input Connections Euroblock, RCA, Mic/Line inputs
Remote Control Compatible with JBL CSR-V in-wall volume controls via RJ45
Additional Features Voice activated ducking, priority muting, sleep mode

Detailed Specifications

Category Specification Details
Amplifier Form Factor Rackmount
Power Rating 4/8 Ohms: 80W peak per channel, 10W RMS per channel
Load Impedance 4 Ohms minimum, 70V (60 Ohms minimum), 100V (120 Ohms minimum)
SNR Greater than 90 dB
Performance Frequency Response Amplifier: 20 Hz to 20 kHz ±2 dB (Low-Z), 80 Hz to 15 kHz ±2 dB (70/100 V)
Mic Input Sensitivity 3 mVrms
Line Input Sensitivity 775 mVrms
RCA Input Sensitivity 300 mVrms
Output Level Line Output: 5 Vrms
THD Less than 0.5% (20 Hz – 20 kHz, Main Output), 0.05% (Line Output)

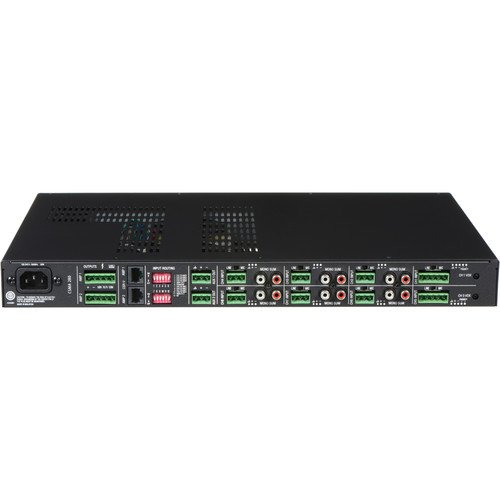

Connectivity Audio I/O 2 x Euroblock 5-Pin (Balanced Line/Mic), 6 x Euroblock 3-Pin (Balanced Line/Mic), 6 x RCA (Unbalanced Summed-Mono), 2 x Euroblock 3-Pin (Aux Output)
Other I/O 2 x RJ45 (Remote/Volume)
Phantom Power 27 VDC
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector 1 x IEC
Dimensions 17.2 x 1.7 x 11.9″ (436.9 x 43.2 x 302.3 mm)
Weight 11.9 lb (5.4 kg)
Operating Temperature 32 to 95°F (0 to 35°C)
Storage Temperature -4 to 185°F (-20 to 85°C)
