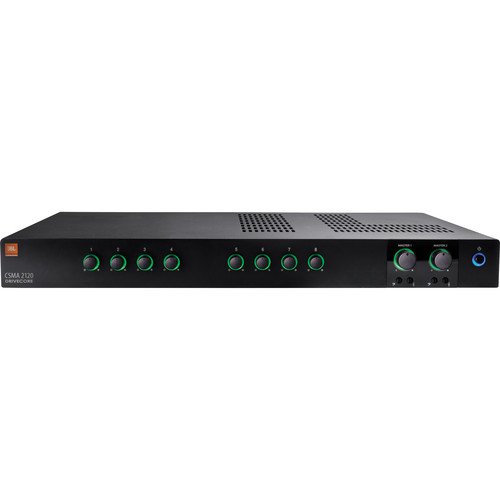

JBL CSMA 2120 Commercial Series Mixer/Amplifier – 8 Input, 2x120W

JBL Professional

AED 5239.99 inc VAT.

The JBL CSMA 2120 Commercial Series Mixer/Amplifier is designed for commercial and industrial use, featuring eight mixer-channel inputs, two output channels, and a peak power of 120W. It includes illuminated volume controls, bass and treble controls, and supports both 70V/100V distributed audio systems. It has euroblock connections, unbalanced RCA inputs, dip switches, and RJ45 connectors for in-wall volume controls (sold separately), making it versatile and easy to operate even in low-light conditions.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CSMA2120 Categories: , , Brand:

Description

JBL CSMA 2120 Commercial Series Mixer/Amplifier

The JBL CSMA 2120 Commercial Series Mixer/Amplifier is an ideal solution for commercial and industrial audio applications. With eight input channels and two output channels capable of delivering up to 120W of peak power, this unit is designed to provide clear and powerful sound.

Key Features

  • Eight mixer-channel inputs and two output channels
  • 120W peak power with 15W per channel
  • Illuminated volume controls for operation in dark environments
  • Compatible with 70V and 100V distributed audio systems
  • Voice-activated ducking for paging over background music

Additional Features

  • Priority muting for channels one and five
  • Automatic sleep mode after 30 minutes of inactivity
  • Two auxiliary outputs for additional amplifier connectivity

Key Specifications

Specification Details
Form Factor/Type Rackmount
Number of Channels 8 Input / 2 Output
Power Rating 120W per Channel (1 kHz, 0.5% THD)
Load Impedance / Voltage 4 Ohms (Minimum)
70V (40 Ohms Minimum)
100V (80 Ohms Minimum)
Frequency Response 20 Hz to 20 kHz ±2 dB (Low-Z)
Input Sensitivity Mic: 3 mVrms
Line: 775 mVrms
RCA: 300 mVrms
I/O Impedance Mic Input: 400 Ohms
Line Input: 20 Kilohms (Balanced)
Output Level Line Output: 5 Vrms (10-Kilohm Load)
THD 0.5% (20 Hz to 20 kHz, Main Output)
0.05% (Line Output)
Dimensions 17.2 x 1.7 x 11.9 inches (436.9 x 43.2 x 302.3 mm)
Weight 12.1 lb (5.5 kg)
Certification Energy Star certified, Lead-free RoHS standards
