JBL Professional Mixer Amplifier CSMA1120 4 Inputs 120W for Commercial Use

JBL Professional

AED 4,310 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CSMA1120 Categories: , , Brand:

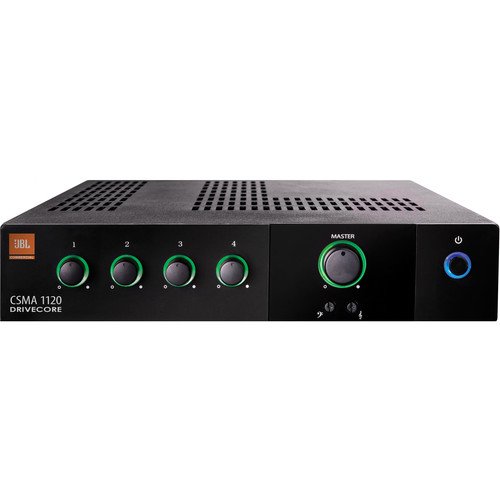

The JBL CSMA 1120 Commercial Series Mixer/Amplifier is designed for commercial and industrial use, featuring four mixer-channel inputs, one output channel, and 120W peak power. The front panel includes illuminated volume controls, a master volume knob, bass and treble controls, and a power switch. Suitable for 8 and 4 Ohm loads as well as 70V and 100V systems, it includes mic/line inputs, RCA inputs, speaker connections, and a RJ45 connector on the back panel. Additional features include voice-activated ducking, priority muting, sleep mode, and an auxiliary output for connecting to an additional amplifier.

Description

JBL CSMA 1120 Commercial Series Mixer/Amplifier

The JBL CSMA 1120 Commercial Series Mixer/Amplifier is designed for commercial and industrial use, integrating a versatile control system with robust power output and a range of connectivity options. With four mixer-channel inputs and a single output channel, it delivers up to 120W of peak power, making it an ideal solution for a variety of audio environments.

Key Features

Specification Details
Channels 4 Mixer-Channel Inputs, 1 Output Channel
Power Output 120W Peak (15W per channel)
Load Compatibility Drives both 8 and 4 Ohm loads, 70V/100V systems
Controls Independent Bass, Treble, Input Level, and Master Volume
Hi-Z Switch Allows the unit to drive 70V or 100V speaker systems
Phantom Power 27 VDC
VOX Function Voice activated ducking on input channel 1
Priority Muting Uses input channel 1 for priority channel muting
Remote Volume Control Using CSR-V controller via RJ45 connector
Sleep Mode Activates after 30 minutes of no signal
Auxiliary Output Connects to additional amplifiers, mixed input channels

Technical Specifications

Specification Details
Form Factor Rackmount
Frequency Response 20 Hz to 20 kHz ±2 dB (Low-Z), 80 Hz to 15 kHz ±2 dB (70/100V)
Input Sensitivity Mic: 3 mVrms, Line: 775 mVrms, RCA: 300 mVrms
Output Level 5 Vrms (Line Output)
Physical Dimensions 8.6 x 1.7 x 11.9″ / 21.9 x 4.3 x 30.3 cm
Weight 7.1 lb / 3.2 kg
