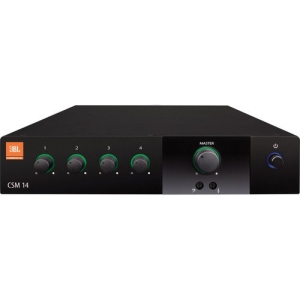

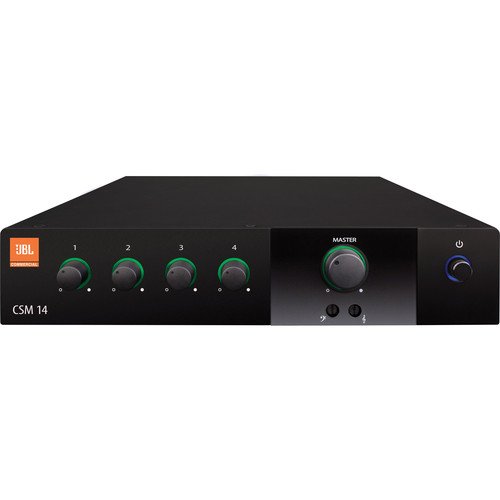

JBL CSM 14 Commercial Audio Mixer – 4 Inputs/1 Output

JBL Professional

AED 2139.99 inc VAT.

The JBL CSM 14 Commercial Series Mixer features four inputs and one output, integrating technology from multiple Harman brands. Designed for applications in schools, hospitals, restaurants, and gyms, it includes Euroblock mic/line connectors, RCA inputs, and illuminated rings for volume, bass, and treble controls. The back panel has +27V phantom power and 70 Hz HPF switches. Additional features include RJ45 connectors for CSR-V in-wall controls (sold separately) and a universal power supply. Built to Harman’s GreenEdge standards, it is lightweight, space-saving, and RoHS compliant.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CSM14 Categories: , , Brand:

Description

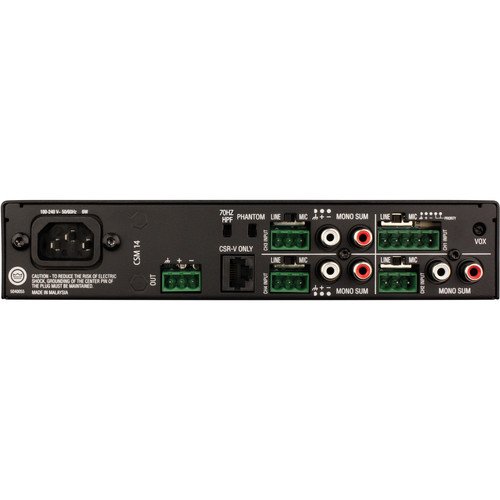

The CSM 14 – Four Inputs/One Output Commercial Series Mixer by JBL is designed to offer outstanding versatility and superior audio performance for various professional settings. With its incorporation of advanced technologies from multiple Harman brands, it can be customized to fit the needs of schools, hospitals, restaurants, fitness facilities, and more. The mixer provides Euroblock type mic/line input and output connectors along with unbalanced RCA inputs. Enhanced usability is achieved through illuminated rings for volume, bass, and treble adjustments, visible even in low-light conditions. Conveniently positioned on the back of the mixer are a +27V phantom power switch and a 70 Hz high-pass filter switch for added functionality.

The inclusion of RJ45 connectors allows compatibility with JBL’s CSR-V in-wall volume controls (sold separately). Its universal power supply accommodates AC voltages from 100 to 240 VAC, 50/60 Hz, making it adaptable to various environments. The CSM 14 is constructed following Harman’s GreenEdge environmental standards, combining energy efficiency with a compact, lightweight design that adheres to RoHS regulations.

Specifications

Specification Details
Form Factor/Type Tabletop
Number of Channels 4 Input / 1 Output
Frequency Response 20 Hz to 20 kHz ±1 dB
Input Sensitivity Mic: 3 mVrms, Line: 300 mVrms, RCA: 300 mVrms
I/O Impedance Mic Input: 400 Ohms, Line Input: 20 Kilohms, RCA Input: 50 Kilohms
Output Level Line Output: 5 Vrms (10-Kilohm Load)
Signal-to-Noise Ratio (SNR) > 90 dB
Total Harmonic Distortion (THD) 0.05%
Crosstalk > 70 dB
EQ Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Ducking/Muting Yes
Phantom Power 27 VDC
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature 68 to 185°F / -20 to 85°C
Operating Humidity 0 to 95% (Non-Condensing)
Dimensions 17.2 x 1.7 x 11.9″ / 437.0 x 43.3 x 303.4 mm
Weight 4.3 lb / 2 kg
Package Weight 7.36 lb
Box Dimensions (LxWxH) 16.4 x 12.1 x 4.95″
