JBL CSA1120Z Commercial Series 120W Amplifier

JBL Professional

AED 2982 inc VAT.

The JBL CSA 1120Z Audio Amplifier (1x 120W) offers powerful and compact audio amplification for installed applications, utilizing a universal switch-mode power supply and Crown’s DriveCore technology. It supports 70/100V installations, includes RJ45 for CSR-V volume controls, and features mono sum RCA and Euroblock inputs. Outputs are via Euroblock connectors, with illuminated knobs for visual feedback, and operates on 100-240 VAC. The amplifier aligns with HARMAN’s GreenEdge initiative for environmental sustainability.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CSA1120Z Categories: , , Brand:

Description

JBL CSA 1120Z Audio Amplifier (1x 120W)

The JBL CSA 1120Z Audio Amplifier offers a powerful solution for professional audio applications. Utilizing Crown’s DriveCore technology, this amplifier delivers robust and reliable sound amplification across varied settings.

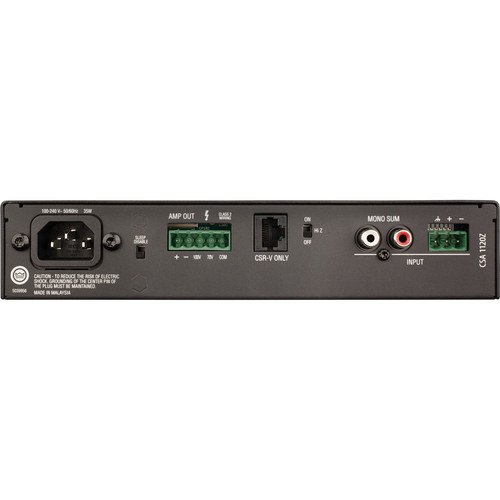

This versatile unit is equipped to handle 70 and 100V installations, and includes an RJ45 connector for CSR-V in-wall volume controls. Inputs include mono sum RCA and Euroblock connectors, with Euroblock connectors also used for outputs. Visual feedback is provided through illuminated knobs. Its universal power supply supports AC voltages from 100 to 240 VAC, 50/60 Hz. Additionally, the amplifier aligns with HARMAN’s GreenEdge environmental initiative.

Technical Specifications

Specification Details
Number of Channels 1
Power Rating 120 W (1 kHz, 0.5% THD)
Load Impedance / Voltage 4 Ohms (Minimum), 70 / 100 V
Frequency Response 20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Input Sensitivity 1.4 Vrms
Input Impedance Euroblock: 20 kOhms (Balanced), RCA: 50 kOhms
SNR > 100 dB
THD < 0.5%
Crosstalk > 70 dB
EQ 2-Band
I/O 1 x 2RCA Summed-Mono Input, 1 x Euroblock Input, 1 x Euroblock Output
Digital I/O 1 x RJ45 (Control)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Temperature -4 to 185°F / -20 to 85°C
Dimensions 8.6 x 11.9 x 1.7″ / 218.5 x 303.4 x 43.3 mm
Weight 6.9 lb / 3.1 kg
Package Weight 10.7 lb
Box Dimensions (LxWxH) 16.2 x 12 x 5.4″
