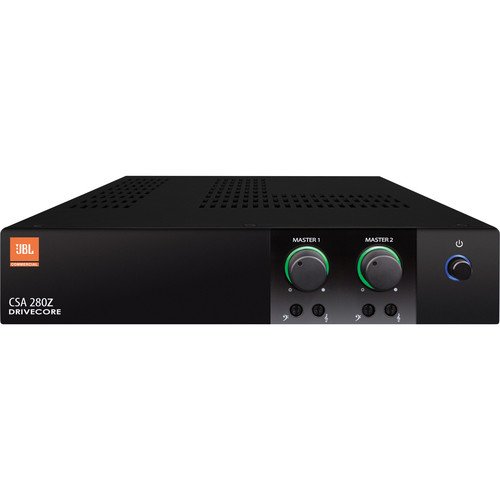

JBL CSA280Z Commercial Series 2-Channel 80W Audio Amplifier

JBL Professional

AED 3110 inc VAT.

The JBL CSA 280Z Audio Amplifier (2x 80W) offers a compact solution for installed applications with its universal switch-mode power supply and Crown’s DriveCore technology, ensuring reliable sound amplification. It supports 70 and 100V installations, includes RJ45 connectors for CSR-V volume controls, and provides inputs via mono sum RCA connectors and Euroblock, with outputs through Euroblock connectors. Illuminated knobs offer visual feedback, and the universal power supply handles AC voltages from 100 to 240 VAC, 50/60 Hz. The amplifier also meets HARMAN’s GreenEdge environmental standards.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CSA280Z Categories: , , Brand:

Description

JBL CSA 280Z Audio Amplifier – Key Features

The JBL CSA 280Z Audio Amplifier (2x 80W) provides a compact and powerful amplification solution for installed applications. The unit utilizes a universal switch-mode power supply and Crown’s DriveCore technology to deliver reliable and efficient sound amplification.

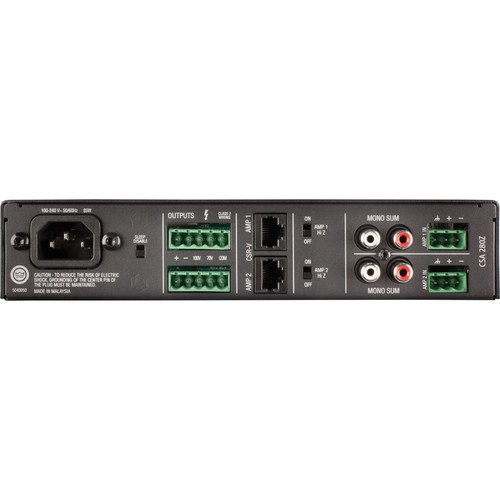

The unit supports both 70 and 100V installations out of the box. It includes 2 x RJ45 connectors for use with the company’s CSR-V in-wall volume controls. Inputs are provided by mono sum RCA connectors and Euroblock. Outputs are provided by Euroblock connectors. Illuminated knobs provide visual feedback, and the universal power supply allows the amplifier to accept AC voltages from 100 to 240 VAC, 50/60 Hz. The amp also fulfills HARMAN’s GreenEdge environmental initiative.

Specifications

Specification Details
Number of Channels 2
Power Rating 80 W (1 kHz, 0.5% THD) at 4 and 8 Ohms
Load Impedance / Voltage 4 Ohms (Minimum), 70 / 100 V
Frequency Response 20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Input Sensitivity 1.4 Vrms
Input Impedance 20 Kilohms (Balanced, Euroblock), 50 Kilohms (RCA)
SNR > 100 dB
THD < 0.5%
Crosstalk > 70 dB
EQ 2-Band
Connectivity I/O 1 x 2RCA Summed-Mono Input, 2 x Euroblock Input, 2 x Euroblock 70/100 V Output
Digital I/O 2 x RJ45 (Control)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Temperature -4 to 185°F / -20 to 85°C
Dimensions 8.6 x 11.9 x 1.7″ / 218.5 x 303.4 x 43.3 mm
Weight 8.8 lb / 4 kg
Package Weight 12 lb
Box Dimensions (LxWxH) 16.3 x 12.2 x 4.9″
