Commercial Amplifiers

JBL CSA240Z Commercial Series 2x40W Audio Amplifier

JBL Professional

AED 2340 inc VAT.

The JBL CSA 240Z Audio Amplifier offers 2x 40W channels, using Crown’s DriveCore technology and a universal switch-mode power supply for efficient sound amplification. Ideal for 70 and 100V installations, it includes connections for CSR-V volume controls, mono sum RCA and Euroblock inputs, and Euroblock outputs. Illuminated knobs and a 100-240V AC universal power supply enhance usability, while meeting HARMAN’s GreenEdge standards.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CSA240Z Categories: , , Brand:

Description

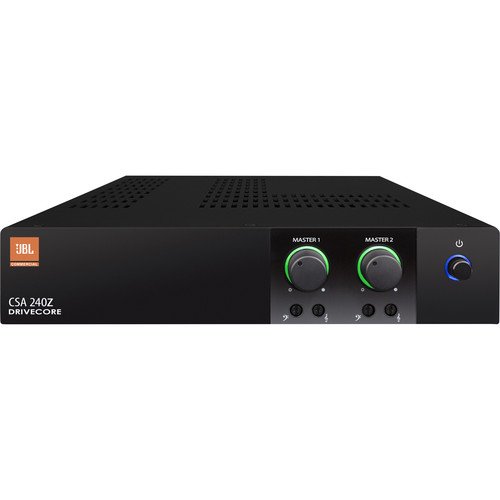

JBL CSA 240Z Audio Amplifier (2x 40W)

Description

The JBL CSA 240Z Audio Amplifier offers a compact yet robust solution for installed sound applications. Powered by a universal switch-mode power supply and enhanced with Crown’s DriveCore technology, this amplifier ensures efficient and reliable sound amplification.

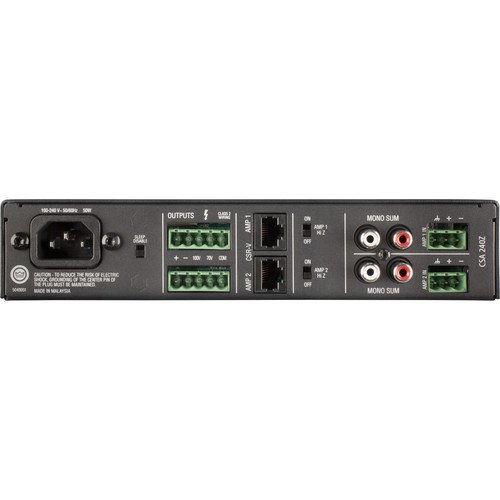

Designed for versatility, the unit supports both 70V and 100V installations right out of the box. It features 2 x RJ45 connectors for easy integration with CSR-V in-wall volume controls and incorporates inputs via mono sum RCA connectors and Euroblock, with corresponding outputs through Euroblock connectors. Illuminated knobs provide user-friendly visual feedback.

Specifications

Number of Channels 2
Power Rating 300 W (1 kHz, 0.5% THD at 4/8 Ohms)
Load Impedance / Voltage 4 Ohms (Minimum), 70 / 100 V
Frequency Response 20 Hz to 20 kHz ±1 dB (8 Ohms)
Input Sensitivity 775 mVrms (Line, Balanced, at 8 Ohms), 300 mV (RCA, at 8 Ohms)
Input Impedance 20 Kilohms (Euroblock, Balanced), 10 Kilohms (RCA)
Signal to Noise Ratio (SNR) > 97 dBA
Total Harmonic Distortion (THD) < 0.5% (Full Range, at Rated Power)
Crosstalk < -70 dBA (1 kHz)
EQ 2-Band
I/O Euroblock Balanced/Unbalanced Input, 2RCA Summed-Mono Input, Terminal Block Output
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Temperature -4 to 185°F / -20 to 85°C
Dimensions 17.0 x 11.0 x 3.5 inches / 43.0 x 27.0 x 8.9 cm
Weight 17.8 lb / 8.1 kg
Package Weight 20 lb
Box Dimensions 22 x 15 x 6 inches
