Commercial Amplifiers

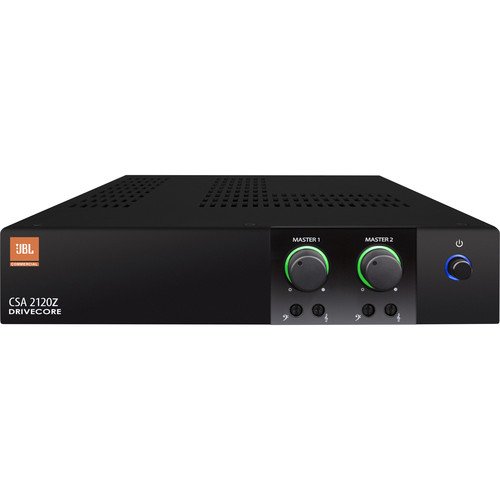

JBL CSA 2120Z Commercial Audio Amplifier – 2x120W

JBL Professional

AED 3810 inc VAT.

The JBL CSA 2120Z Audio Amplifier (2x 120W) delivers reliable sound amplification for installed applications with its universal switch-mode power supply and Crown’s DriveCore technology. Supporting both 70V and 100V installations, it features 2 x RJ45 connectors for CSR-V in-wall volume controls, mono sum RCA input, and Euroblock outputs. Illuminated knobs provide visual feedback, while the amplifier accepts AC voltages from 100 to 240 VAC, 50/60 Hz, aligning with HARMAN’s GreenEdge initiative.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CSA2120Z Categories: , , Brand:

Description

JBL CSA 2120Z Audio Amplifier (2x 120W) – Key Features

The JBL CSA 2120Z Audio Amplifier is a compact and powerful solution for installed sound applications. Utilizing a universal switch-mode power supply and Crown’s DriveCore technology, this amplifier delivers reliable and efficient sound amplification. It is built to support both 70V and 100V installations directly out of the box. The amplifier’s user-friendly design includes illuminated knobs for easy visual feedback and is in line with HARMAN’s GreenEdge environmental initiative.

Specification Details
Number of Channels 2
Power Rating 120 W (1 kHz, 0.5% THD) @ 4 Ohms / 8 Ohms
Load Impedance / Voltage 4 Ohms (Minimum), 70 V, 100 V
Frequency Response 20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Input Sensitivity 1.4 Vrms
Input Impedance 20 Kilohms (Balanced) Euroblock, 50 Kilohms RCA
SNR > 100 dB
THD < 0.5%
Crosstalk > 70 dB
EQ 2-Band

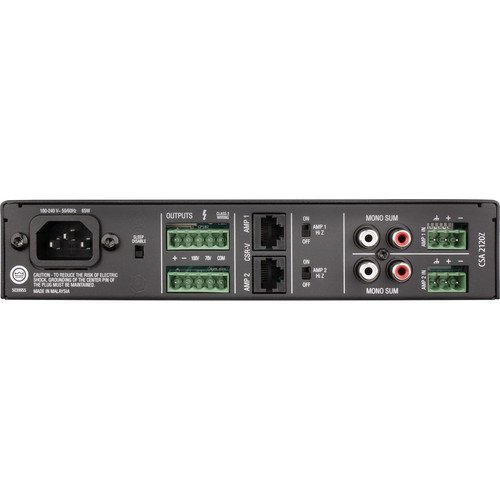

I/O 1 x 2RCA Summed-Mono Input, 2 x Euroblock Input, 2 x Euroblock 70/100 V Output
Digital I/O 2 x RJ45 (Control)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Temperature -4 to 185°F / -20 to 85°C
Dimensions 8.6 x 11.9 x 1.7″ / 218.5 x 303.4 x 43.3 mm
Weight 8.8 lb / 4 kg
Package Weight 12.015 lb
Box Dimensions (LxWxH) 16.45 x 12.15 x 4.9″
