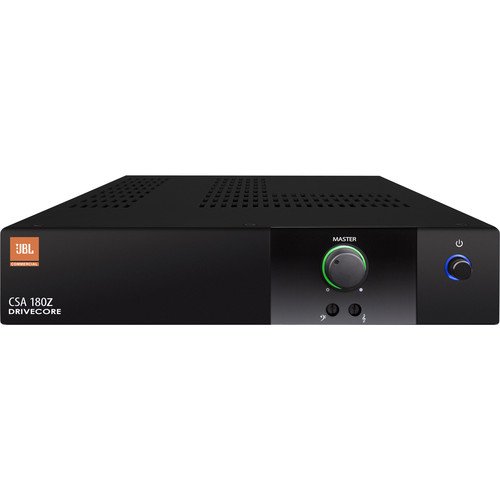

JBL CSA 180Z Commercial Series Amplifier 80W

JBL Professional

AED 2310 inc VAT.

The JBL CSA 180Z Audio Amplifier (1x 80W) offers a compact and efficient solution for installed audio applications, featuring Crown’s DriveCore technology and a universal switch-mode power supply. It supports 70V and 100V installations, includes an RJ45 connector for CSR-V volume controls, and provides mono sum RCA, Euroblock inputs, and Euroblock outputs. Visual feedback is provided by illuminated knobs, and it operates on 100-240 VAC, 50/60 Hz, complying with HARMAN’s GreenEdge environmental standards.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CSA180Z Categories: , , Brand:

Description

JBL CSA 180Z Audio Amplifier (1x 80W) – Key Features

The JBL CSA 180Z Audio Amplifier offers a powerful and compact solution for audio amplification in installed applications. Utilizing Crown’s DriveCore technology and a universal switch-mode power supply, this amplifier ensures efficient and reliable performance.

Supporting both 70V and 100V installations directly, the unit features a variety of input and output options. It is equipped with one RJ45 connector for connecting to JBL’s CSR-V in-wall volume controls, mono sum RCA connectors for input, and Euroblock connectors for output. Illuminated knobs provide visual feedback during operation, and the universal power supply allows flexible power source compatibility from 100 to 240 VAC, 50/60 Hz. Additionally, the amp is designed to adhere to HARMAN’s GreenEdge environmental initiative.

Technical Specifications

Specification Details
Number of Channels 1
Power Rating 4 Ohms / 8 Ohms: 80 W (1 kHz, 0.5% THD)
Load Impedance / Voltage 4 Ohms (Minimum), 70 / 100 V
Frequency Response 20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Input Sensitivity 1.4 Vrms
Input Impedance Euroblock: 20 Kilohms (Balanced), RCA: 50 Kilohms
SNR > 100 dB
THD < 0.5%
Crosstalk > 70 dB
EQ 2-Band

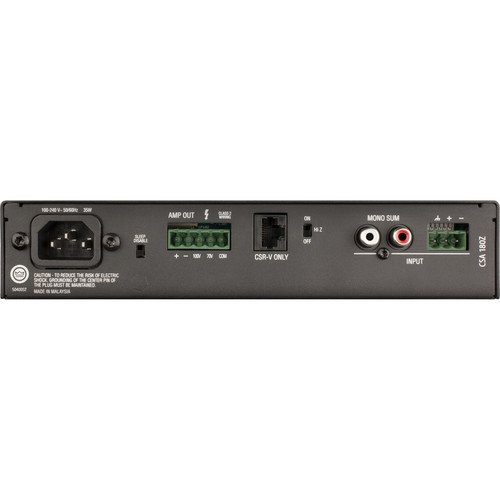

Connectivity 1 x 2RCA Summed-Mono Input, 1 x Euroblock Input, 1 x Euroblock Output, 1 x RJ45 (Control)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Temperature -4 to 185°F / -20 to 85°C
Dimensions 8.6 x 11.9 x 1.7″ / 218.5 x 303.4 x 43.3 mm
Weight 6.9 lb / 3.1 kg
Package Weight 10.4 lb
Box Dimensions (LxWxH) 16 x 12 x 5″
