JBL CSA 140Z 40W Commercial Series Amplifier Audio

JBL Professional

AED 1309.99 inc VAT.

The JBL CSA 140Z Audio Amplifier (1x 40W) offers compact and efficient amplification with a universal power supply and Crown’s DriveCore technology, suitable for 70 and 100V installations. It features RJ45 for CSR-V volume controls, mono sum RCA and Euroblock inputs, and Euroblock outputs. It operates on 100 to 240 VAC, 50/60 Hz and supports HARMAN’s GreenEdge initiative.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CSA140Z Categories: , , Brand:

Description

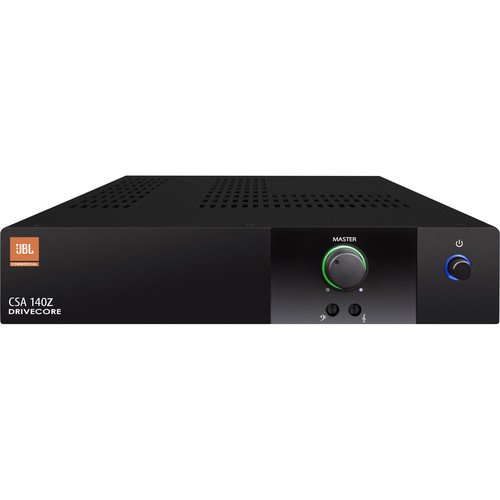

JBL CSA 140Z Audio Amplifier (1x 40W)

The JBL CSA 140Z Audio Amplifier (1x 40W) offers a versatile and powerful solution for amplification in installed sound setups. Integrating Crown’s DriveCore technology and a universal switch-mode power supply, it delivers dependable and efficient sound amplification for various applications.

This amplifier is compatible with both 70V and 100V installations, and it features 1 x RJ45 connector for CSR-V in-wall volume controls. Equipped with mono sum RCA connectors for inputs and Euroblock connectors for outputs, it ensures robust connectivity. Illuminated knobs enhance usability, and its universal power supply supports AC voltages from 100 to 240 VAC, 50/60 Hz.

Key Specifications

Specification Details
Number of Channels 1
Power Rating 40 W (1 kHz, 0.5% THD)
Load Impedance / Voltage 4 Ohms (Minimum), 70 / 100 V
Frequency Response 20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Input Sensitivity 1.4 Vrms
Input Impedance Euroblock: 20 Kilohms (Balanced), RCA: 50 Kilohms
SNR > 100 dB
THD < 0.5%
Crosstalk > 70 dB
EQ 2-Band

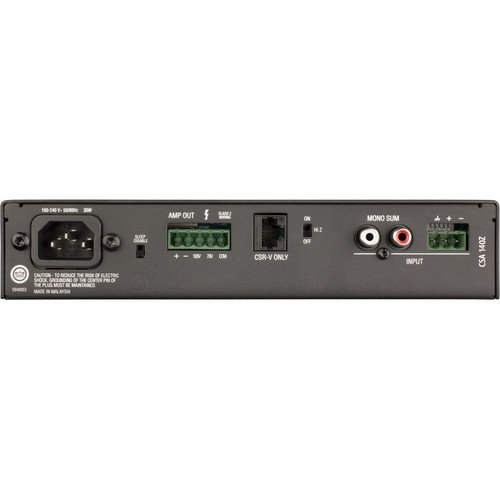

I/O 1 x 2RCA Summed-Mono Input, 1 x Euroblock Input, 1 x Euroblock Output
Digital I/O 1 x RJ45 (Control)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Temperature -4 to 185°F / -20 to 85°C
Dimensions 8.6 x 11.9 x 1.7″ / 218.5 x 303.4 x 43.3 mm
Weight 6.3 lb / 2.8 kg
Package Weight 10 lb
Box Dimensions (LxWxH) 16.2 x 12.1 x 5″
