JBL CRF2 Cinema Speaker Reflector Horn

AED 21987.87 inc VAT.

The CRF2 is intended for use in solid screen cinema settings, including Samsung Onyx Cinema LED Solutions. It mounts beneath the first or second surround, delivering band-limited high-frequency content from Left/Center/Right screen channels. The unit features a flush-mount horn design and patented Dual Dissimilar Arraying technology for consistent high-frequency sound distribution.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

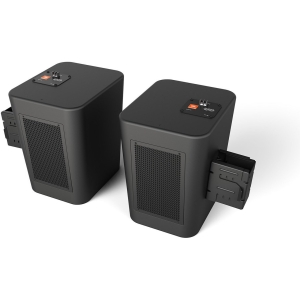

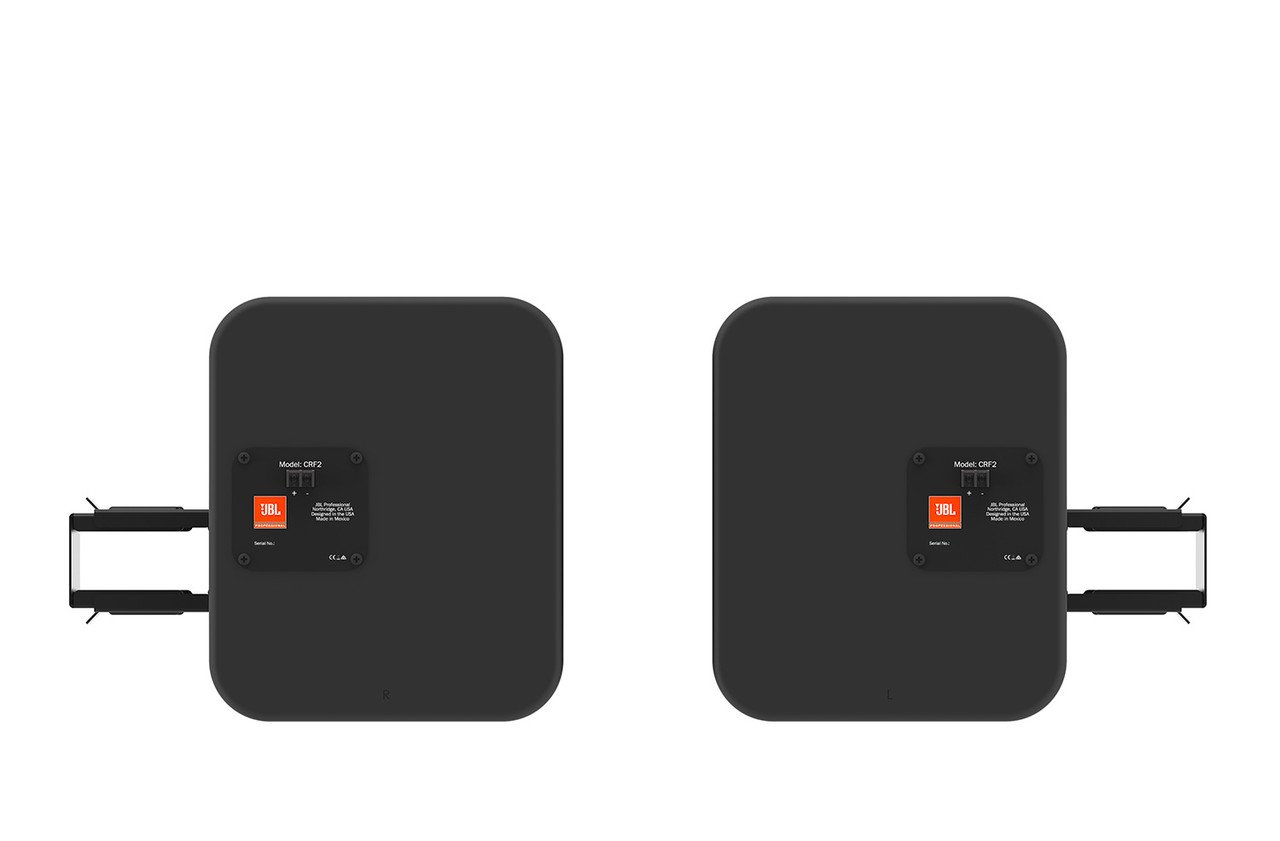

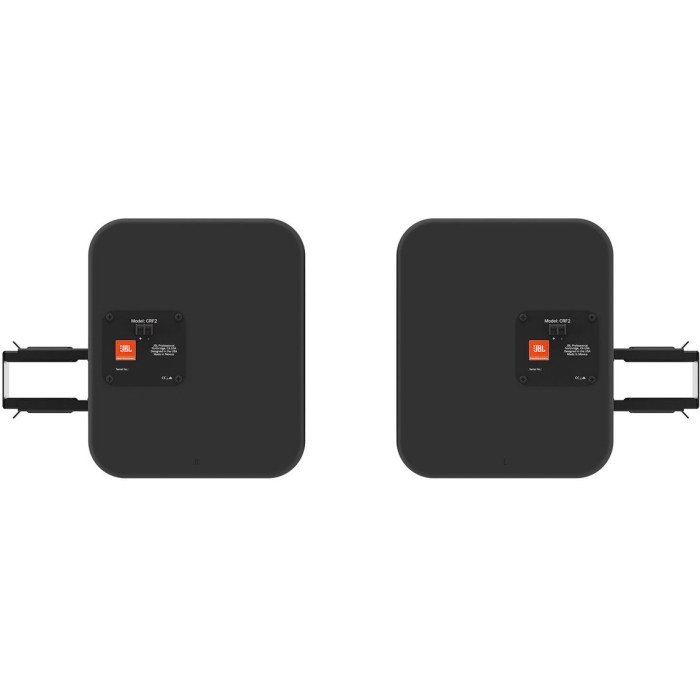

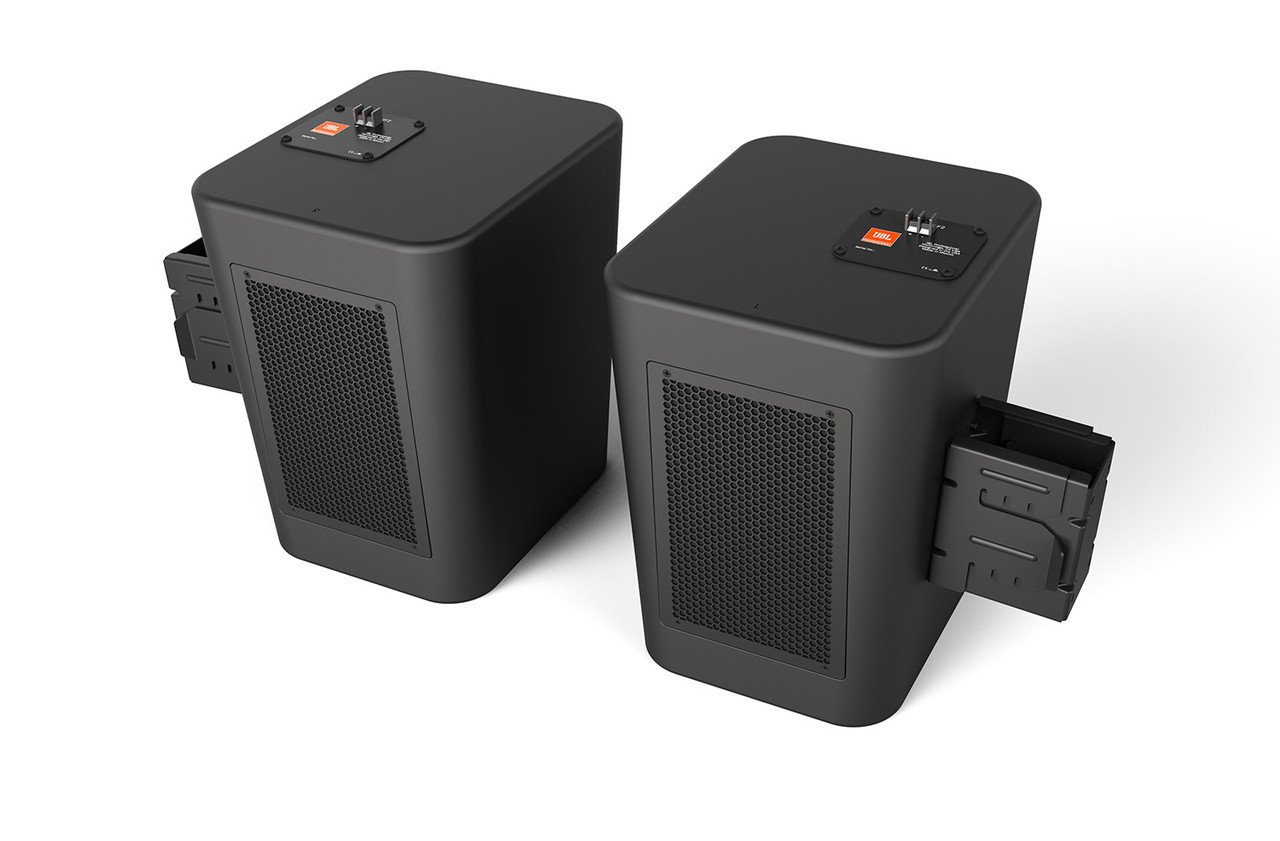

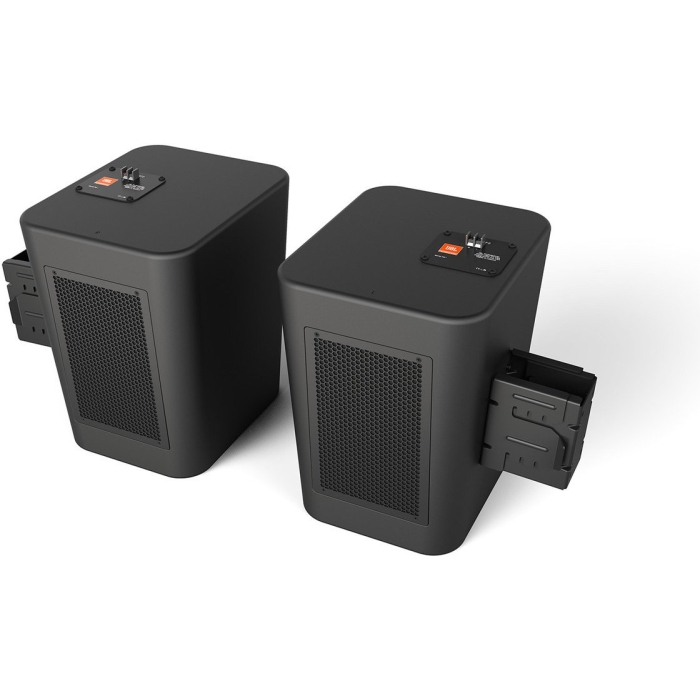

CRF2 High-Frequency Cinema Speaker

The CRF2 is uniquely engineered for solid screen cinema setups, including the Samsung Onyx Cinema LED Solution. Crafted for under-surround placement, it delivers band-limited high-frequency audio derived from the primary Left, Center, and Right screen channels. The CRF2’s innovative horn design allows for flush wall-mounting and utilizes the proprietary Dual Dissimilar Arraying technology, ensuring precise and even high-frequency sound coverage.

Features

Dual Dissimilar Arraying coverage for enhanced high-frequency distribution
Incorporates the same HF driver as the 3733 series
Compatible with 9300/9310 Surrounds mounting design
Sold in pairs for Left and Right channels

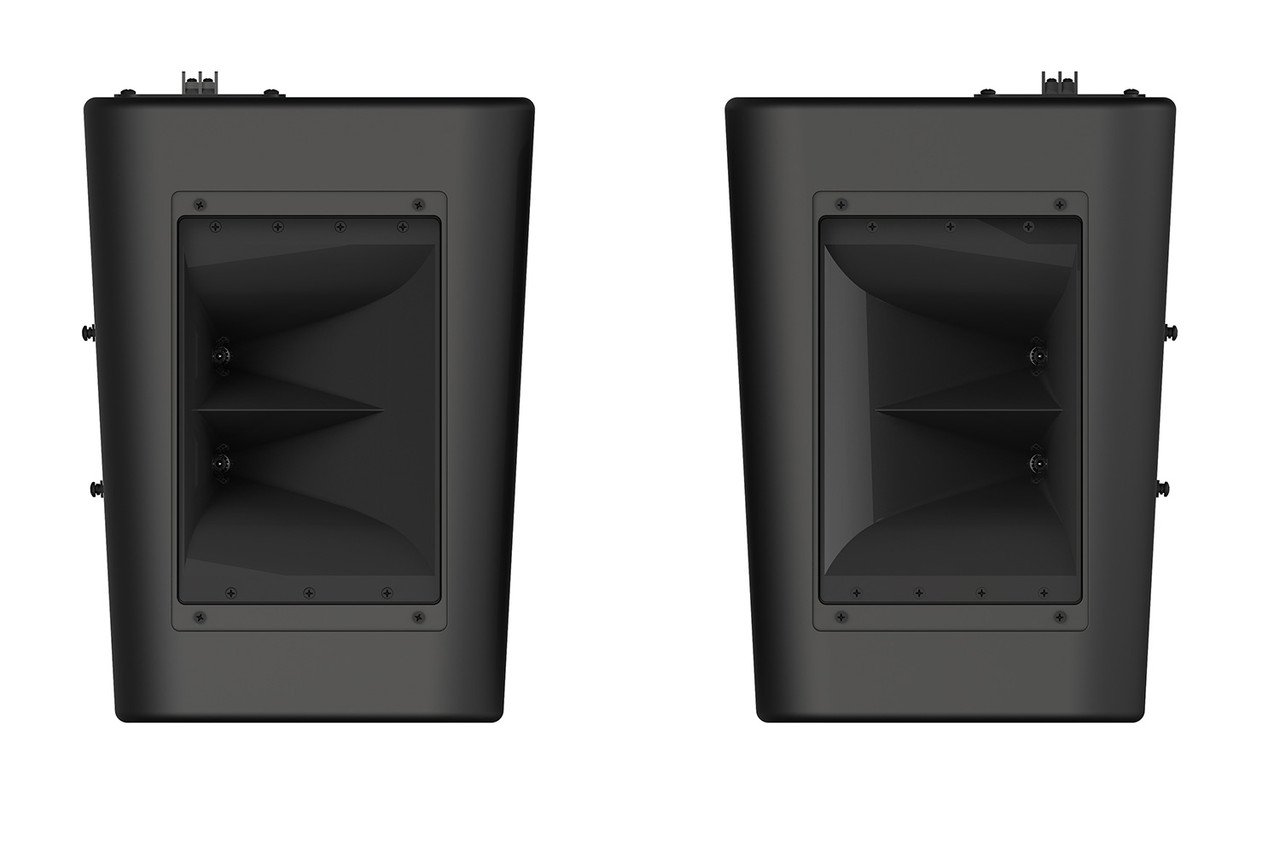

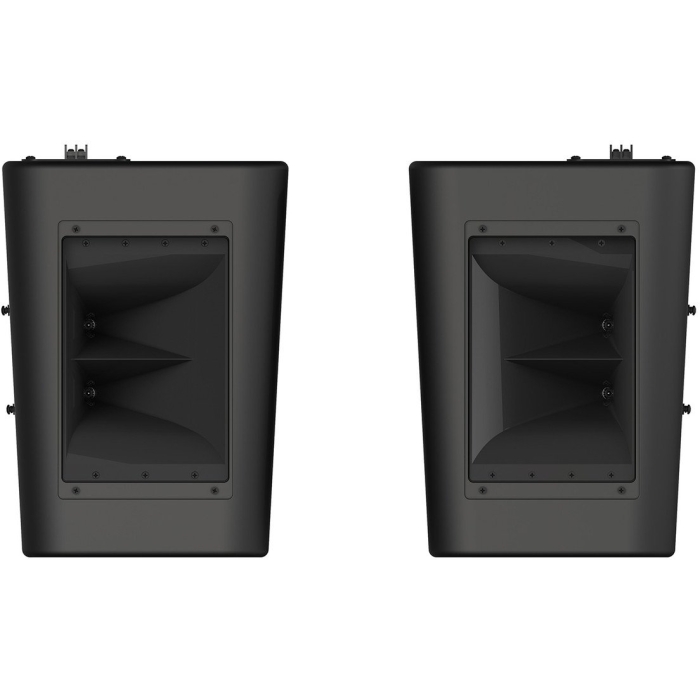

Horn designed with a 30-degree angle for flush mounting
Works seamlessly with the 2520 mounting bracket

Specifications

Specification	Details
Drivers	2 x 2415J-XP 37.5 mm (1.5 in) compression driver
Rated Impedance	8 Ohms
Minimum Impedance	6.65 Ohms @ 20kHz
Frequency Response (-3dB)	2.33kHz – 11.2kHz
Frequency Response (-10dB)	2.09kHz – 23kHz
Input Power Rating	150 Watts AES 100 hours; 300 Watts recommended amplifier
Sensitivity	102 dB, 2.83V @ 1m (3.3 ft)
Max Dimensions (H x W x D)	508 mm x 439 mm x 368 mm (20 in x 17.3 in x 14.5 in)
Net Weight (each)	11.3 kg (25 lb)
Shipping Weight (2 units)	27.2 kg (60 lb)
