Name: JBL Control 85M Two-Way 5.25" Coaxial Landscape Speaker (Single)
Brand: JBL Professional
SKU: CONTROL 85M
Price: 1370.00 AED
Availability: InStock

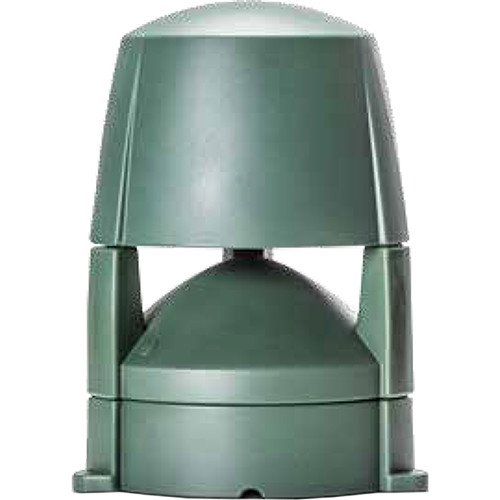

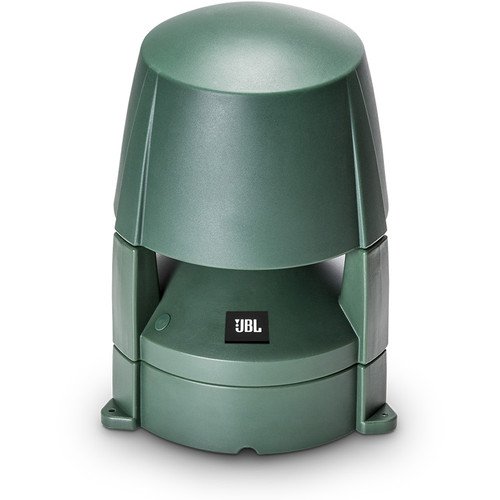

JBL Control 85M Two-Way 5.25″ Coaxial Landscape Speaker (Single)

AED 1370 inc VAT.

The JBL Control 85M is a weather-resistant, mushroom-shaped coaxial speaker designed for outdoor use, providing 360° sound coverage and a frequency range of 55 Hz to 18 kHz. Suitable for various settings such as shopping malls, theme parks, sports venues, and hospitality facilities, the speaker’s compact, hunter green enclosure is durable against outdoor elements and lawn care equipment, blending seamlessly into the environment.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

JBL Control 85M Outdoor Coaxial Speaker

Designed for outdoor applications, the Control 85M from JBL is a weather-resistant mushroom-shaped coaxial speaker offering 360° coverage and a broad frequency range of 55 Hz to 18 kHz. Mounted on or in the ground, it provides quality music and paging in a variety of locations including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality facilities, and entrance ways. The speaker’s compact enclosure is unobtrusive and blends in with its surroundings, making it a versatile and durable choice for outdoor sound installations.

Key Features

Feature	Details
Weather-resistant driver	5.25″ weather-resistant driver
Weather-resistant tweeter	0.75″ soft-dome weather-resistant tweeter
Power Handling	80W pink noise power handling (160W program) in direct 8-Ohm setting, plus built-in 30W 70/100V multi-tap transformer
Enclosure Material	Tough polyethylene weather-resistant enclosure maintaining its color even when scraped or scratched
Wiring Protection	Fully isolated center chamber for wiring protection
Sound Character	High-fidelity sound with a broad frequency range of 55 Hz to 18 kHz

Specifications

Frequency Response (-10 dB)	55 Hz – 18 kHz
Power Rating	160 W continuous program (2 h) 80 W (320 W peak), continuous pink noise (2 h) 45 W (180 W peak), continuous pink noise (100 h)
Transformer Taps	70 V: 30, 15, 7.5, and 3.8 W 100 V: 30, 15, and 7.5 W
Frequency Response ± 3dB	65 Hz – 16 kHz
Maximum Input Voltage	23.3 V
Sensitivity	86 dB, 1 W at 3.28′ / 1 m (average 80 Hz – 16 kHz)
Nominal Coverage Angle	360° horizontal, 160° vertical
Directivity	Q Factor: 2.2
Directivity Index	3.4 dB
Maximum SPL	105 dB at 3.28′ / 1 m
Nominal Impedance	8 Ohms (at 8-Ohm setting)
Insertion Loss	Up to 1.0 dB at any tap setting
Thru	8 Ohms nominal
Crossover Type	2nd order LPF on LF and 2nd order HPF on HF
Recommended Protective High-Pass	65 Hz for 8-Ohm operation, 24 dB/octave 60 Hz for 30 W tap, 24 dB/octave 50 Hz for 15, 7.5, and 3.7 W taps, 24 dB/octave
Low-Frequency Driver	5.25″ diameter LF driver, Kapton former, 1.4″ voice coil, polypropylene cone and polyurethane surround
High-Frequency Driver	0.75″ diameter HF driver polyetherimide (PEI) dome
Enclosure Material	LDPE polyethylene plastic, 0.23″ wall thickness, UL94V-0 rated
Grille	Powder-coated stainless steel
Environmental	IP-55 rating per IEC529 (dust protected and protected against jets of water) Exceeds MIL-STD 810 for humidity, salt spray, temperature & UV Passes MIL-STD 202F for salt spray Enclosure UL94V0 rated
Agency Rating	UL1480, transformer UL recognized per UL1876, ROHS compliant
Terminals	Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section)

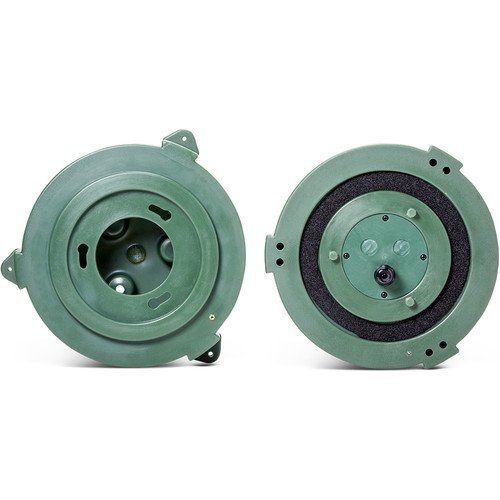

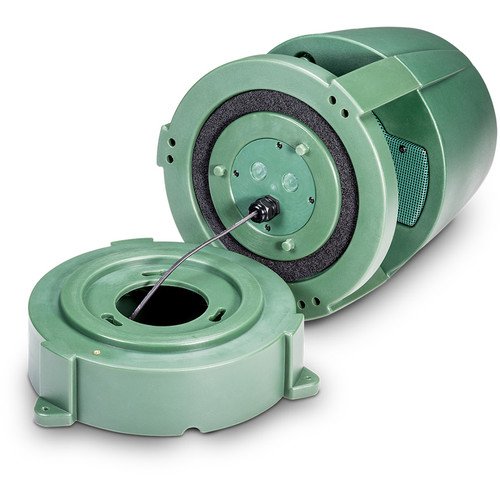

Wiring	Water ingress protected by two stages of gland nuts, one outside of enclosure and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 0.16″ and 0.35″.
Dimensions	17.0 x 11.5 x 11.5″ / 43.2 x 29.1 x 29.1 cm
Weight	12 lb / 5.5 kg
