JBL Control 47HC 6.5″ 2-Way 150W Coaxial High-Ceiling Loudspeaker (White) – Single Piece

AED 1926 inc VAT.

The Control 47HC loudspeaker offers a narrow 75° coverage pattern, making it ideal for highly reverberant and high ceiling spaces. This focused design minimizes sound reflection and arrival anomalies, enhancing speech intelligibility. Sharing the same sonic characteristics as the Control 47C/T, it is perfect for use in busy transit centers or large convention halls.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

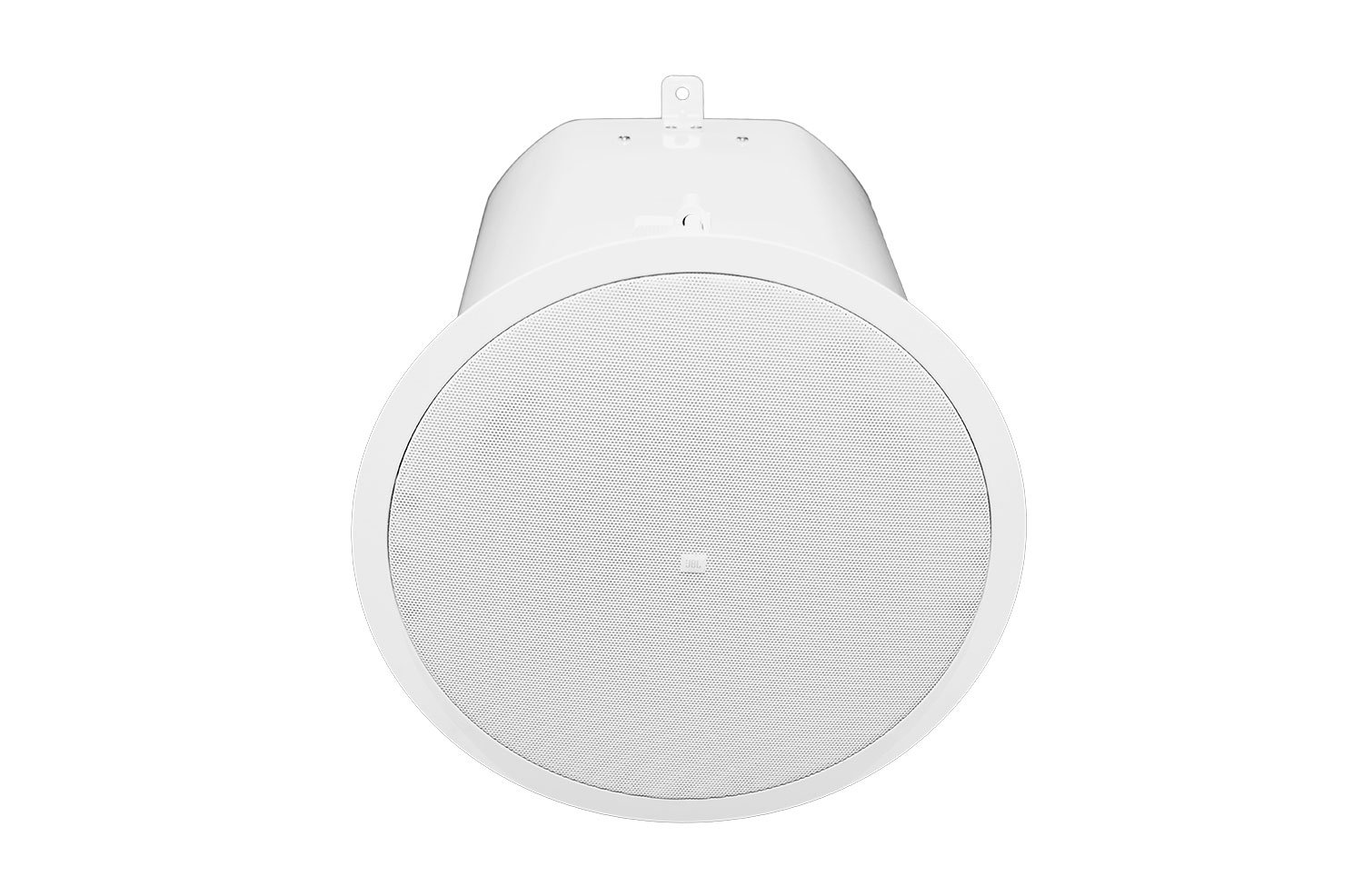

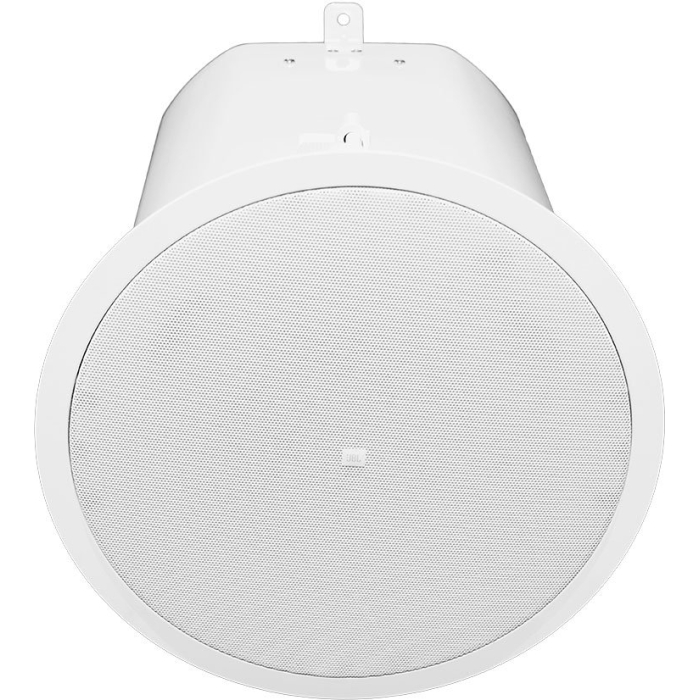

Control 47HC High Ceiling Loudspeaker

The Control 47HC is a specialized loudspeaker designed with a narrow 75° coverage pattern, making it an optimal choice for highly reverberant spaces and high ceiling environments. This focused pattern minimizes sound reflections from room surfaces and manages time arrival discrepancies from adjacent loudspeakers, enhancing speech clarity and overall sound quality. With the same sonic characteristics as the Control 47C/T, it is well-suited for bustling transit hubs and expansive convention center spaces.

Key Features

Defined narrow coverage pattern for high ceilings
Enhanced sound quality in reverberant spaces
Proprietary Conical RBI® Technology for uniform pattern control
Elegant design to complement any decor

Specifications

Specification	Details
Frequency Range	55 Hz – 17 kHz
Power Rating	150 Watts Continuous Program Power / 75 Watts Continuous Pink Noise (300W peak), 100 hrs
Sensitivity	93 dB (1kHz – 16 kHz)
Transformer Taps	60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass
Coverage Angle	75° conical, constant directivity
Impedance	8 ohms (in bypass mode)

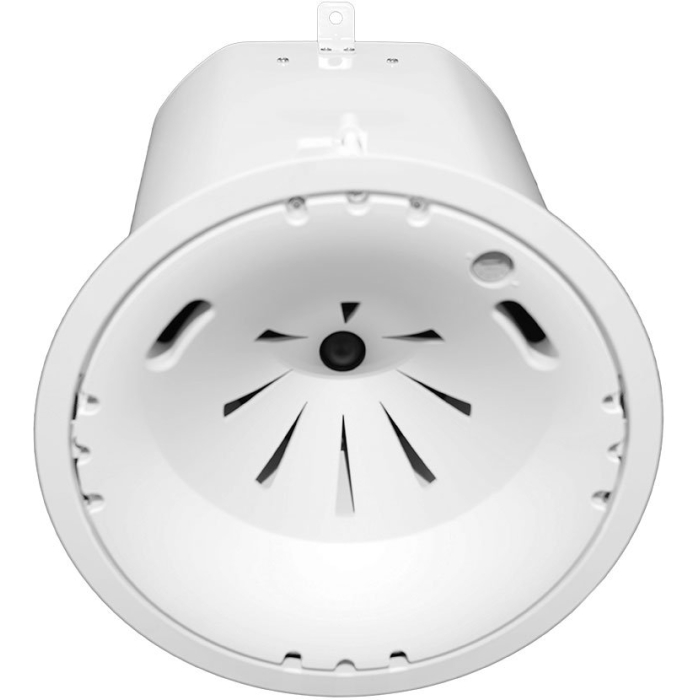

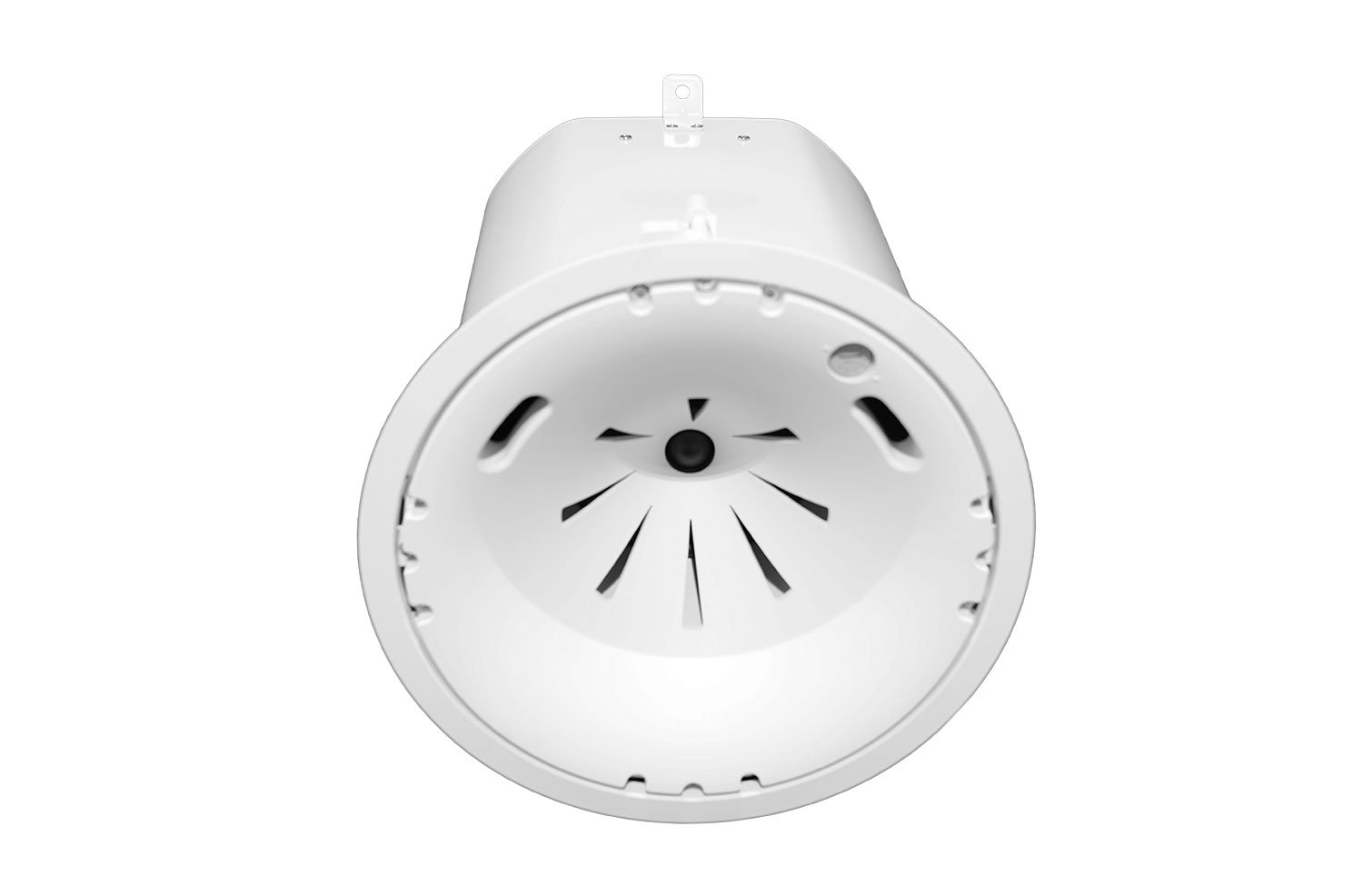

Drivers	LF Driver: 165 mm (6.5 in), HF Driver: 25 mm (1 in)

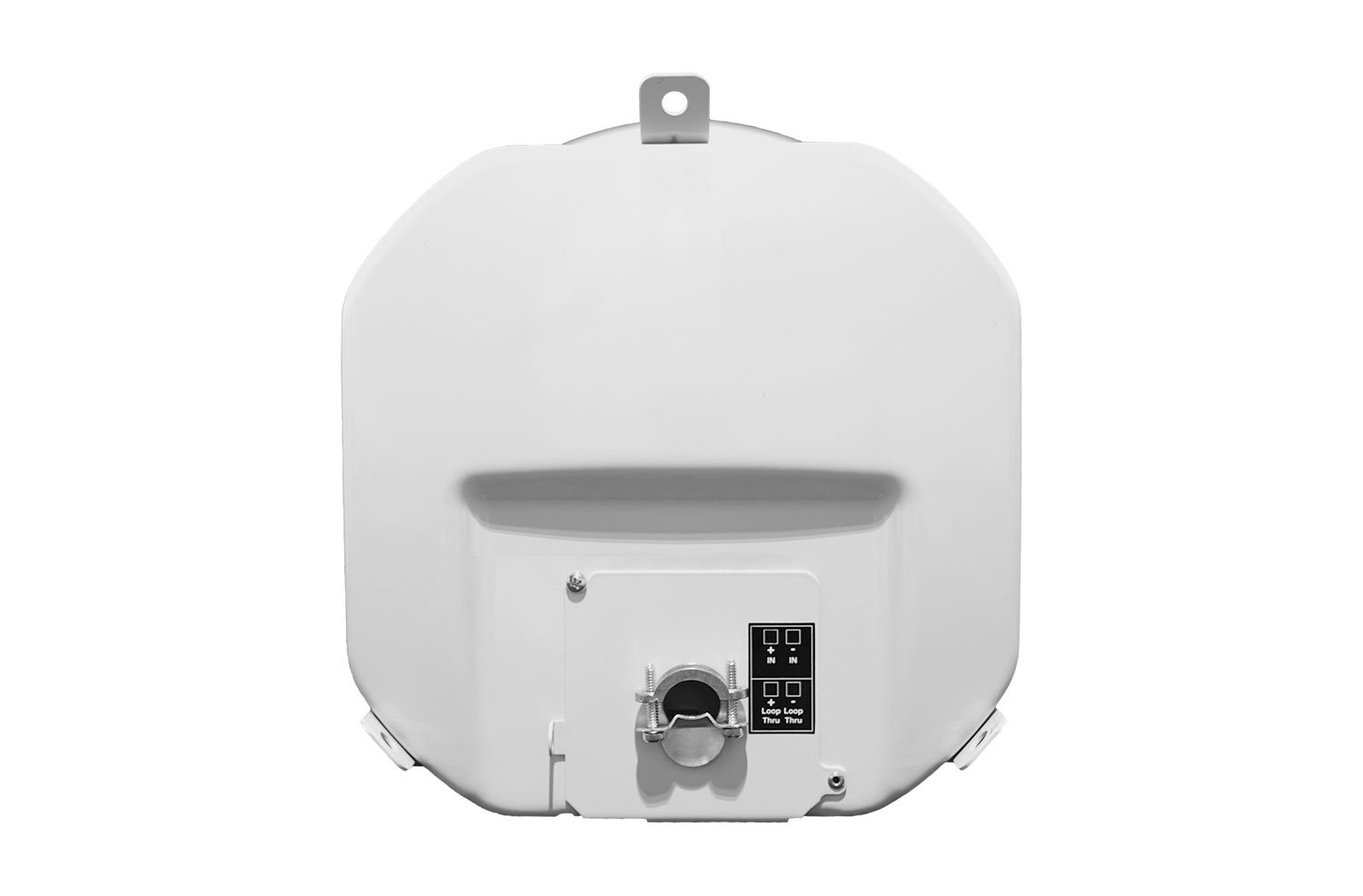

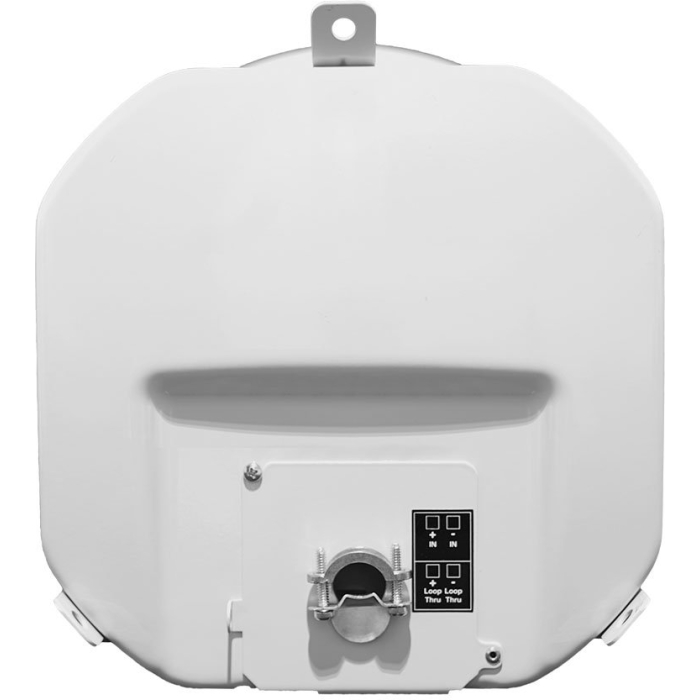

Input Connectors	Two removable locking 2-pin connectors with screw-down terminals
Included Accessories	C-rings, tile rails, paint shield, cutout template, grille
Suspension Tabs	Three, on top panel
Dimensions (Diameter x Depth)	332 mm Diameter x 351 mm Depth (13.1 in x 13.8 in)
Maximum SPL (1m)	112 dB (low-impedance, 118 dB peak), 111 dB (top 70V/100V tap)
Color	White
Safety Agency	Certified for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. UL Listed, Signaling Speaker. Transformer UL registered per UL1876. Compliant with IEC60849/EN60849.
Backcan	Formed steel (included “blind-mount”)
Baffle/Rim	ABS baffle with UL94-V0 flame class fire rating
Ceiling Cutout Size	307 mm Diameter (12.1 in) diameter (cardboard cutout template included)
Optional Accessories	MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket
