Ceiling Speakers

JBL Professional In-Ceiling Subwoofer Control 40CS/T 8in 200W (White)

JBL Professional

AED 2,230 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CONTROL 40CS/T Categories: , , Brand:

The Control 40CS/T is an 8″ direct radiating subwoofer featuring a built-in passive crossover network, ideal for integrating into a subwoofer-satellite system. When paired with the Control 42, it provides natural, powerful sound suitable for applications needing wide bandwidth and minimal visual impact. The system is compatible with in-ceiling designs for enhanced bass and can operate on a 70V/100V distributed line or in direct mode.

Description

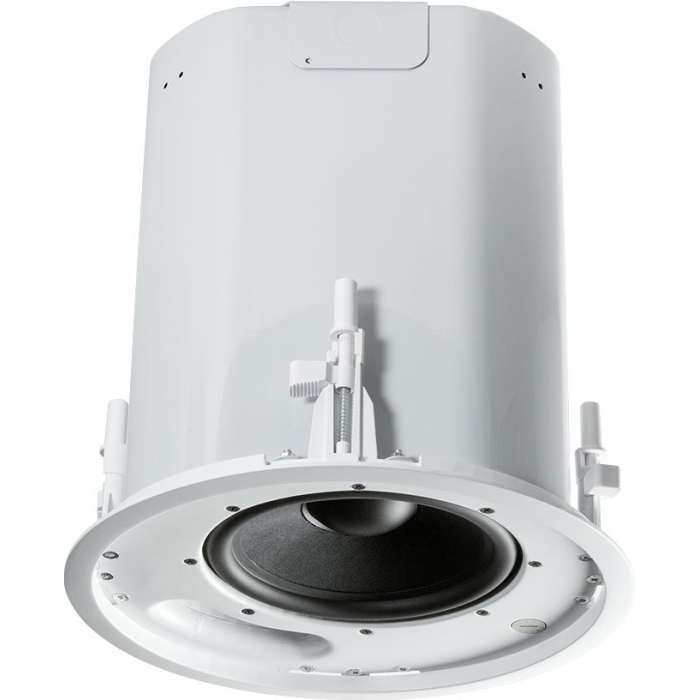

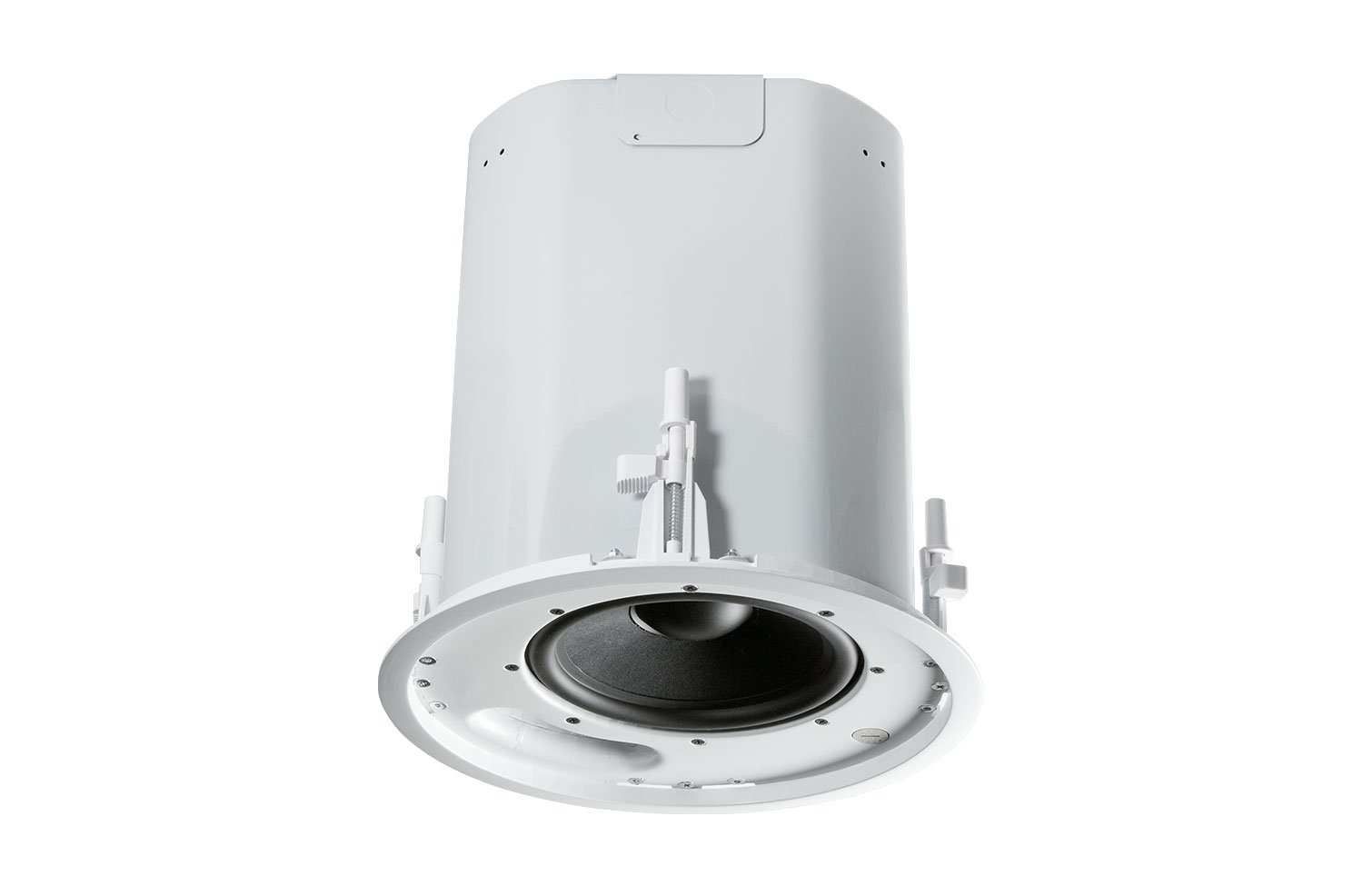

Control 40CS/T Subwoofer

The Control 40CS/T is an exceptional 8″ subwoofer designed for high impact and broad frequency range, making it the ideal choice for sound systems requiring deep bass and minimal visual footprint. Equipped with a passive crossover network, it seamlessly integrates with subwoofer-satellite systems such as the Control 42, ensuring superior sonic performance for any application. The versatility of 70V/100V distributed lines or direct mode further attests to its adaptability in various sound setups.

Key Features

  • Extended Bass Response with Maximum Impact
  • Passive Crossover Network for Easy to Install Subwoofer-Satellite Systems
  • Switchable 70V/100V or Low-Z
  • Elegant Design Fits Any Décor

Specifications

Specification Details
Frequency Range 32 Hz – 300 Hz
Power Rating 200 Watts Continuous Program Power
100 Watts Continuous Pink Noise (400W peak), 100 hr
Sensitivity 95 dB (near corner), 89 dB (center of ceiling)
Transformer Taps 80W, 40W, 20W (& 10W at 70V only)
Impedance 8 ohms (in bypass mode)
Drivers 200 mm (8 in) subwoofer
Termination Screw-down removable locking clip-in connector
Satellite Outputs Connectors for 2 or 4 Control 42C satellite speakers
Included Accessories C-rings, tile rails, paint shield, cutout template, grille
Dimensions (Diameter x Depth) 332 mm x 338 mm (13.1 in x 13.3 in)
Maximum SPL (1m) 109 dB (low-impedance), 115 dB peak, center of ceiling
115 dB (low-impedance, 121 dB peak near corner)
108 dB (70V/100V, center of ceiling)
114 dB (70V/100V near corner)
Input Connectors 6 removable locking 2-pin connectors with screw-down terminals
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan Formed steel (included “blind-mount”)
Baffle/Rim ABS baffle with UL94-V0 and UL94-5VB flame class fire rating
Ceiling Cutout Size 307 mm (12.1 in) (cardboard cutout template included)
Optional Accessories MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket
Plenum Usage Yes, backcan included
