JBL Control 322CT 12″ 2-Way 400W Coaxial Ceiling Speaker (Single Unit)

JBL Professional

AED 3596 inc VAT.

The 322CT is a coaxial point source design ceiling loudspeaker that offers exceptional next-generation performance.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CONTROL 322CT Categories: , , Brand:

Description

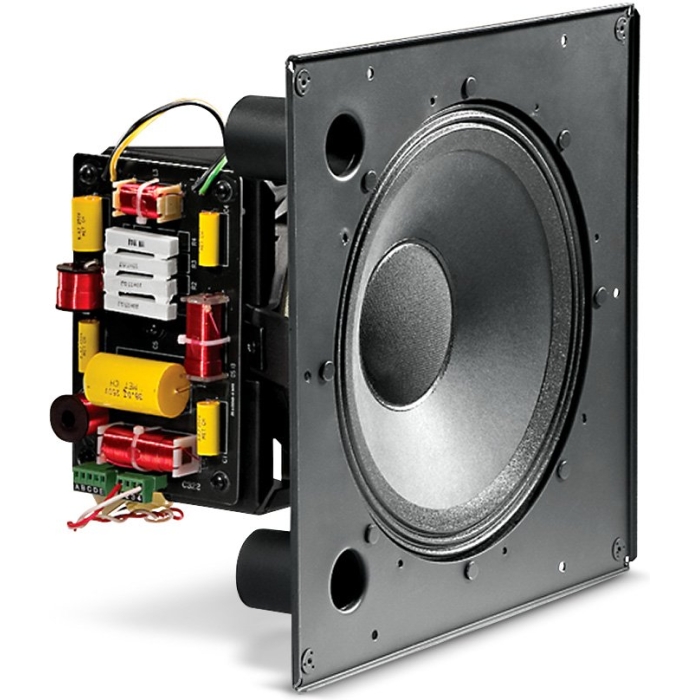

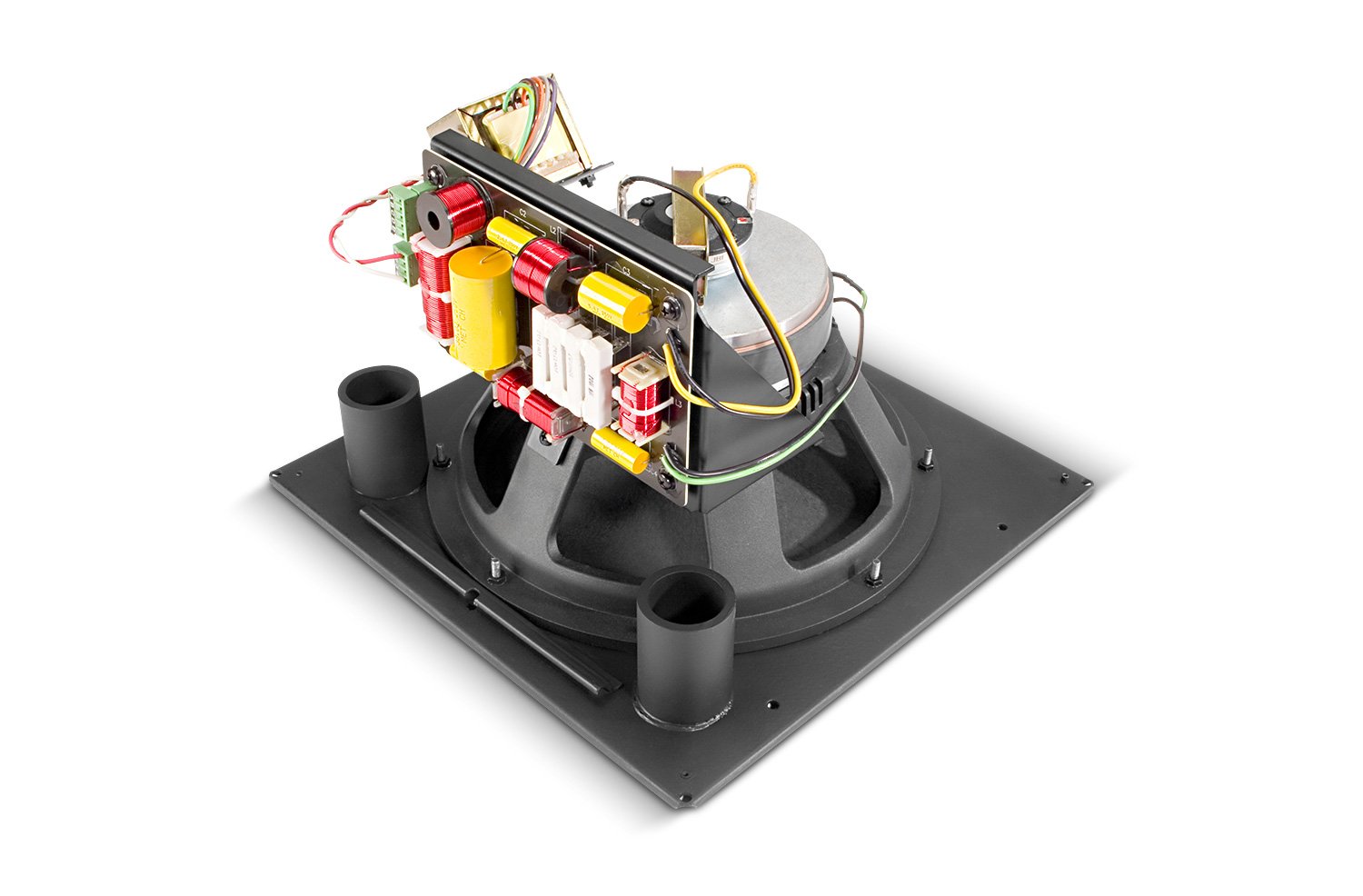

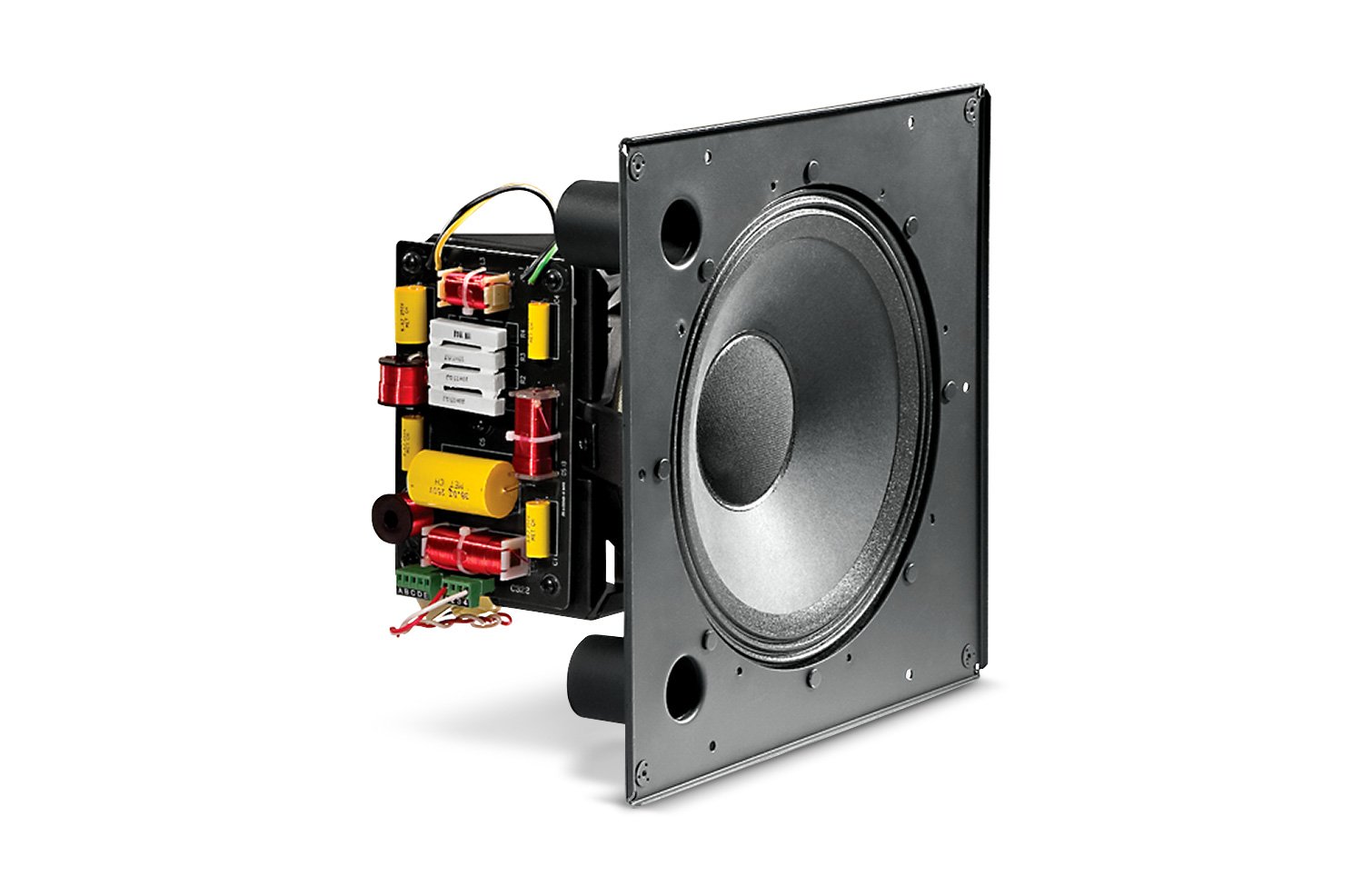

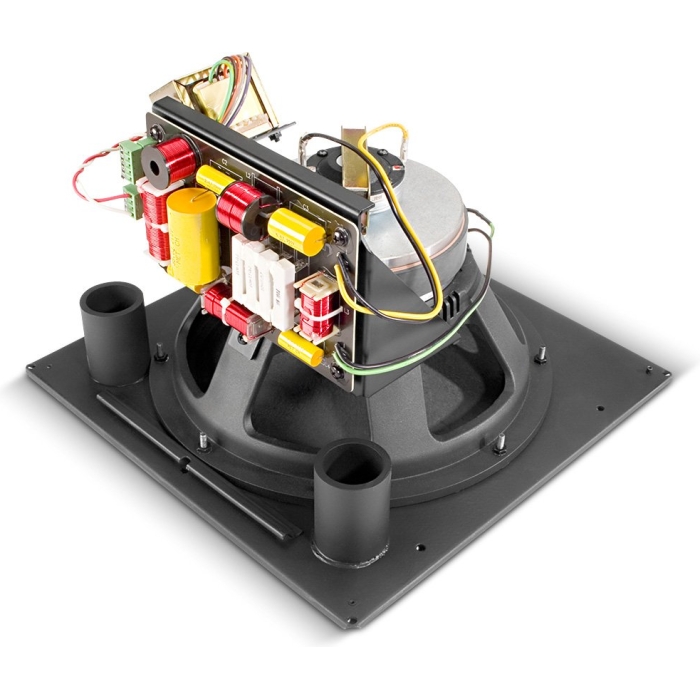

322CT Ceiling Loudspeaker

The 322CT ceiling loudspeaker is engineered for superior performance, offering a seamless blend of high fidelity and consistency. Designed for exceptional clarity in speech and vocals, this product is ideal for a variety of settings, delivering impressive sound quality with an extended frequency response.

Key Features

  • Consistent 90° broadband pattern control.
  • High-performance Kevlar-reinforced 300 mm (12 in) woofer and medium-format compression driver.
  • Extraordinary clarity with extended frequency response.
  • Power handling of 400 Watts with sensitivity for high SPL capability.
  • Advanced high-slope crossover network for smooth midrange consistency.
  • Contemporary grille design with optional backbox.

Specifications

Specification Details
Frequency Range (-10dB) 32 Hz – 20 kHz
Power Rating Refer to transformer taps
Transformer Taps 100W, 50W, 25W (12.5W @ 70V)
Frequency Response (±3dB) 48 Hz – 19 kHz
Coverage Angle 90° conical, constant directivity
Directivity Factor (Q) 9 (1k – 16kHz)
Directivity Index (DI) 9.5dB (1k – 16kHz)
Sensitivity 95 dB (1 kHz – 16 kHz)
Maximum SPL (1m) 121 dB (top 70V/100V tap)
Dimensions (H x W x D) 366 x 366 mm (14.4 x 14.4 in) x 240 mm (9.5 in)
Input Connectors Screw locking barrier strip for bare wire
Drivers LF: 300 mm (12 in), HF: compression driver, 37 mm (1.5 in) coil
Color White
Safety UL and IEC compliant for use in air handling spaces
Backcan Formed steel (wood-lined; accessory)
Baffle/Rim Metal, driver pre-mounted, ported
Ceiling Cutout Size 378 x 378 mm (14.9 x 14.9 in)
Included Accessories Ported baffle pre-attached, transformer
Plenum Usage Yes, with accessory backcan
