Ceiling Speakers

JBL Professional Control 322C 12in 400W Coaxial Ceiling Speaker

JBL Professional

AED 3622 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CONTROL 322C Categories: , , Brand:

The Control 322C is a high-performance ceiling loudspeaker featuring a coaxial point source design, offering advanced audio quality for various installations.

Description

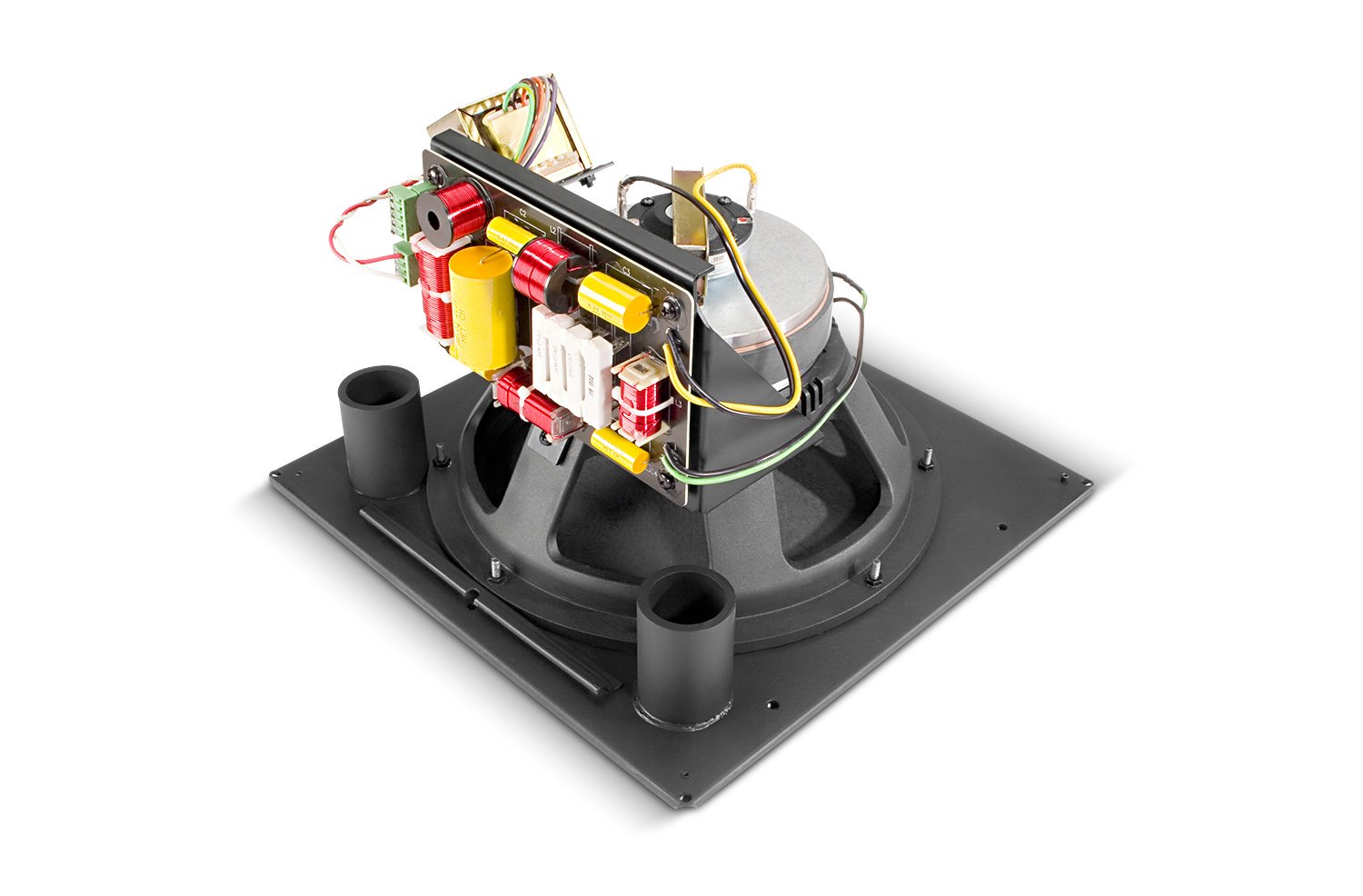

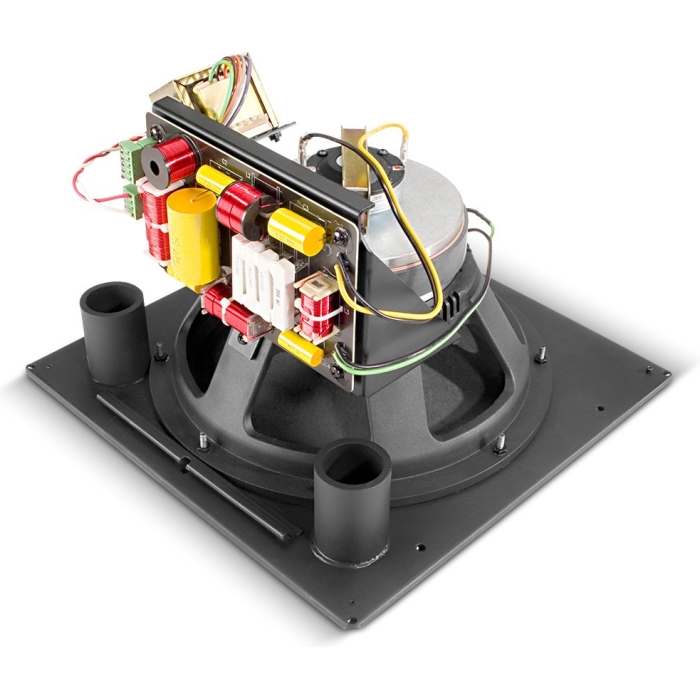

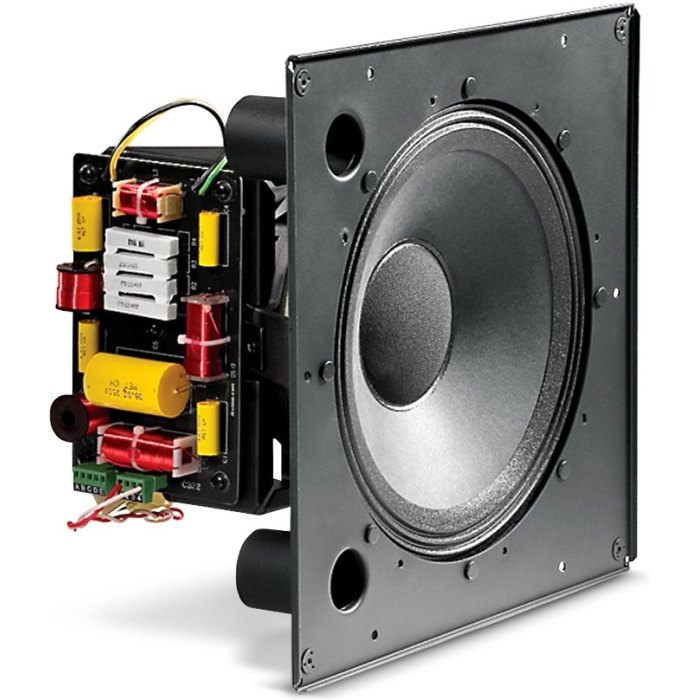

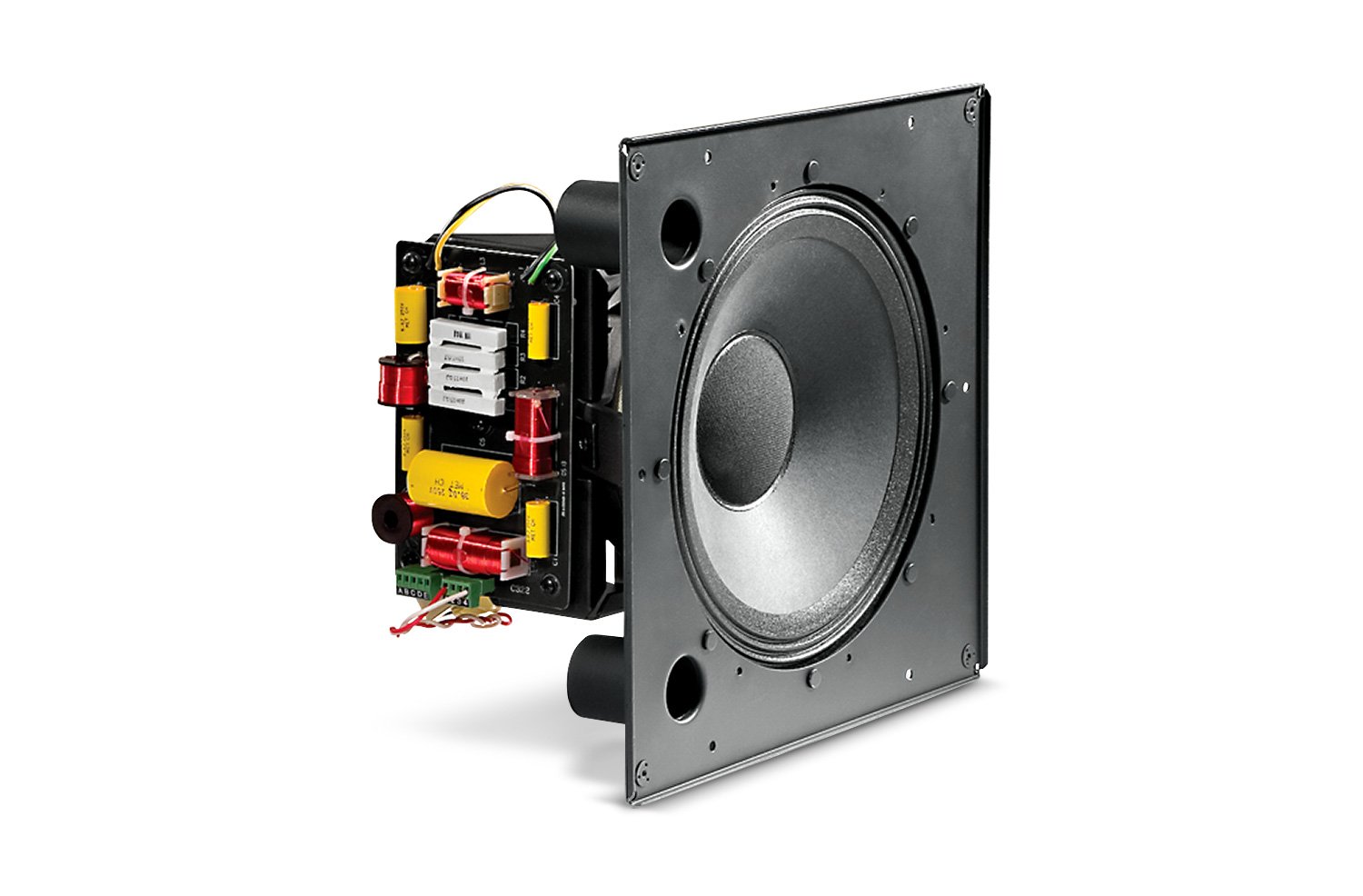

Control 322C Coaxial Point Source Ceiling Loudspeaker

The Control 322C ceiling loudspeaker encompasses advanced audio technology, ensuring superior sound quality and clarity. Designed as a coaxial point source, it offers consistent 90° broadband pattern control essential for uniform coverage and excellent performance. Its robust construction features a Kevlar-reinforced 300 mm (12 in) woofer and a medium-format compression driver for outstanding vocal clarity and musical fidelity.

Key Features

  • Consistent 90° broadband pattern control
  • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone
  • Medium-format compression driver
  • Extraordinary clarity for speech and vocals with extended frequency response for music
  • Power handling of 400 Watts with high sensitivity for high SPL capability
  • Advanced high-slope crossover network for smooth, natural midrange
  • Clean, contemporary grille with optional backbox available

Specifications

Specification Details
Frequency Range (-10dB) 32 Hz – 20 kHz
Power Rating 400 W continuous pink noise (1600 W peak), 2 hrs; 250 W continuous pink noise (1000 W peak), 100 hrs
Sensitivity 95 dB (1 kHz – 16 kHz)
Frequency Response (±3 dB) 48 Hz – 19 kHz
Coverage Angle 90° conical, constant directivity
Directivity Factor (Q) 9 (1 kHz – 16 kHz)
Directivity Index (DI) 9.5dB (1 kHz – 16 kHz)
Crossover Network 1.4 kHz, 3rd order high-pass plus conjugate to HF, 2nd order low-pass to LF
Impedance 8 ohms
Dimensions (H x W x D) 366 x 366 mm (14.4 x 14.4 in) square baffle; 223 mm (8.8 in) depth from back of baffle
Maximum SPL (1m) 121 dB (127 dB peak)
Input Connectors Screw locking barrier strip for bare wire
Drivers LF Driver: 300 mm (12 in); HF Driver: compression driver, 37 mm (1.5 inch) coil
Color White
Safety Agency Compliant with various safety standards including UL1480, UL2043, NFPA90 & NFPA 70
Backcan Formed steel (wood-lined; accessory)
Baffle/Rim Metal, driver pre-mounted to baffle, ported
Ceiling Cutout Size 378 x 378 mm (14.9 x 14.9 in)
Optional Accessories MTC-300SG12 Grille, MTC-300BB12 Backbox, MTC-300T150 Transformer (150 W)
Plenum Usage Yes, with accessory backcan
