JBL Control 321CT 12″ 2-Way 250W Coaxial Ceiling Speaker 70V/100V – Single Unit

AED 2746 inc VAT.

The Control 321CT is designed for high-performance audio, featuring a coaxial point source configuration ideal for ceiling installation, ensuring exceptional sound quality and clarity.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

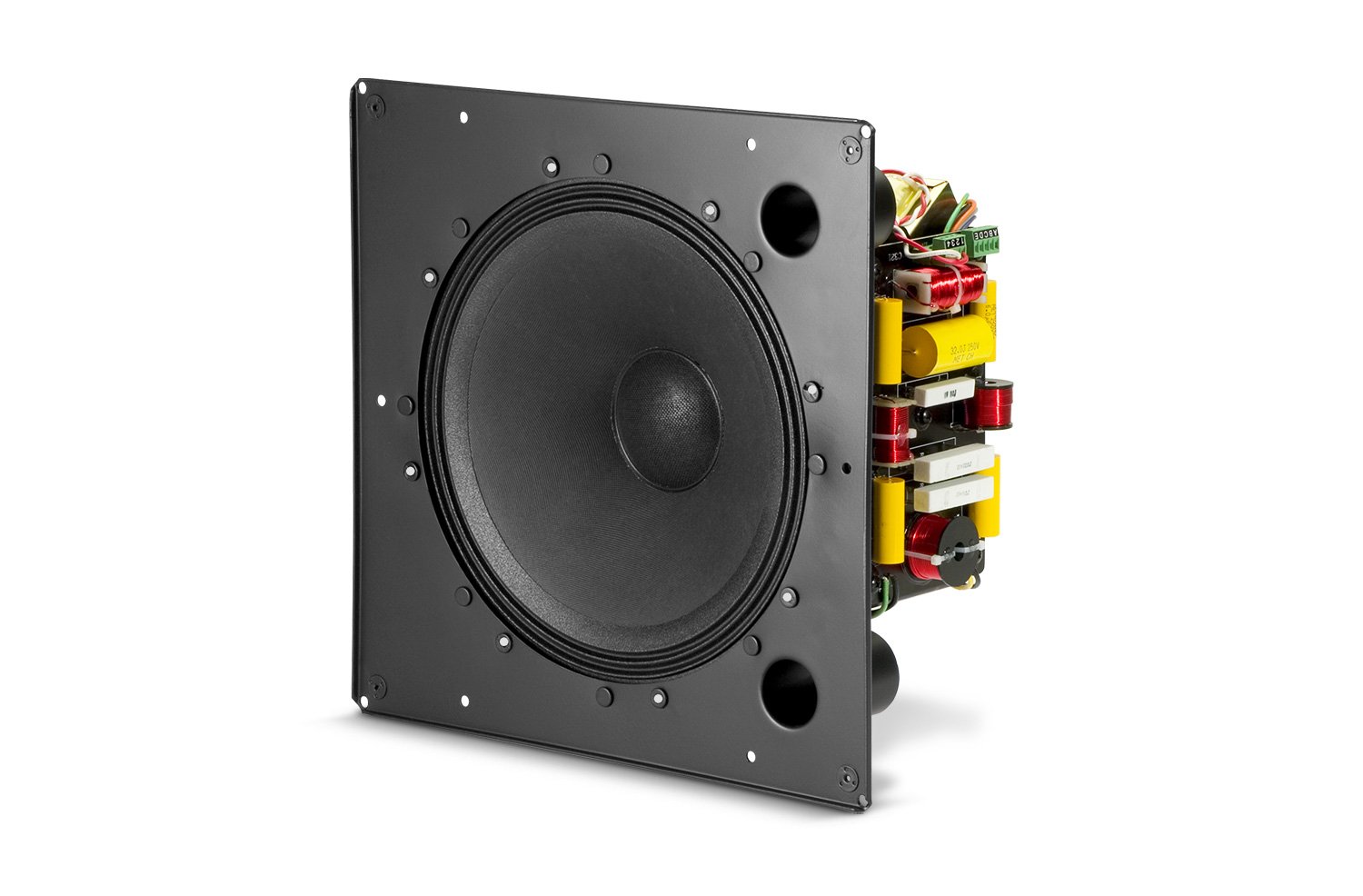

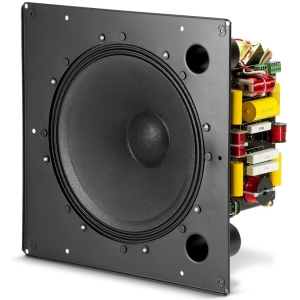

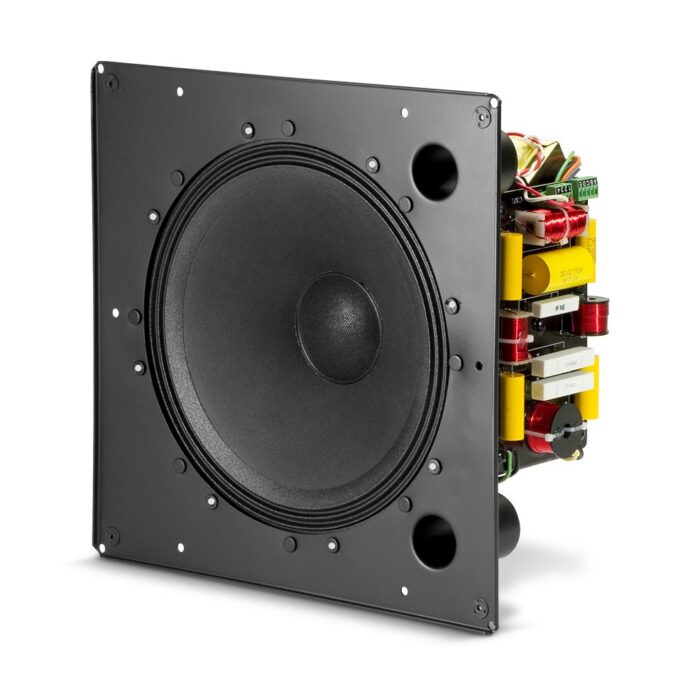

Control 321CT Coaxial Ceiling Loudspeaker

The Control 321CT is meticulously crafted to provide remarkable performance with its coaxial point source design, making it an excellent choice for a wide range of applications. It ensures uniform sound distribution and exceptional vocal clarity, securing a balanced audio experience throughout the room.

Main Features

Consistent 90° broadband pattern control to cover a wide area uniformly.
Components include a 300 mm (12 in) Kevlar-reinforced woofer cone with a 50 mm (2 in) voice coil, and a 25 mm (1 in) compression driver.
Exceptional clarity for speech and vocals, ideal for both speech and music.
Handles up to 250 Watt power, delivering high SPL for dynamic audio output.
Advanced high-slope crossover network ensures smooth, natural midrange.
Elegant, contemporary grille design with an optional backbox for enhanced performance.

Specifications

Specification	Details
Frequency Range (-10dB)	34 Hz – 18 kHz
Power Rating	250 W continuous pink noise (1000 W peak), 2 hours; 200 W continuous pink noise (800 W peak), 100 hours
Transformer Taps	68W, 34W, 17W, (8.5W @ 70V)
Frequency Response (±3 dB)	47 Hz – 16 kHz
Coverage Angle	90° conical, constant directivity
Directivity Factor (Q)	8.7 (1k – 16kHz)
Directivity Index (DI)	9.4 dB (1k – 16kHz)
Sensitivity	94 dB (1 kHz – 16 kHz)
Crossover Network	1.8 kHz, 3rd order high-pass plus conjugate to HF, 2nd order low-pass to LF
Dimensions (H x W x D)	366 x 366 mm (14.4 x 14.4 in) square baffle, depth 240 mm (9.5 in)
Maximum SPL (1m)	118 dB (top 70V/100V tap)
Input Connectors	Screw locking barrier strip for bare wire
Drivers	LF: 300 mm (12 in); HF: 25 mm (1 in) compression driver
Color	White
Safety	Complies with UL1480, UL2043, NFPA90 & NFPA70; suitable for air-handling spaces
Backcan	Formed steel (wood-lined; accessory)
Baffle/Rim	Metal, driver pre-mounted to baffle, ported
Ceiling Cutout Size	378 x 378 mm (14.9 x 14.9 in)
Included Accessories	Ported baffle pre-attached, transformer on 321CT
Optional Accessories	MTC-300SG12 Grille, MTC-300BB12 Backbox, MTC-300T150 Transformer
Plenum Usage	Yes, with accessory backcan
