Ceiling Speakers

JBL Professional Control 26-DT Coaxial Ceiling Speaker with 60W Transformer (1 Piece)

JBL Professional

AED 712 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CONTROL 26-DT Categories: , , Brand:

The Control 26-DT is a compact ceiling speaker designed to fit standard 200 mm (8-inch) ceiling backcans, providing seamless integration and excellent audio performance.

Description

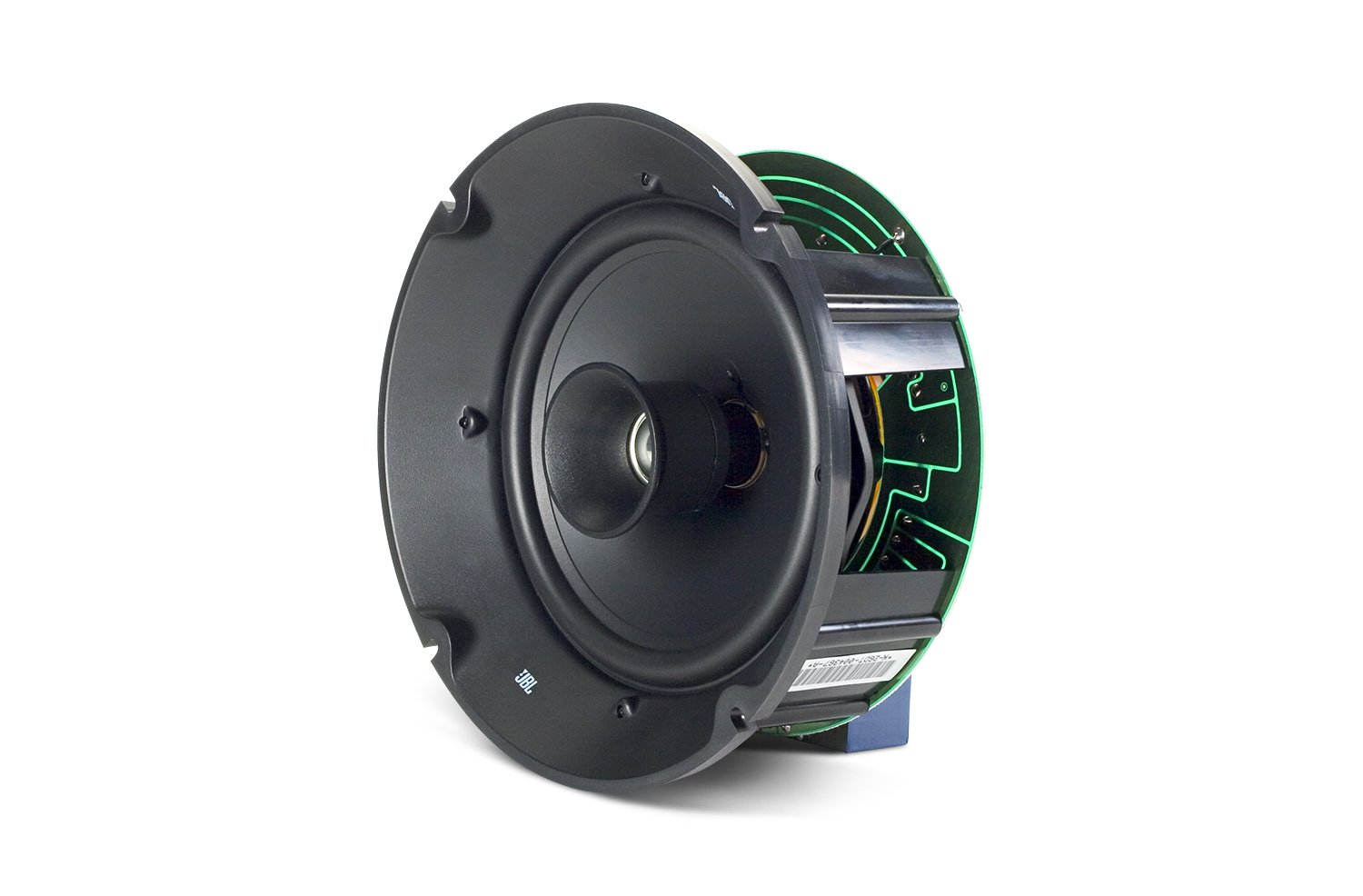

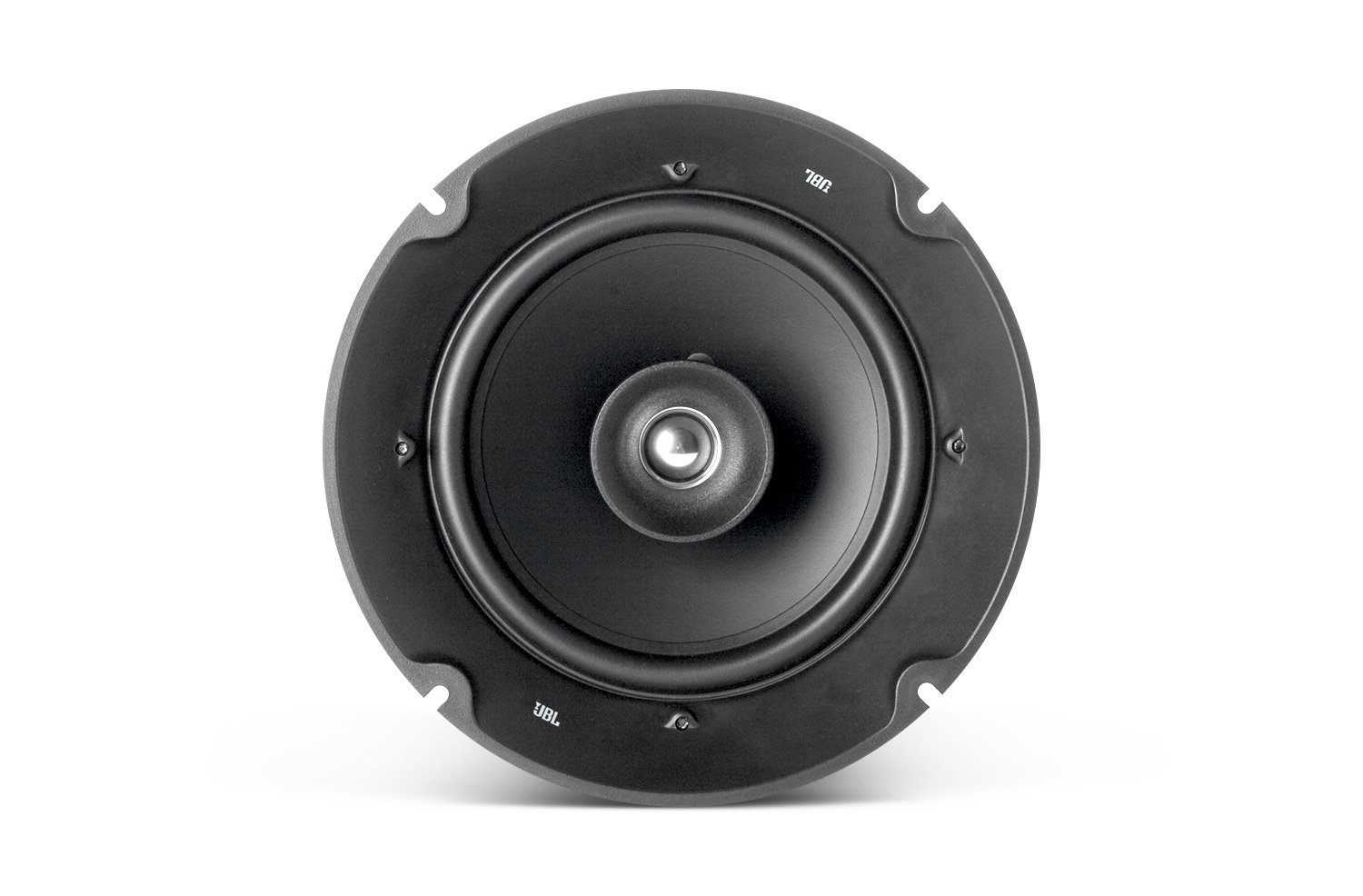

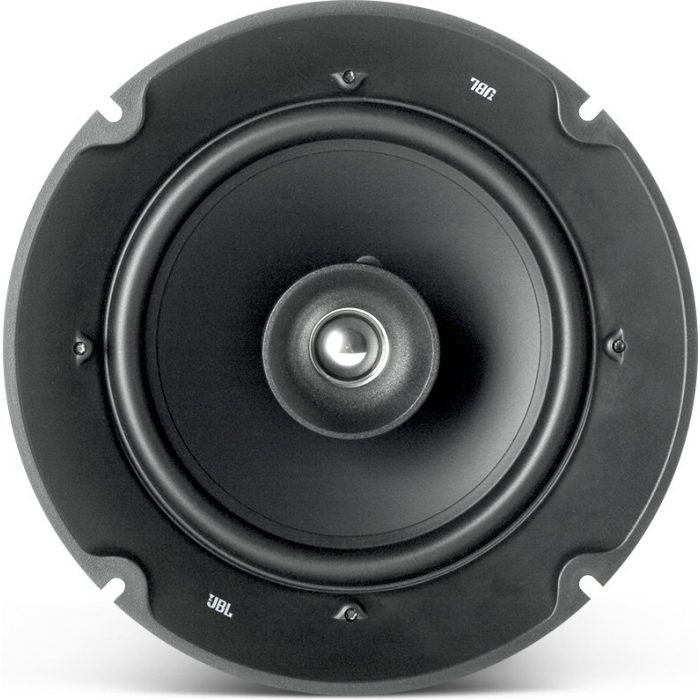

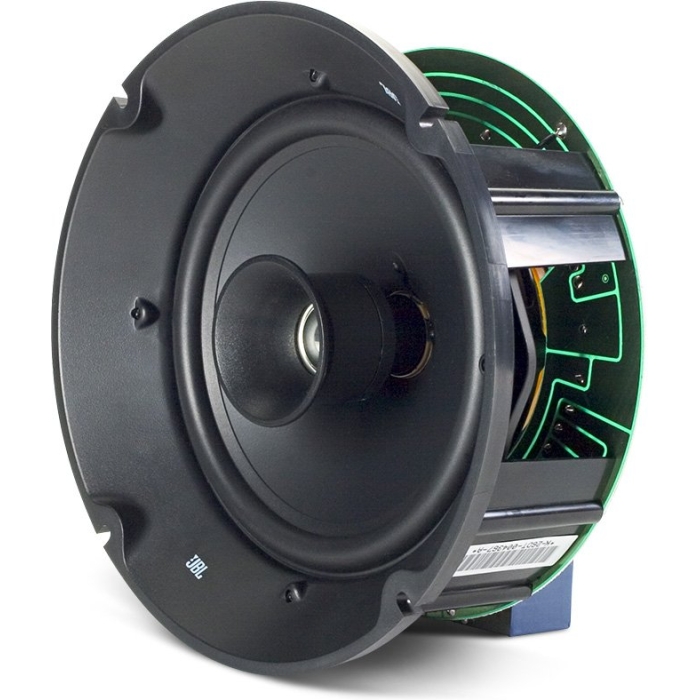

Control 26-DT Compact Ceiling Speaker Assembly

The Control 26-DT is a versatile ceiling speaker designed for superior audio performance in commercial installations. Its compact structure allows it to fit effortlessly into standard ceiling backcans configured for 200 mm (8″) drivers, providing a seamless integration with existing systems.

Features

  • Fits in standard backcans for 8″ speakers, making it a versatile replacement option.
  • Supplied complete with transducer, network, and transformer for easy installation.
  • Advanced crossover network ensures natural sound and consistent coverage.
  • Equipped with a 60 W transformer suitable for 70 V or 100 V distributed speaker lines.
  • Uses a coaxial woofer with long-life butyl rubber surround and titanium coated tweeter for durability and quality sound.

Specifications

Frequency Range 80 Hz – 20 kHz
Power Rating See transformer taps
Transformer Taps 60W, 30W, 15W (7.5W @ 70V)
Coverage Angle 90° conical
Directivity Index (DI) 4.6 averaged 500 Hz to 4 kHz
Maximum SPL (1m) 106 dB (top 70V/100V tap)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (¾ in)
Input Connectors Screw locking barrier strip for bare wire
Outside Dimensions (H x Dia) 210 x 252 mm (8.3 x 9.9 in)
190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (each) 4.2 kg (10 lb)
Shipping Weight (pair) 9.7 kg (21 lb)
Sensitivity 89 dB (100 Hz – 10 kHz)
Safety Agency In accordance with IEC60849 / EN60849.
Plenum Usage Requires third-party plenum rated backcan
