JBL Control 24CT Ceiling Speaker – White (Single Unit)

JBL Professional

AED 832 inc VAT.

The Control 24CT is a compact in-ceiling speaker designed to deliver high quality sound for background music and combined music-plus-paging systems.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CONTROL 24CT Categories: , , Brand:

Description

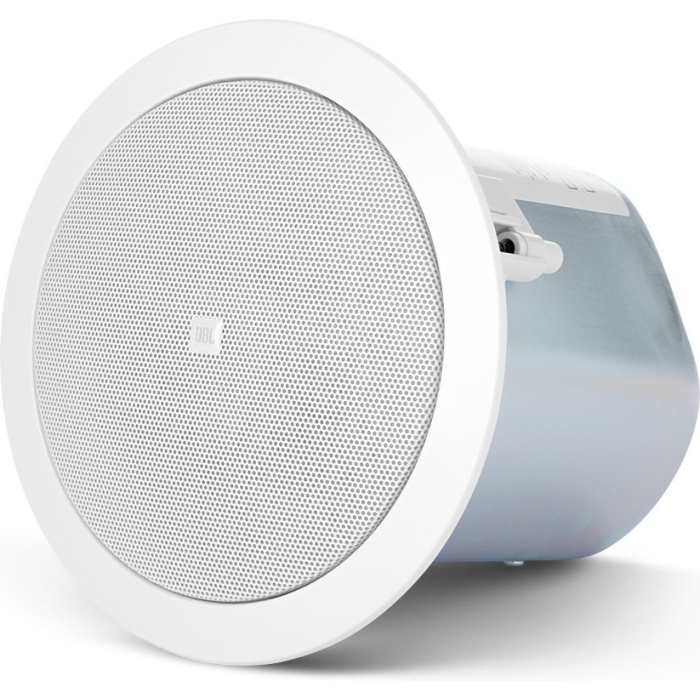

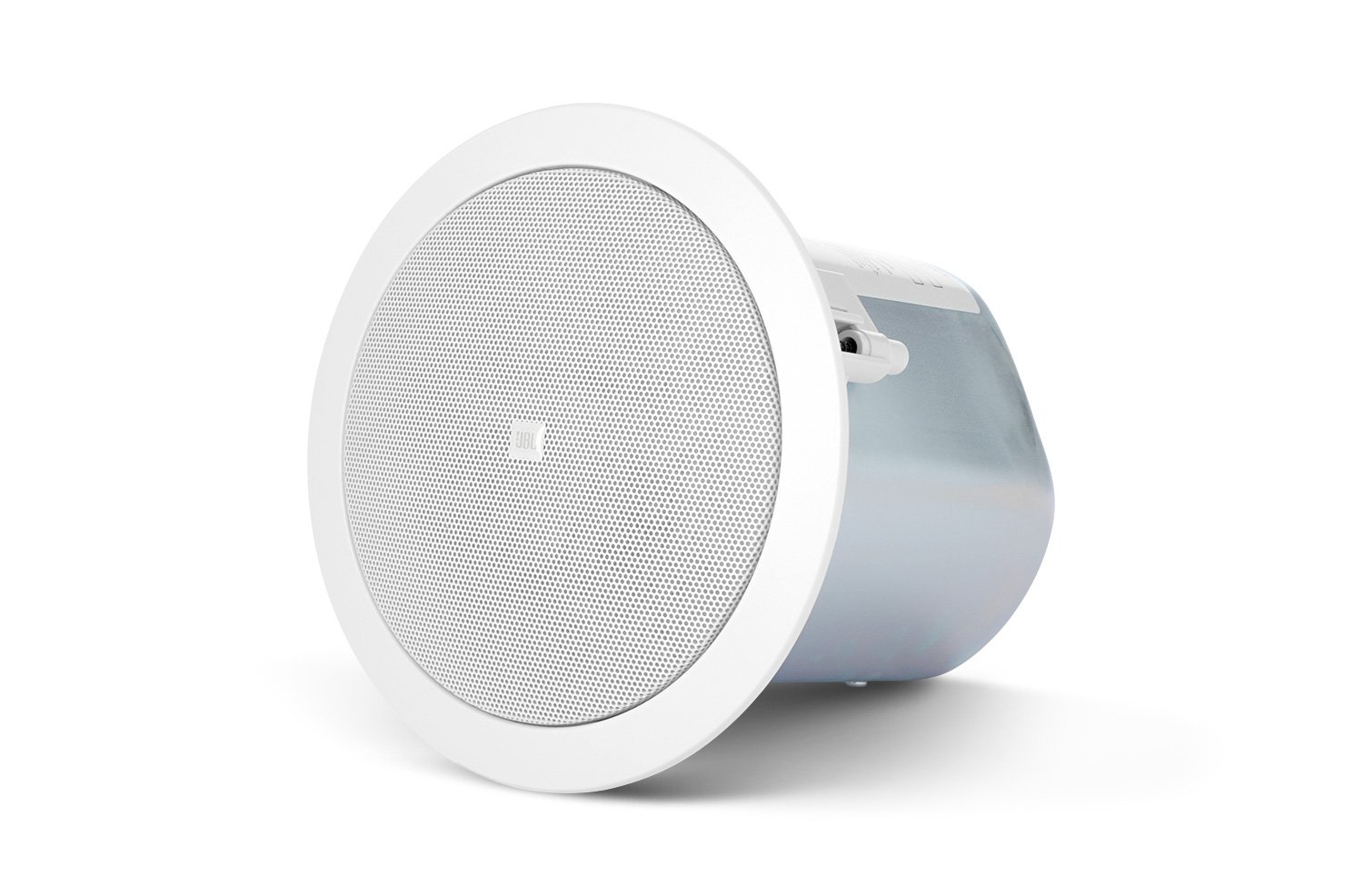

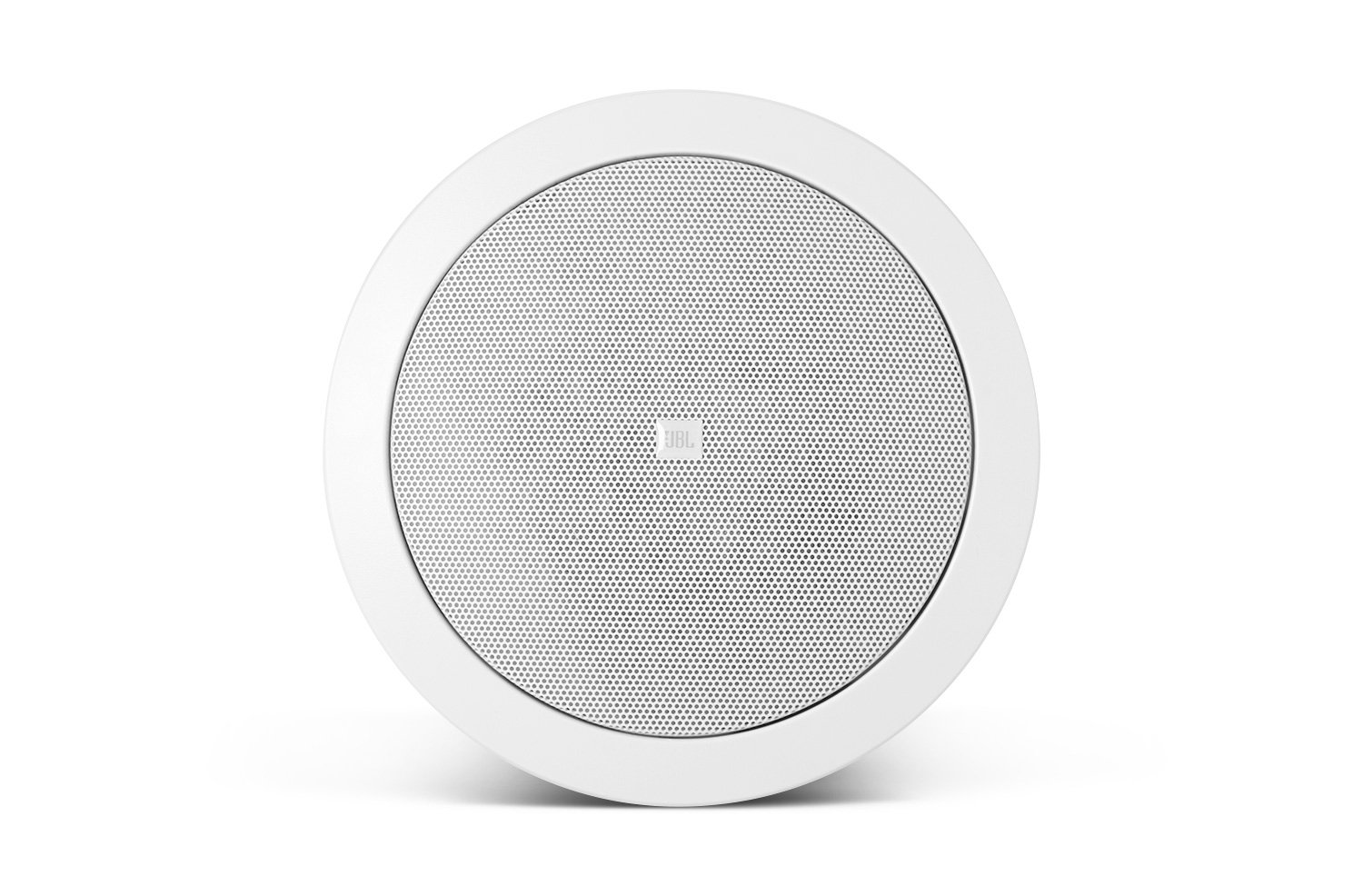

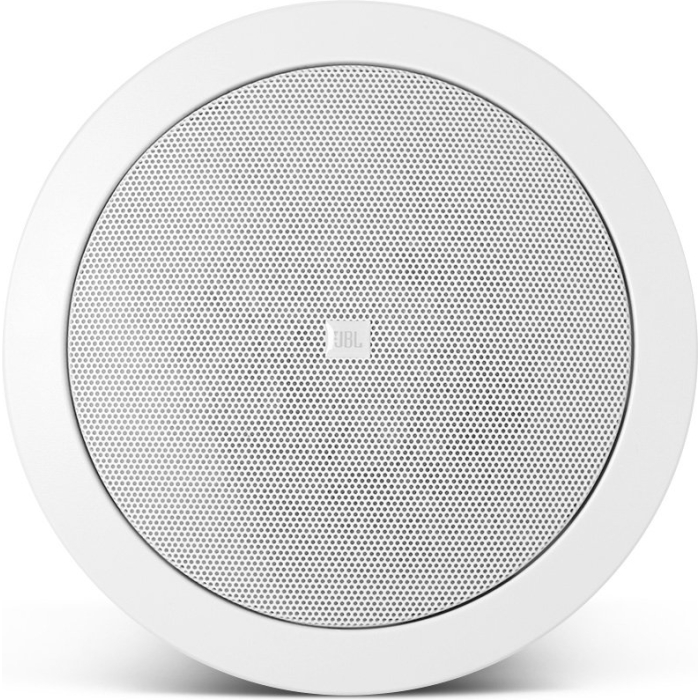

JBL Control 24CT In-Ceiling Speakers

The Control 24CT is a compact in-ceiling speaker designed to provide high-quality sound for both background music and music-plus-paging systems. It offers an excellent combination of performance, ease of installation, and aesthetic appeal, making it an ideal choice for various commercial and residential environments.

Features

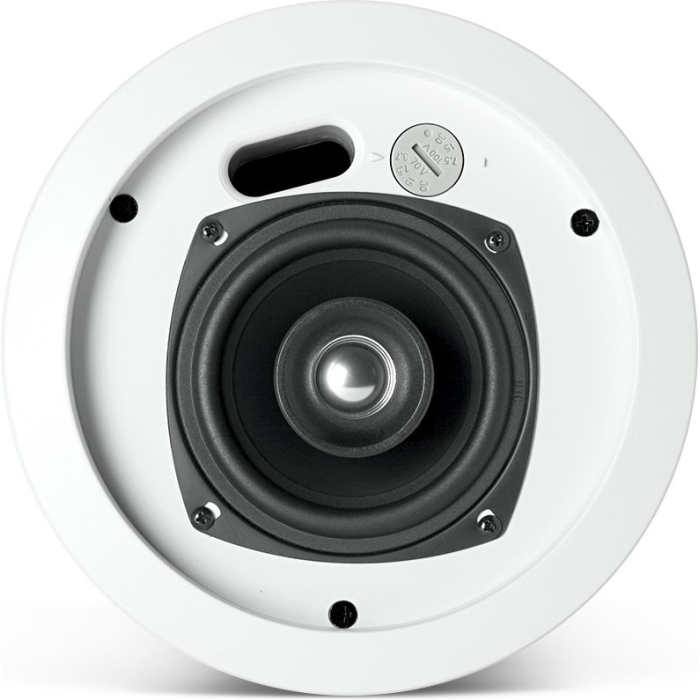

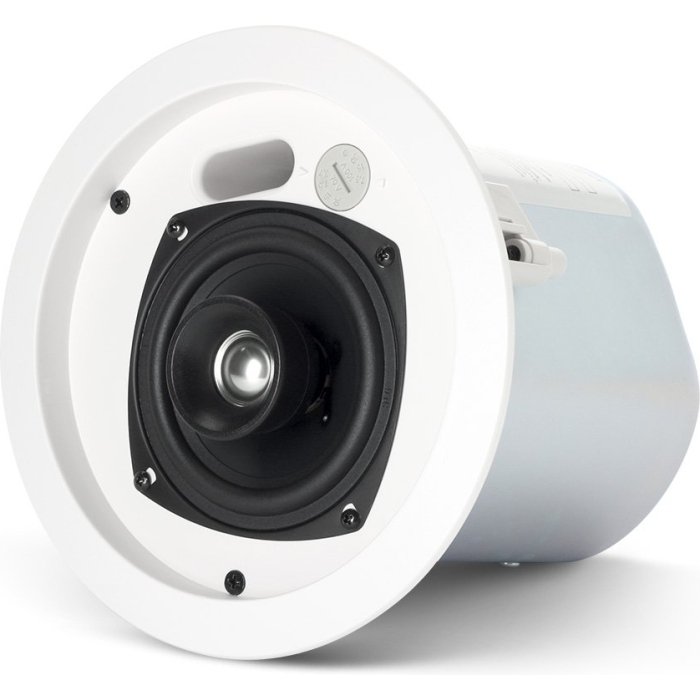

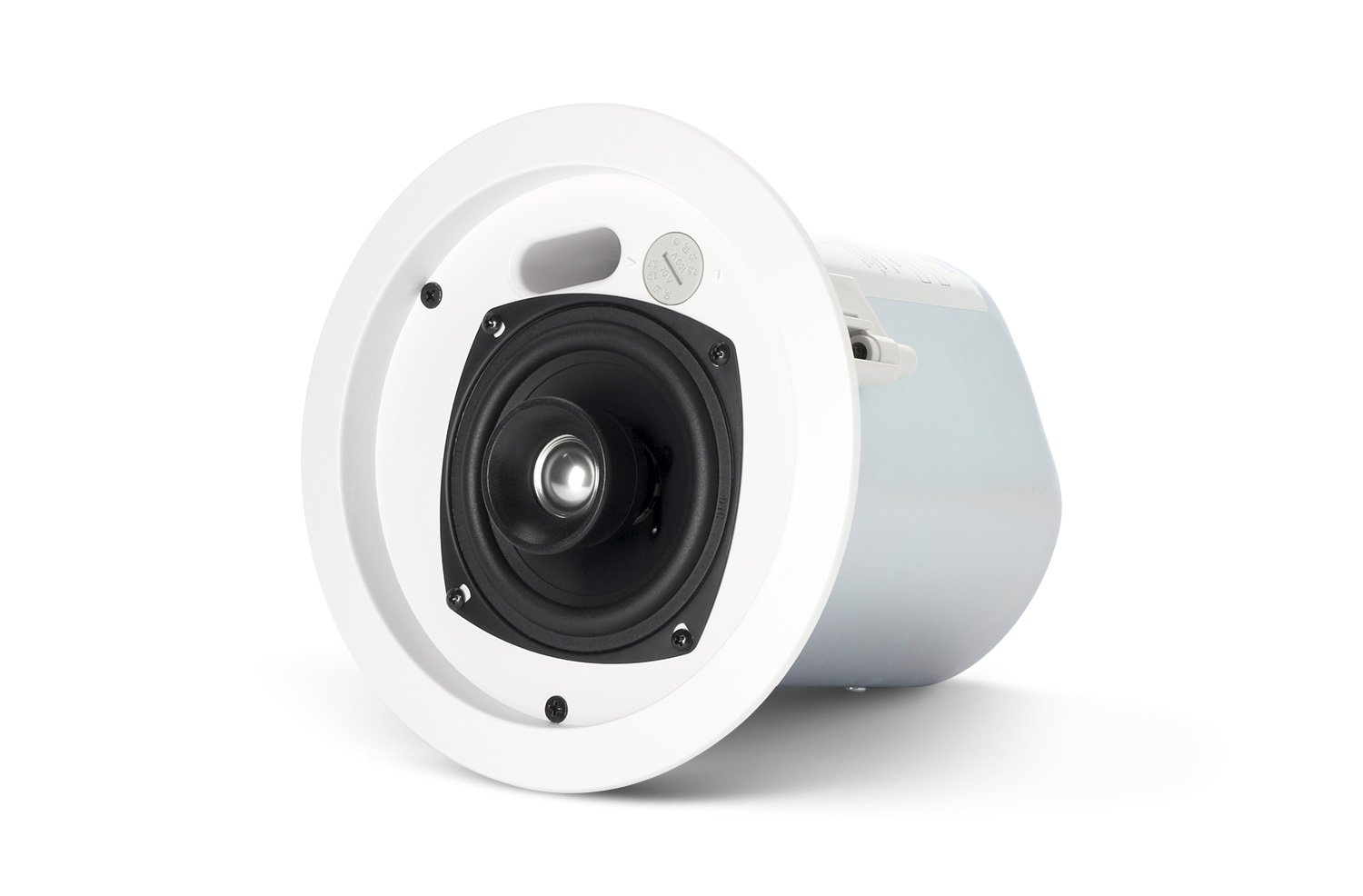

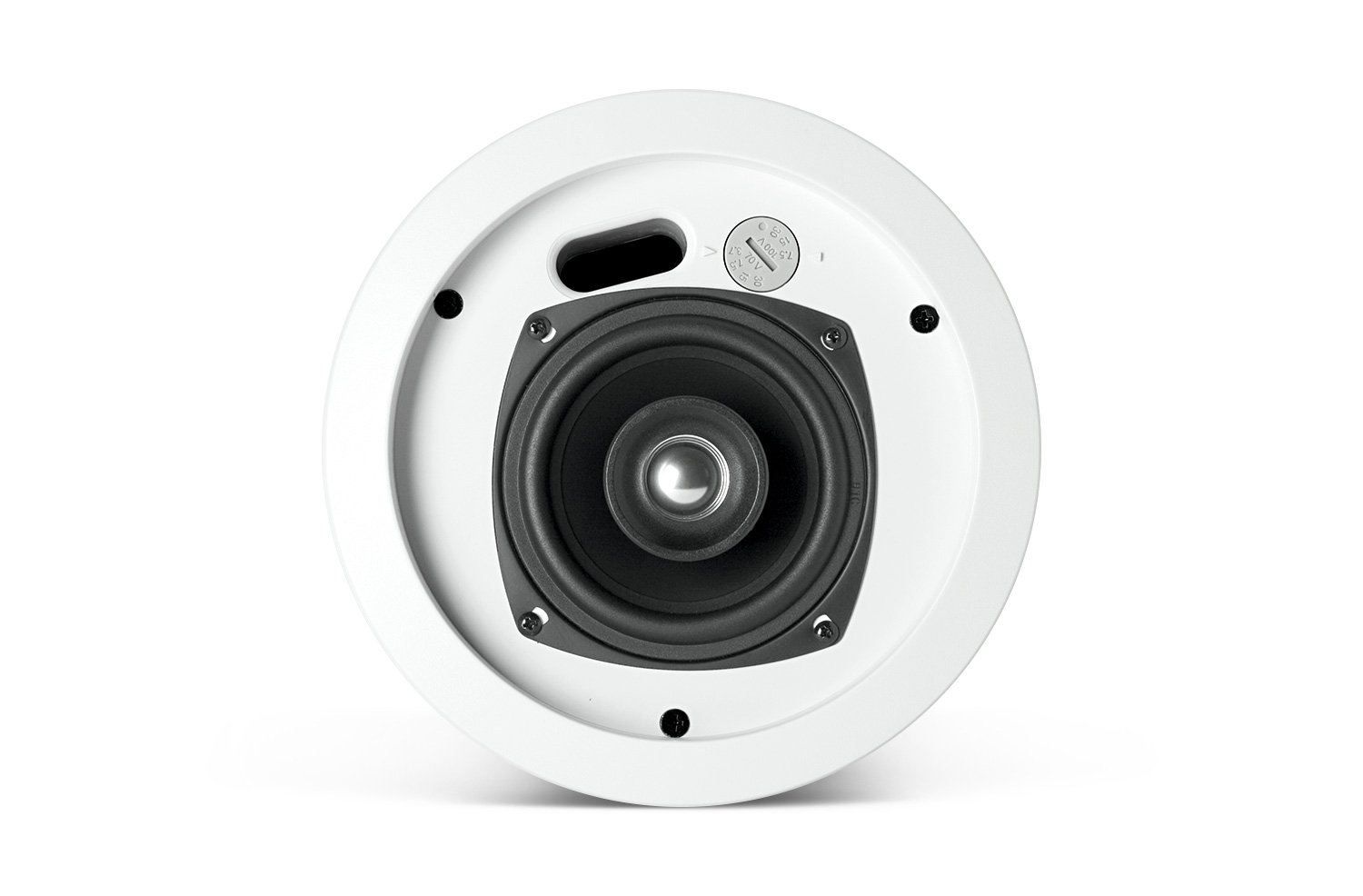

  • Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
  • High power, wide frequency response, and low distortion for enhanced sound output
  • Wide coverage allows fewer speakers, reducing overall cost
  • Packaged with grille, backcan, and tile rails for fast installation and easy stocking

Specifications

Specification Details
Frequency Range 80 Hz – 20 kHz
Power Rating See transformer taps
Transformer Taps 70V: 30W, 15W, 7.5W (& 3.7W @ 70V)
Coverage Angle 130° conical
Directivity Factor (Q) 2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI) 3.8 dB averaged 500 Hz to 4 kHz
Maximum SPL (1m) 102 dB (top 70V/100V tap)
Nominal Impedance 16 ohms (Min Z 16.1 ohms @ 320 Hz)
Sensitivity 86 dB (100 Hz – 10 kHz)
Input Connectors Removable 4-pin locking connector with screw-down terminals.
Drivers LF Driver: 100 mm (4.0 in) | HF Driver: 19 mm (0.75 in)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan Formed steel (included “blind-mount”)
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 168 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate | 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) | Cutout template | Paint shield | Removable locking wiring connector
Plenum Usage Yes, backcan included
