In-Ceiling Subwoofers

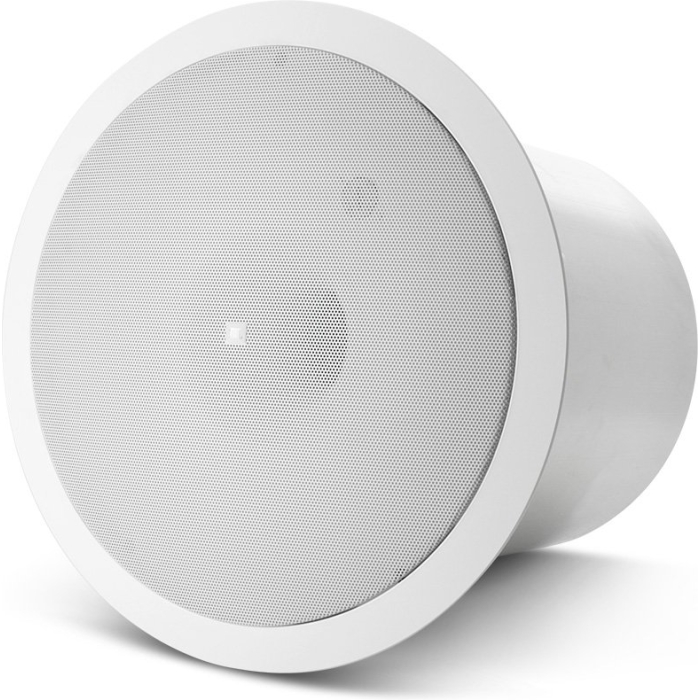

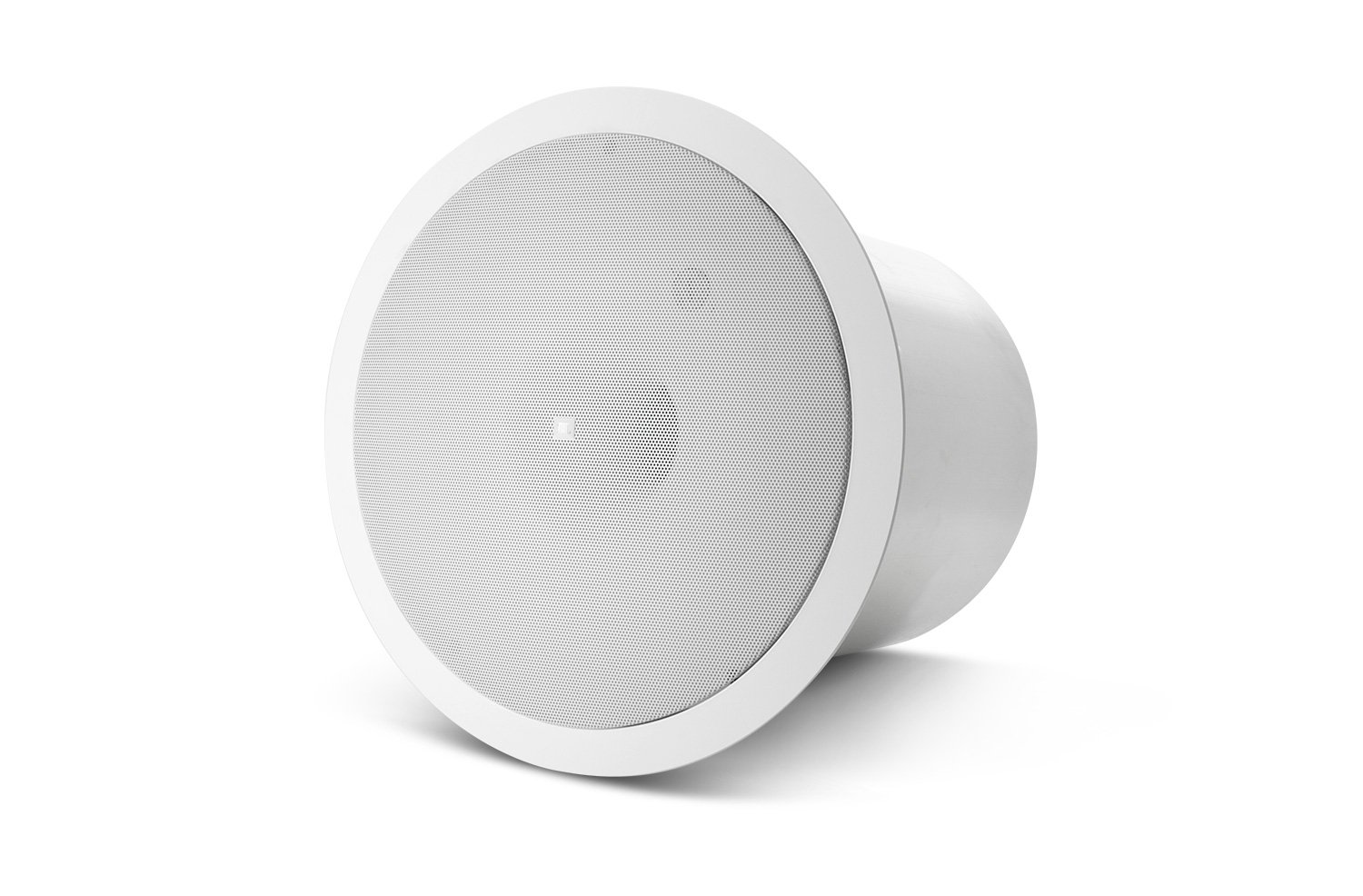

JBL Control 19CS 8″ 200W In-Ceiling Subwoofer (White)

JBL

AED 1,474 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CONTROL 19CS Categories: , , Brand:

The Control 19CS features innovative proprietary technologies to deliver robust bass from its discreet in-ceiling design.

Description

JBL Control 19CS – In-Ceiling Subwoofer

The Control 19CS utilizes advanced proprietary technologies to deliver deep, powerful bass from a sleek, low-profile in-ceiling design. Ideal for various audio applications, this in-ceiling subwoofer integrates seamlessly, offering an enhanced auditory experience with minimal visual intrusion.

Key Features

  • Innovative Nested Chamber™ design and Linear Dynamic Aperture™ port deliver robust output from a compact structure.
  • JBL’s SonicGuard™ technology ensures higher operational levels with enhanced system reliability.
  • Equipped with a long-excursion 200 mm (8 inch) driver for optimal performance.
  • Comes with grille, backcan, and tile rails for quick and easy installation.
  • Simple, user-friendly installation and wire connection process.

Technical Specifications

Frequency Range 42 Hz – 200 Hz
Power Rating 200 Watts Continuous Program Power
100 Watts Continuous Pink Noise (400W peak), 100 hrs
Sensitivity 95 dB SPL in ceiling near corner, 89 dB in center of ceiling
Coverage Angle 180° conical
Maximum SPL (1m) 109 dB (low-impedance, 115 dB peak, center of ceiling)
115 dB (low-impedance, 121 dB peak near corner)
Impedance 8 ohms
Input Connectors Removable locking connector with screw-down terminals
Drivers 200 mm (8.0 in) subwoofer
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. Complies with IEC60849/EN60849.
Backcan Formed steel (included “blind-mount”)
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 305 mm (12.0 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), cutout template, paint shield, removable locking wiring connector
Plenum Usage Yes, backcan included
Enclosure Material Backcan: Formed steel, Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Overload Protection Full-range power limiting to protect network and transducers (On Control 19CS, not on Control 19CST)
Outside Dimensions (H x Dia) 345 x 345 mm (13.6 x 13.6 in), 318 mm (12.5 in) front of ceiling tile to back of backcan
Net Weight (each) 5.5 kg (12 lb)
Shipping Weight (pair) 12.7 kg (28 lb)
