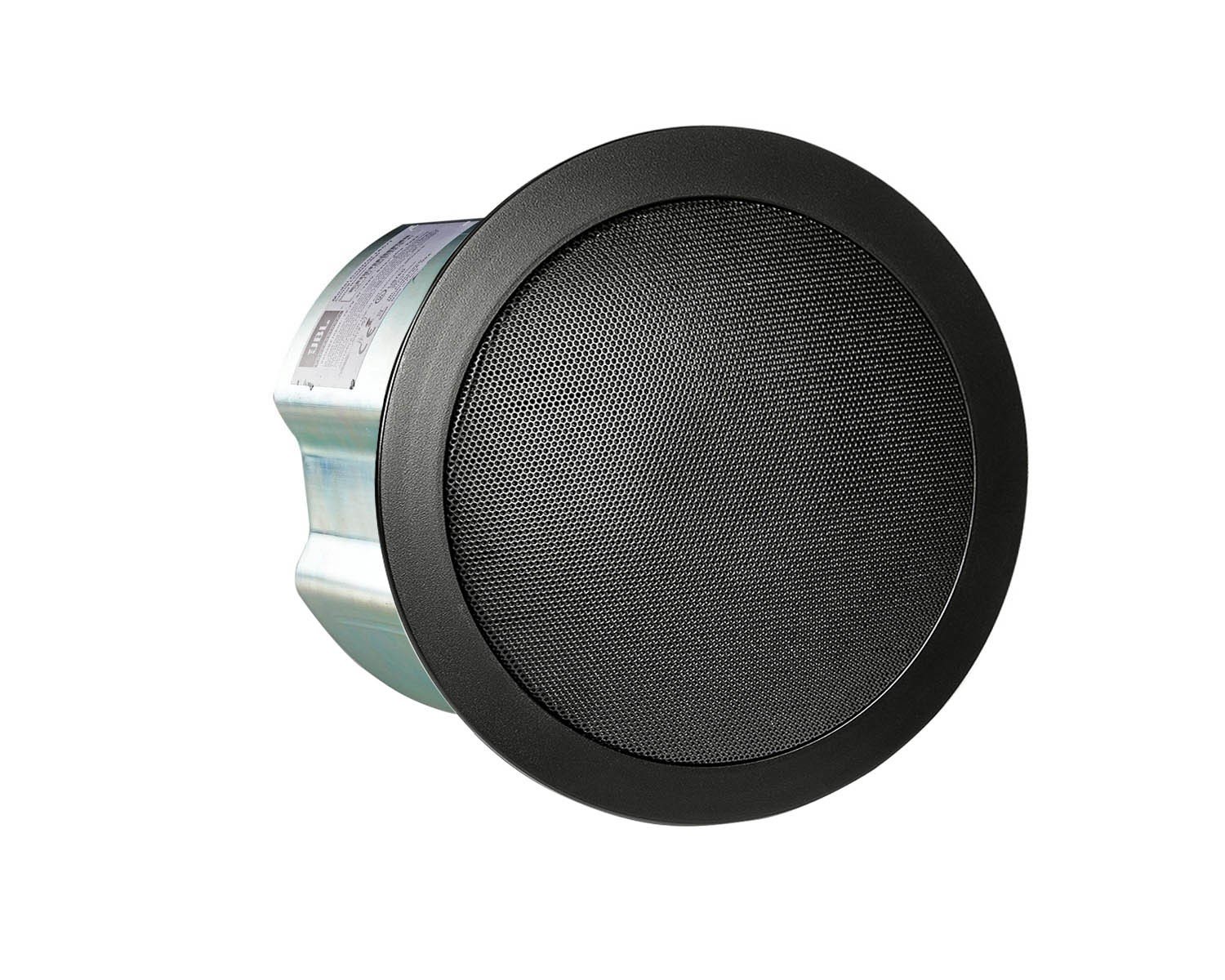

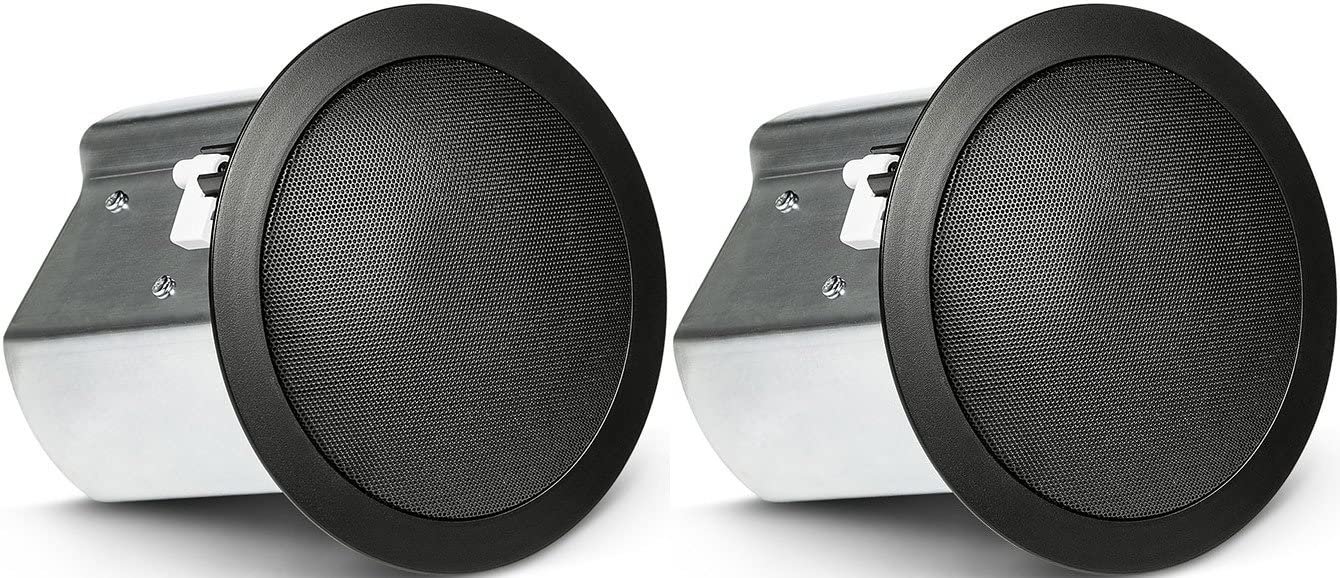

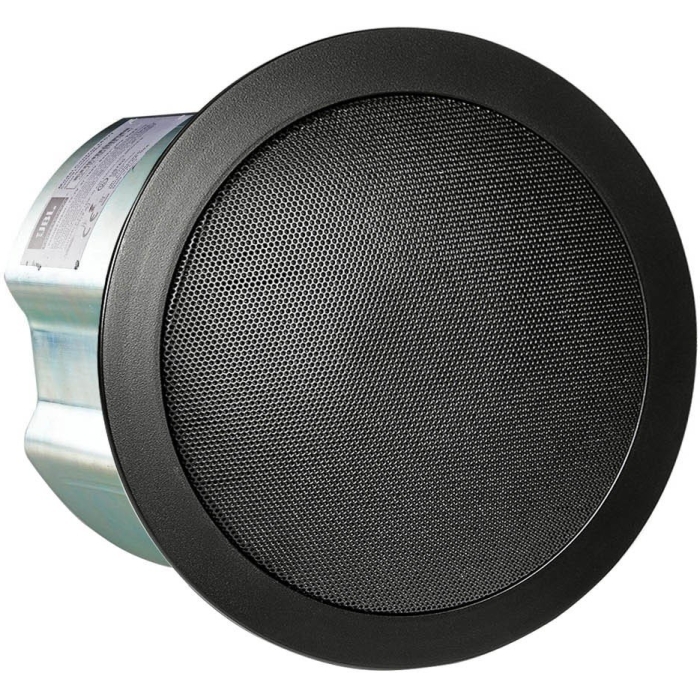

JBL Control 18C/T-BK 2-Way 8″ Coaxial Ceiling Loudspeaker – Black (Single)

JBL Professional

AED 1132 inc VAT.

The Control 18C/T is a versatile ceiling speaker featuring an 8-inch high-tech cone driver and a 1-inch soft-dome tweeter, housed in a UV-resistant, paintable baffle with a pre-attached backcan for easy installation, ideal for medium to high volume environments such as cafes, retail stores, airports, and educational facilities.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CONTROL 18C/T-BK Categories: , , Brand:

Description

Control 18C/T Ceiling Speaker

The Control 18C/T ceiling speaker is perfect for medium to high volume areas, delivering superior audio quality in diverse environments including cafes, retail stores, airports, hotels, and educational facilities. It integrates a robust 200 mm (8-inch) polypropylene cone driver and a 25 mm liquid-cooled tweeter for pristine sound coverage.

Key Features

  • 200 mm (8.0 in) high output driver with polypropylene cone
  • 25 mm (1.0 in) soft-dome liquid-cooled tweeter
  • Quick and easy installation with blind-mount backcan
  • Dual conduit/cable clamps for secure installation
  • Combined 70V/100V and low impedance operation
  • 58 Hz – 20 kHz bandwidth with 90° coverage
  • High 92 dB sensitivity for maximum SPL
  • Available in white or black finish

Specifications

Specification Details
Frequency Range (-10dB) 58 Hz – 20 kHz
Frequency Response (±3 dB) 80 Hz – 16 kHz
Power Rating 90 Watts Continuous Pink Noise (360W peak)
Maximum Input Voltage 31.8 V RMS (2hrs), 63.6 V peak
Sensitivity 92 dB (1kHz – 16 kHz)
Coverage Angle 90° conical
Directivity Factor (Q) 6.0
Directivity Index (DI) 7.8 dB
Maximum SPL (1m) 112 dB (low-impedance, 118 dB peak)
Impedance 8 ohms
Transformer Taps 60 W, 30 W, 15 W @ 70V or 100V (7.5 W @ 70V only)
Crossover Network 12 dB/oct low-pass to LF driver, 12 dB/oct high-pass to HF driver
Drivers LF: 200 mm, HF: 25 mm
Input Connector Removable 4-pin connector with screw-down terminals
Materials ABS baffle, zinc-plated steel backcan
Safety Agency UL1480, UL2043, NFPA90 & NFPA70
Dimensions 307 mm diameter x 274 mm depth
Ceiling Cutout Size 282 mm diameter
Net Weight 6.4 kg
Included Accessories C-ring support plate, tile support rails, grille, connector
