Ceiling Speakers

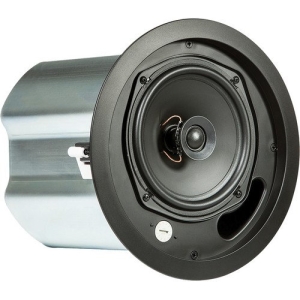

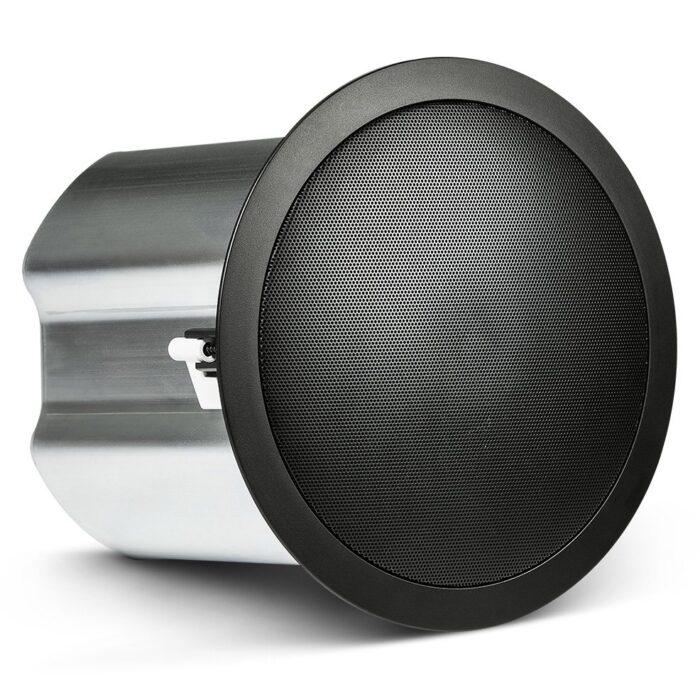

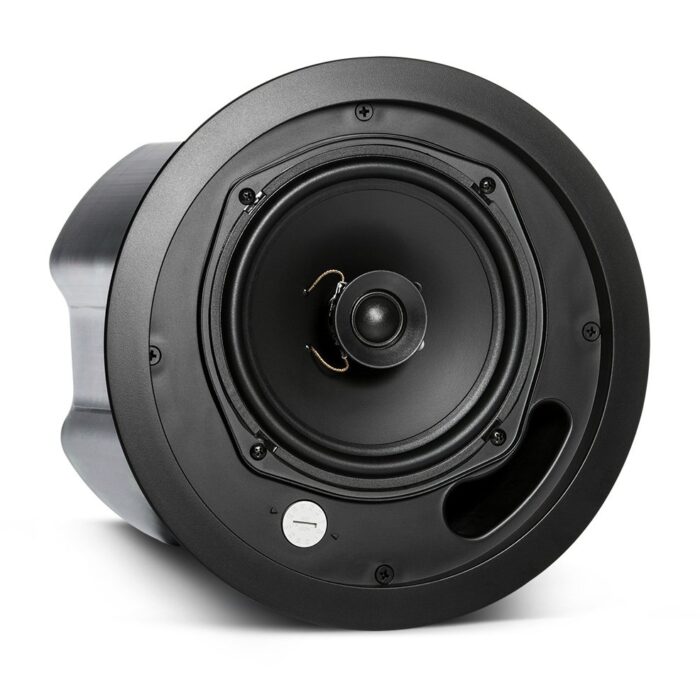

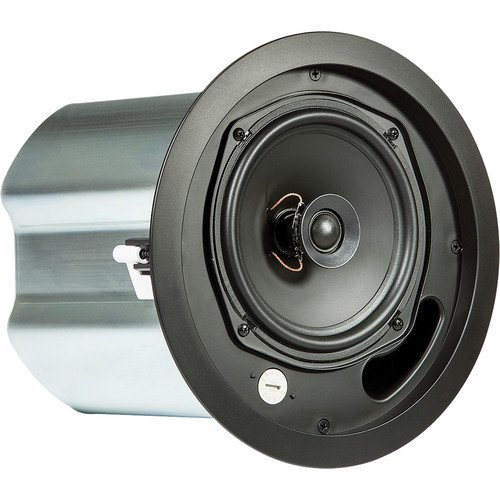

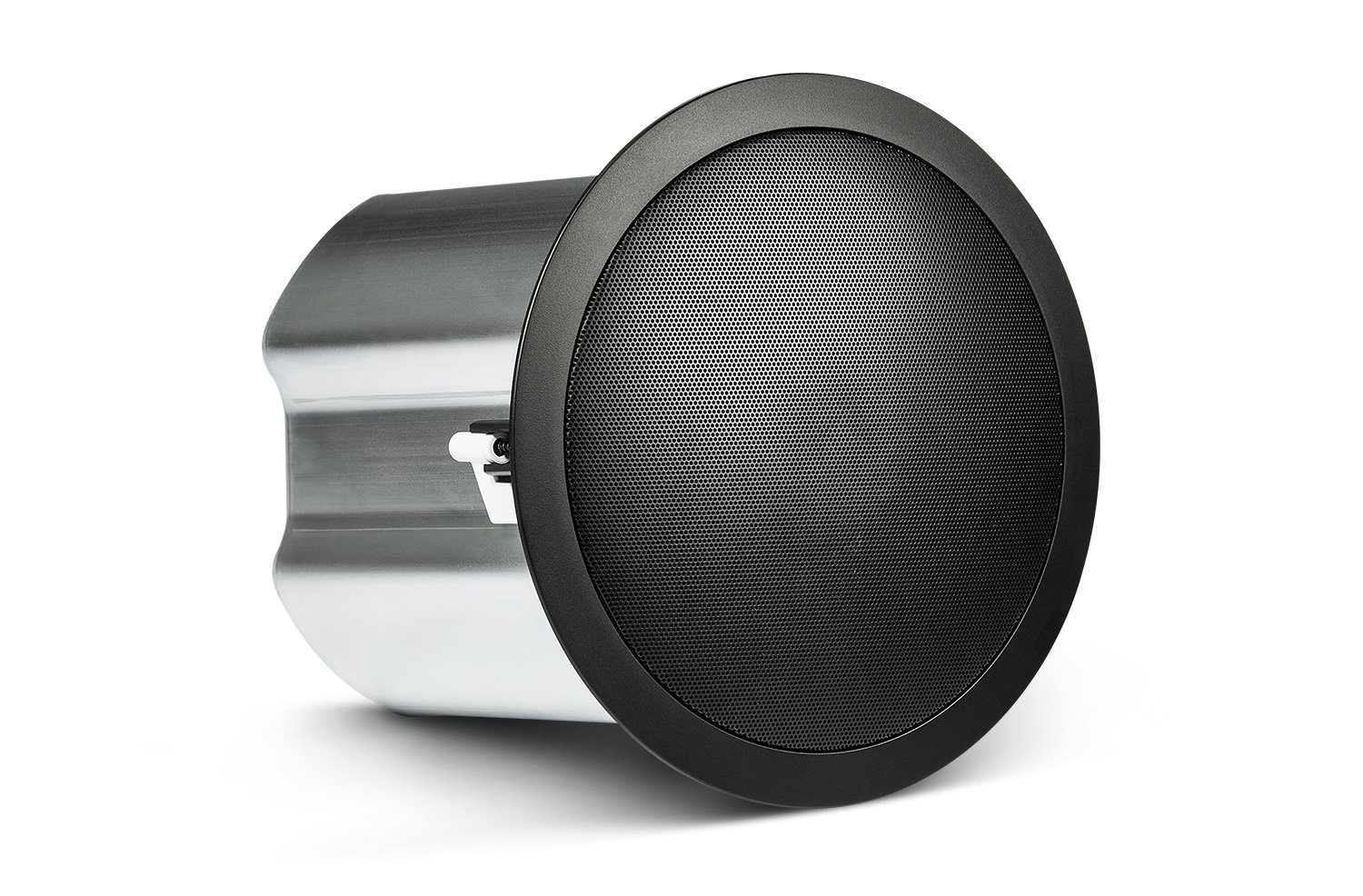

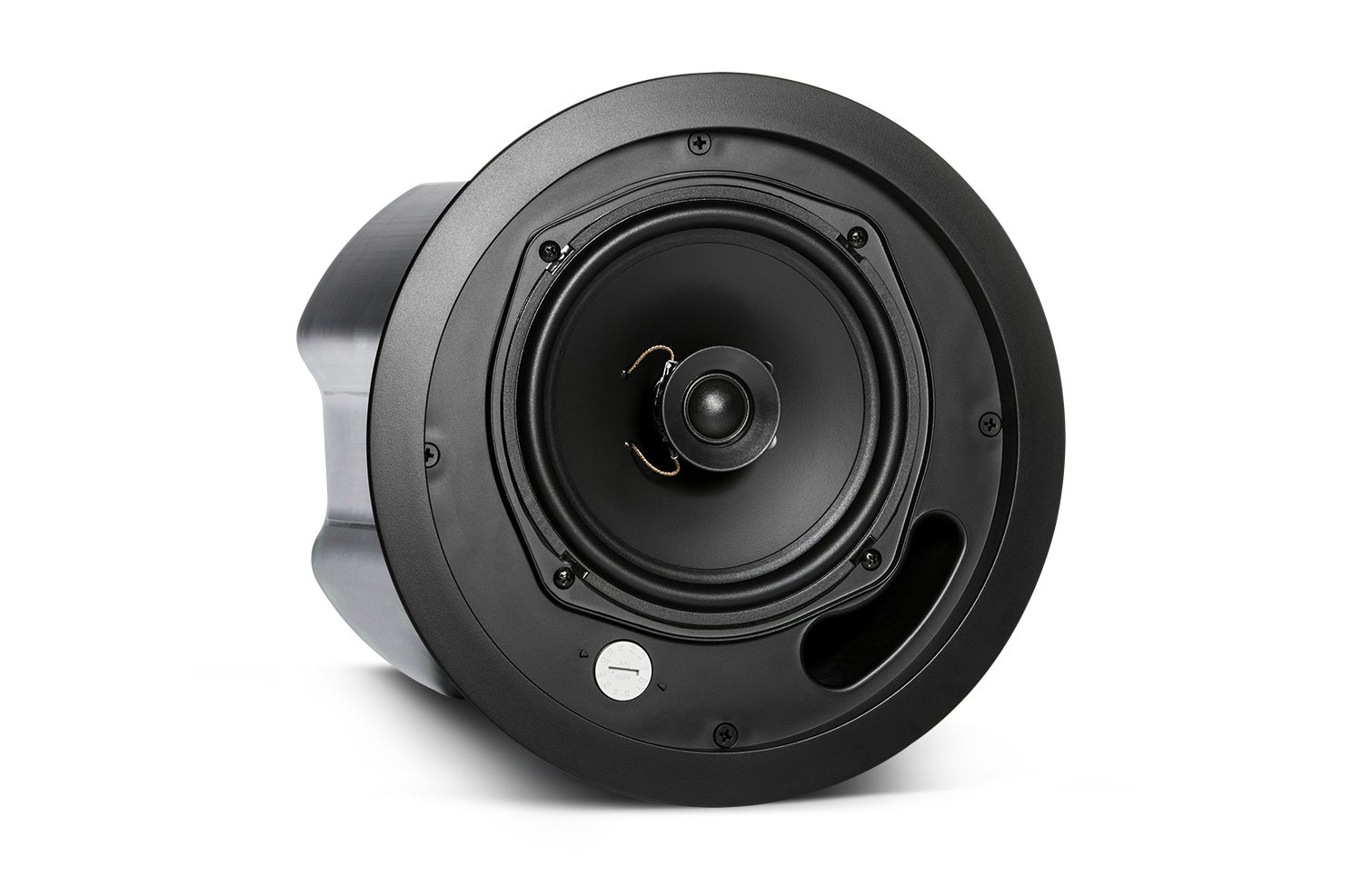

JBL Control 16C/T 6.5″ 2-Way Coaxial Ceiling Loudspeaker (Black) – Single Piece

JBL Professional

AED 832 inc VAT.

The Control 16C/T is a full-range ceiling speaker with a 165 mm cone driver and 19 mm liquid-cooled tweeter, featuring a vented, paintable baffle made of UV-resistant material, and includes a pre-attached blindmount backcan for rapid installation.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CONTROL 16C/T-BK Categories: , Brand:

Description

Control 16C/T Ceiling Speaker

The Control 16C/T is a high-performing ceiling speaker suitable for various audio applications. Featuring a 165 mm (6.5 inch) high-output polypropylene cone driver and a 19 mm (0.75 inch) soft-dome tweeter, this ceiling speaker offers a full-range sound experience. The design includes a vented, paintable baffle made from UV-resistant UL94-V0 and UL94-5HB materials, ensuring durability and aesthetic flexibility.

Pre-attached with a blind-mount backcan, the Control 16C/T allows for quick and straightforward installation, making it a practical choice for both commercial and residential setups.

Key Features

  • 165 mm (6.5 in) polypropylene cone driver with butyl rubber surround
  • 19 mm (0.75 in) liquid-cooled soft-dome tweeter
  • Combined 70V/100V and low impedance direct operation
  • Dual conduit/cable clamps for enhanced connectivity
  • Wide frequency range of 62 Hz – 20 kHz
  • High sensitivity of 91 dB
  • Available in white or black (-BK)

Specifications

Specification Details
Frequency Range (-10dB) 62 Hz – 20 kHz
Power Rating 100 Watts Continuous Program Power, 50 Watts Continuous Pink Noise (200W peak), 100 hr
Transformer Taps 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
Frequency Response (±3 dB) 96 Hz – 15 kHz
Sensitivity 91 dB (1kHz – 16 kHz)
Coverage Angle 110° conical
Directivity Factor (Q) 7.8
Directivity Index (DI) 8.2 dB
Maximum SPL (1m) 108 dB (low-impedance, 116 dB peak); 106 dB (top 70V/100V tap)
Impedance 8 ohms (in direct/bypass setting)
Crossover Network 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
Drivers LF Driver: 165 mm (6.5 in); HF Driver: 19 mm (3/4 in)
Input Connectors Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring Pin 1 = + In; Pin 2 = – In; Pin 3 = + Loop Thru; Pin 4 = – Loop Thru
Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials ABS baffle with UL94-V0/UL94-5VB fire rating; Zinc-plated steel backcan
Safety Agency UL1480, UL2043, NFPA90 & NFPA70 certified
Dimensions 253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth)
Ceiling Cutout Size Circular cutout with 223 mm (8.8 in) diameter
Ceiling Thickness Range Up to 38 mm (1.5 in); Optional thick-ceiling dog-ears available for up to 60 mm (2.4 in)
Safety Seismic Attachment One point, top surface
Net Weight 3.4 kg (7.4 lbs, one speaker)
Shipping Weight 11.2 kg (24.7 lbs, pair in master carton)
Included Accessories C-ring, tile support rails, cutout template, paint shield, locking connector, grille
Optional Accessories New construction bracket, Mud-ring construction bracket, Thick-ceiling dog-ears, Tile rail for 1200 mm (4 ft) spans
Color White or Black
Backcan Formed steel (“blind-mount”)
Baffle/Rim ABS with UL94-V0/UL94-5VB fire rating
Plenum Usage Yes, includes backcan
