Description

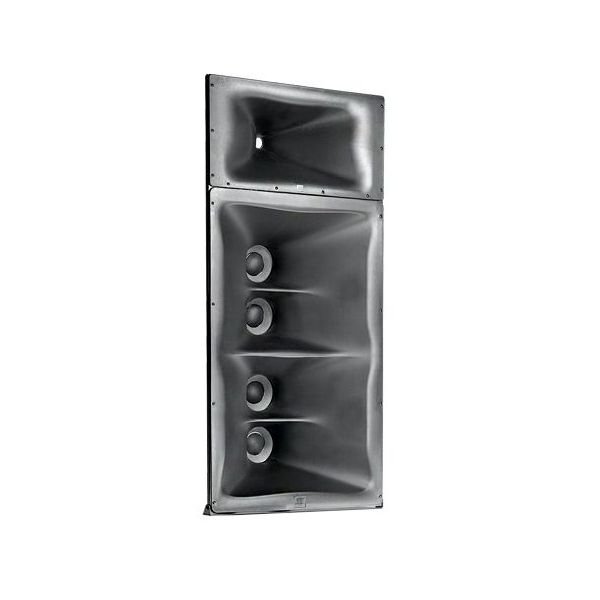

JBL Professional 5742-M/HF Mid-/High-Frequency Component

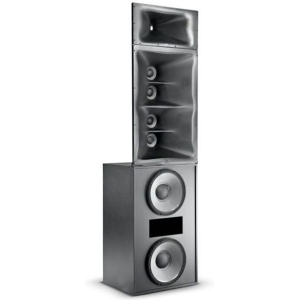

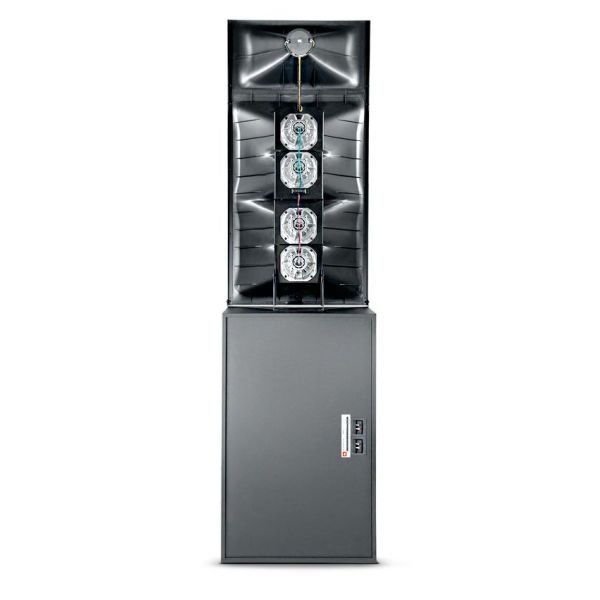

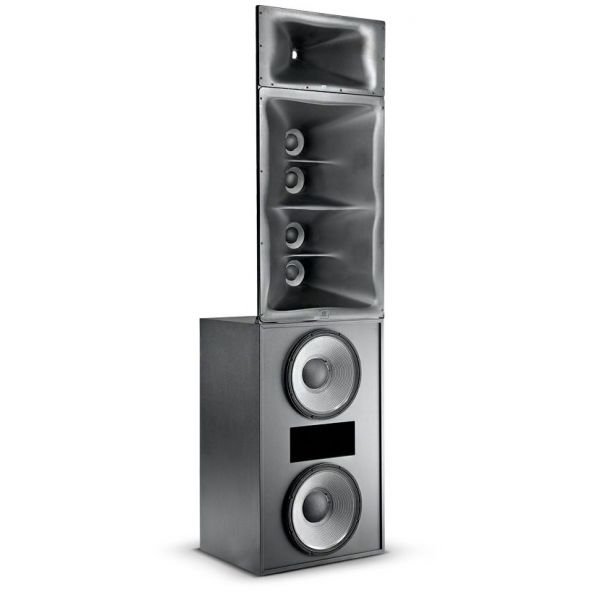

The JBL Professional 5742-M/HF is a passive mid-/high-frequency component designed for the 5742 4-way quad-amped cinema loudspeaker system. It ensures superior coverage, maximum power handling, and uniform acoustic output with minimal distortion. The integration of four 8″ Differential Drive mid-drivers and a 4″ neodymium high-frequency compression driver provides clear, high-fidelity audio across a wide range of frequencies.
Key Features

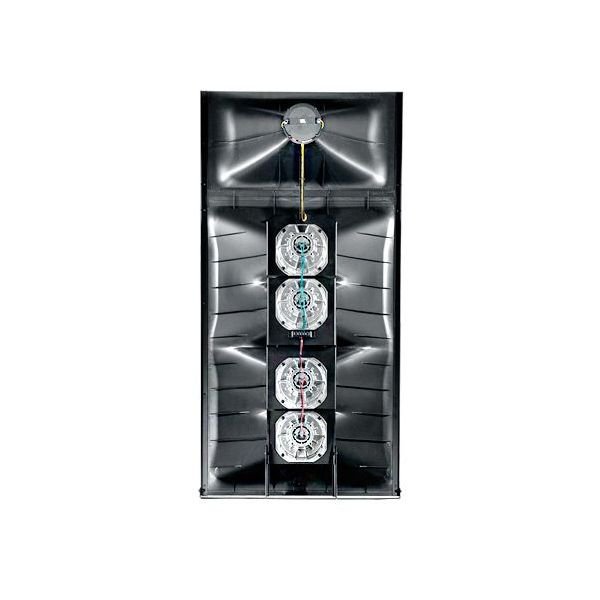

- 1400W midrange featuring four 8″ Differential Drive transducers
- Large format 4″ neodymium, damped titanium diaphragm, high-frequency compression driver
- Molded Optimized Aperture Waveguide technology for ultra-low distortion
- JBL Patented SSC (Screen Spreading Compensation)
- Focused coverage technology
- Flat front waveguide design for easy baffle wall installation
Specifications
| Specification |
Details |
| Active or Passive |
Passive |
| Speaker Configuration |
2-Way |
| Power Handling |
1400 W |
| Impedance |
8 Ohms (Nominal), 4 Ohms (Nominal) |
Drivers
| Specification |
Details |
| HF Driver |
1 x 1.5″ Waveguide-Coupled Compression Driver |
| HF Voice Coil |
4″ / 101.6 mm |
| MF Driver |
4 x 8″ / 203.2 mm Horn-Loaded |
| MF Voice Coil |
Dual 3″ / 76.2 mm |
| Magnet |
Neodymium |
Performance
| Specification |
Details |
| Sensitivity |
115 dB SPL |
Connectivity
| Specification |
Details |
| I/O Connectors |
Screw Terminal Speaker |
| Dimensions |
60.8 x 30 x 17.8″ / 1544.32 x 762 x 452.12 mm |
| Weight |
72.0 lb / 32.7 kg |
Packaging Info
| Specification |
Details |
| Package Weight |
105 lb |
| Box Dimensions (LxWxH) |
63 x 36 x 23″ |
