JBL Cinema 5732-M/HF Mid/High-Frequency Module for ScreenArray Loudspeaker System

JBL Cinema

AED 15086.26 inc VAT.

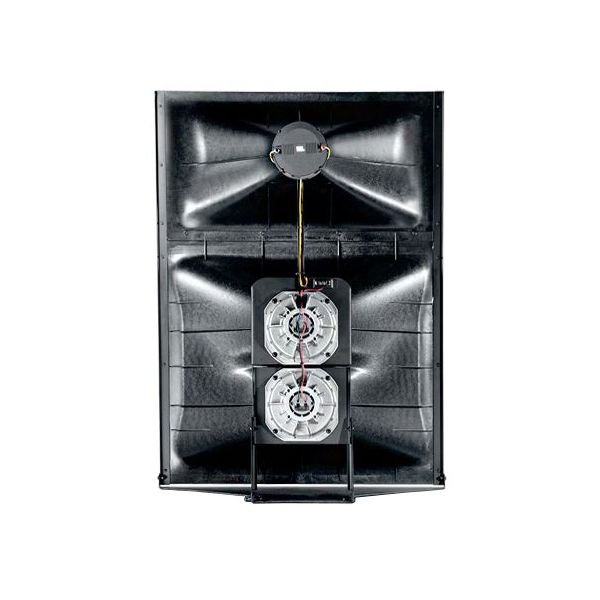

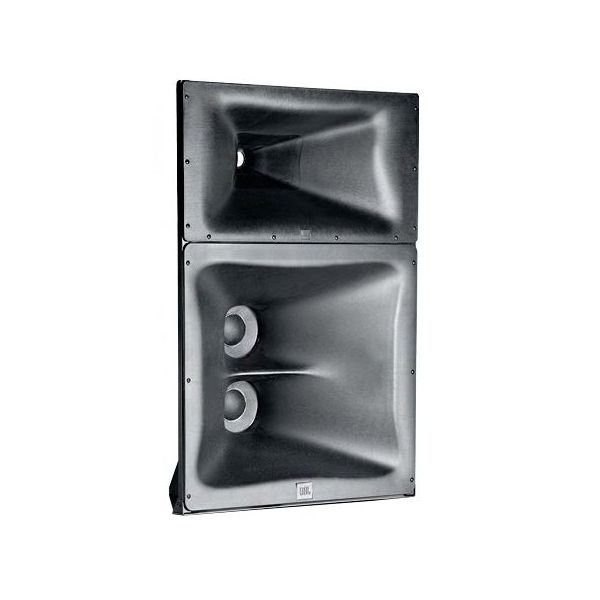

The JBL Professional 5732-M/HF is a passive mid-/high-frequency module designed as a replacement for the 5732 3-way tri-amped cinema loudspeaker system, featuring two 8″ Differential Drive mid-drivers and a 4″ neodymium high-frequency compression driver with waveguides for enhanced coverage, power handling, and low distortion.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 5732-M/HF Categories: , , Brand:

Description

JBL Professional 5732-M/HF Mid/High Frequency Component

The JBL Professional 5732-M/HF passive mid-/high-frequency component serves as a replacement module for the 5732 3-way tri-amped cinema loudspeaker system. It delivers exceptional coverage, maximum power handling, and consistent acoustic output with minimal distortion. Ideal for cinema applications, this module boasts advanced technology to enhance audience experience.

Key Features

  • 700W midrange with two 8″ Differential Drive transducers
  • 4″ neodymium high-frequency compression driver with damped titanium diaphragm
  • Molded Optimized Aperture Waveguide technology for low distortion
  • JBL patented Screen Spreading Compensation (SSC)
  • Focused coverage technology for improved sound projection
  • Flat front waveguide design facilitating easy baffle wall installation

Specifications

Active or Passive Passive
Speaker Configuration 2-Way
Power Handling 700 W for 2 hours / 150 W
Impedance 4 Ohms (Minimum, Nominal) / 8 Ohms (Minimum, Nominal)
High-Frequency Driver 1 x 1.5″ / 38.1 mm Compression Driver
High-Frequency Voice Coil 4″ / 101.6 mm
Low-Frequency Driver 2 x 8″ / 203.2 mm Woofer
Low-Frequency Voice Coil 3″ / 76.2 mm
Magnet Type Neodymium (High-Frequency)
Sensitivity 110 dB SPL / 115 dB SPL
I/O Connectors Barrier Strip
Dimensions (WxHxD) 41.5 x 30 x 17.8″ / 1054.1 x 762 x 452.12 mm
Weight 48 lb / 21.8 kg
Package Weight 70 lb
Box Dimensions (LxWxH) 44.5 x 35 x 22.5″
