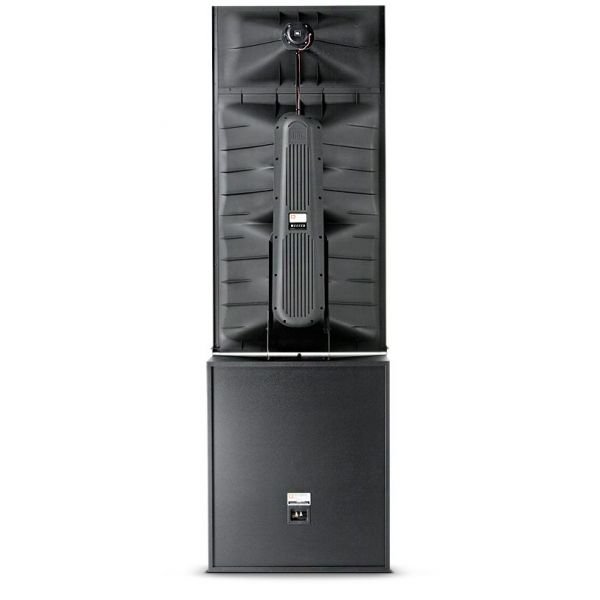

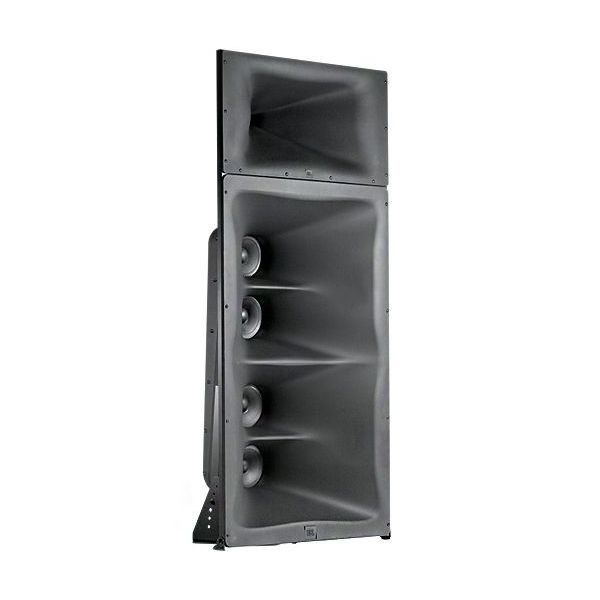

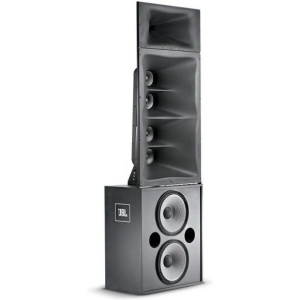

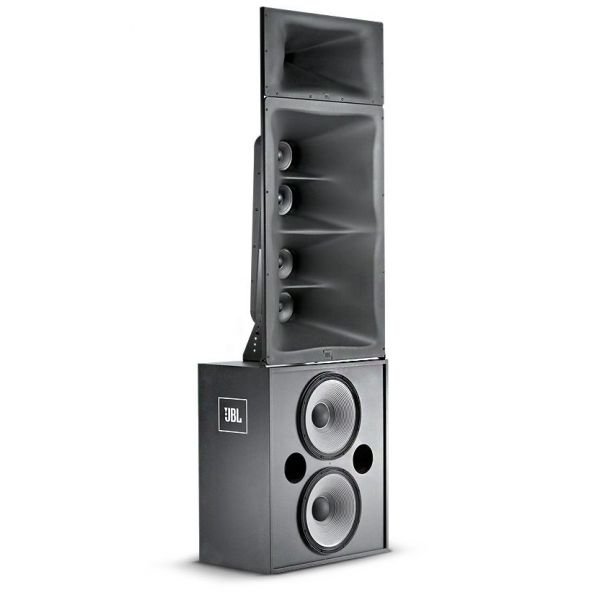

Name: JBL Cinema 4732-M/HF-T Top-Mid Section Three-Way ScreenArray Loudspeaker System
Brand: JBL Cinema
SKU: 4732-M/HFD
Price: 13853.11 AED
Availability: InStock

JBL Cinema 4732-M/HF-T Top-Mid Section Three-Way ScreenArray Loudspeaker System

AED 13853.11 inc VAT.

The 4732 ScreenArray is a sophisticated three-way sound system designed for optimal film audio reproduction in medium to large cinema settings, delivering enhanced auditory experiences with precision and clarity.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

Key Features

The 4732 ScreenArray is designed for precise film sound reproduction in medium to large cinema environments, offering a true three-way system for optimal sound performance.

Three-way ScreenArray design ensuring maximum output with optimal coverage and minimal distortion
Triamplified or Biamplified operational capabilities
Certified for THX applications (4732T)
Ships fully assembled for easy installation
Advanced Aperture Waveguide technology providing ultra-low distortion and uniform frequency response
SSC Screen Spreading Compensation technology
Focused Coverage Technology for precise audio distribution
Flat-front waveguide design suitable for baffle wall installation and shallow profile for minimal space requirements

Specification	Details
Frequency Range	30 Hz – 20 kHz
Frequency Response	40 Hz – 19 kHz (±3 dB)
System Sensitivity	107 dB, 2.83V @ 1m (3.3 ft)
Rated Maximum SPL	130 dB @ 1m (3.3 ft), 136 dB peak
System Input Power Rating	LF: 800 W, M/HF: 200 W, 4732-T HF: 85 W
Horizontal Coverage Angle	90° (-6 dB)
Vertical Coverage Angle	20° up, 30° down (-6 dB)
Directivity Factor (Q)	10.0
Directivity Index (DI)	10 dB
Crossover Frequencies	4732: 250 Hz, 4732-T: 1.2 kHz
Dimensions (H x W x D)	2427 x 762 x 450 mm (95.6 x 30 x 17.75 in)
Net Weight	84.4 kg (186 lbs)
Shipping Weight	103.5 kg (228 lbs)
