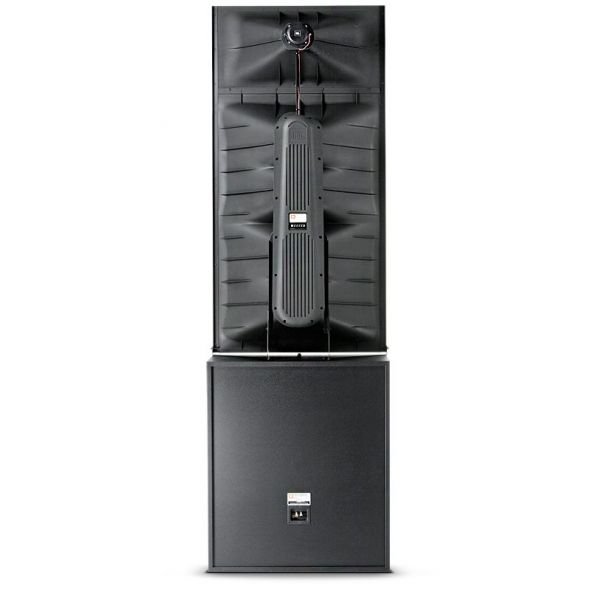

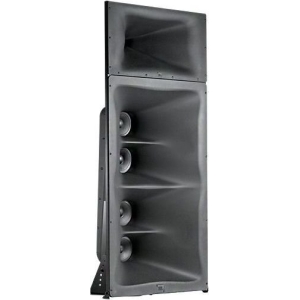

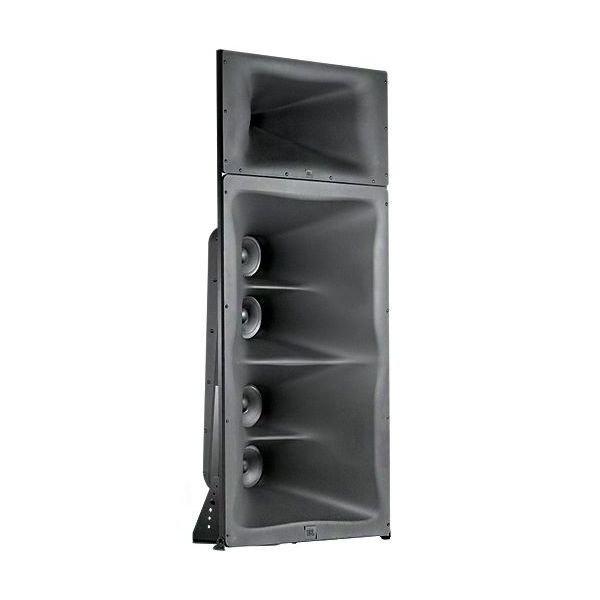

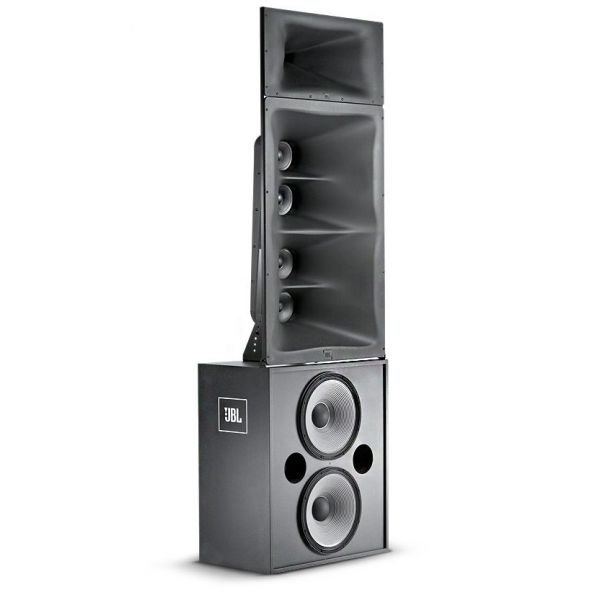

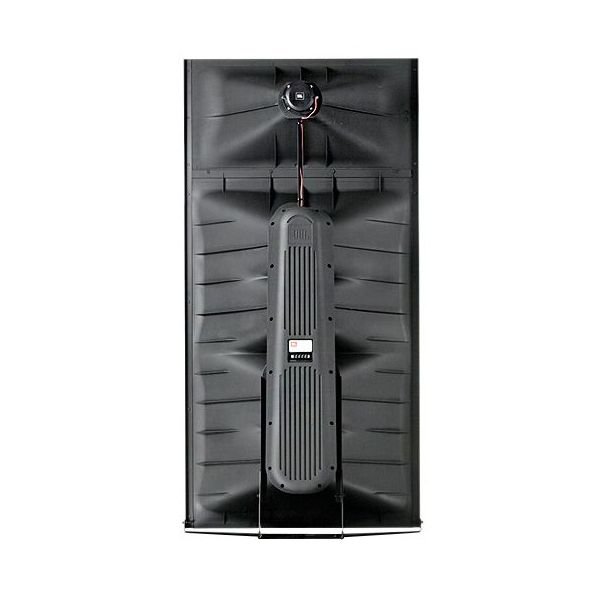

JBL Cinema 4732-M/HF-T Mid-High Module for ScreenArray Passive Cinema Loudspeaker System

JBL Cinema

AED 14090.36 inc VAT.

The JBL Professional 4732-M/HF-T mid-high component, designed for the 4732-T 3-way cinema loudspeaker, integrates four 6.5″ mid-drivers and a 3″ high-frequency compression driver with molded aperture waveguides, optimizing coverage, power handling, and low distortion. It compensates for high-frequency spreading through perforated screens, ensuring seamless acoustic transitions and superior audience coverage.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 4732-M/HF-T Categories: , , Brand:

Description

JBL Professional 4732-M/HF-T Mid-High Component

The JBL Professional 4732-M/HF-T mid-high component is a crucial replacement module for the 4732-T 3-way cinema loudspeaker system. Engineered for superior coverage, it guarantees maximum power handling and uniform acoustic power output, combined with low distortion for an unparalleled audio experience.

This module features four 6.5″ mid-drivers and a 3″ high-frequency compression driver. Both include molded aperture waveguides for optimized audio projection. The ScreenArray design ensures ideal power response and directivity control, creating seamless transitions between acoustic sections.

Key Features

  • Replacement mid-/high-frequency component for 4732-T cinema loudspeaker system
  • Large format 3″ neodymium, titanium diaphragm, high-frequency compression driver
  • Molded Optimized Aperture Waveguide technology for low distortion and uniform frequency response
  • Screen Spreading Compensation (SSC)
  • Flat front waveguide design for easy baffle wall installation

Specifications

Specification Details
Configuration Passive 3-Way
Enclosure Type Loudspeaker
Total Power Capacity MF: 200 W Program (at 4 Ohms)
HF: 85 W Program (at 8 Ohms)
System Impedance HF: 1 x 8 Ohms
MF: 4 x 4 Ohms
HF Driver 1 x 3″ / 76.2 mm Asymmetrical Horn Titanium Compression Driver with 1.5″ / 38.1 mm Throat
HF Voice Coil 3″ / 76.2 mm
MF Driver 4 x 6.5″ / 165.1 mm
MF Voice Coil 1.5″ / 38.1 mm
Coverage Angle 90° H x 50° V
Speaker Sensitivity HF: 115 dB SPL
MF: 109 dB SPL
Audio I/O Barrier Strip
Dimensions 60.8 x 30.0 x 17.7″ / 1544.3 x 762.0 x 449.6 mm
Weight 78 lb / 35.4 kg
