Passive Speakers

JBL Cinema 3732-M/HF-T Mid-High Module for ScreenArray Passive Loudspeaker System (Tri-Amp)

JBL Cinema

AED 10854.09 inc VAT.

The JBL Professional 3732 M/HF-T Component Module is a passive replacement for the 3732-T tri-amplified 3-way cinema loudspeaker system, featuring dual 6.5″ mid-drivers, a 3″ high-frequency compression driver with molded waveguides, and the ScreenArray design for improved coverage and low distortion.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 3732-M/HF-T Categories: , , Brand:

Description

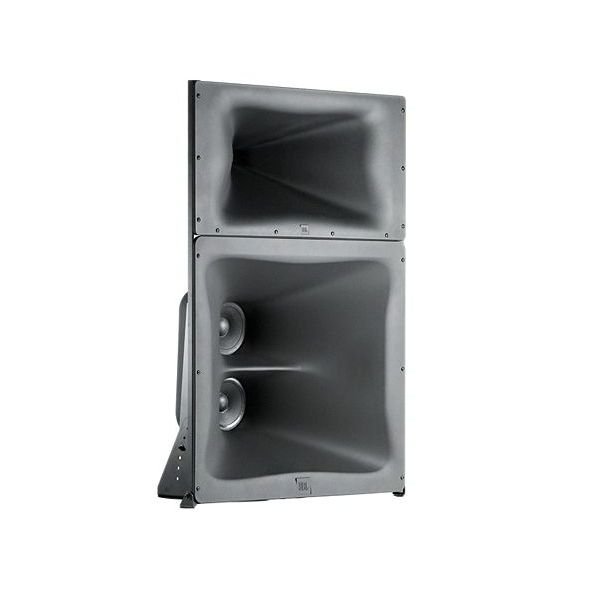

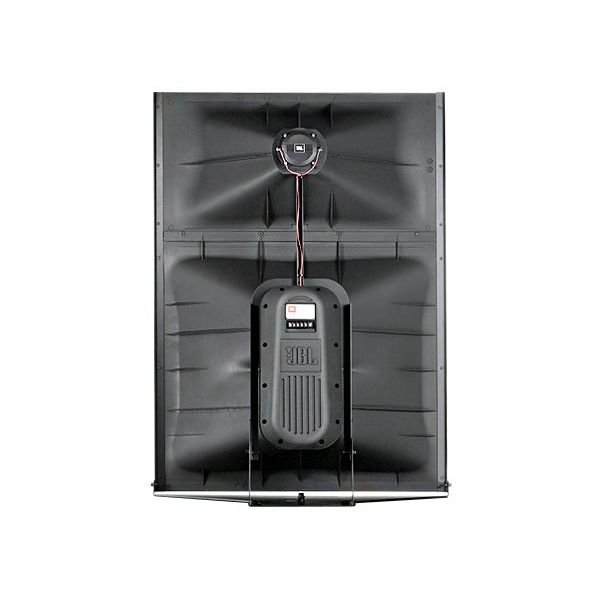

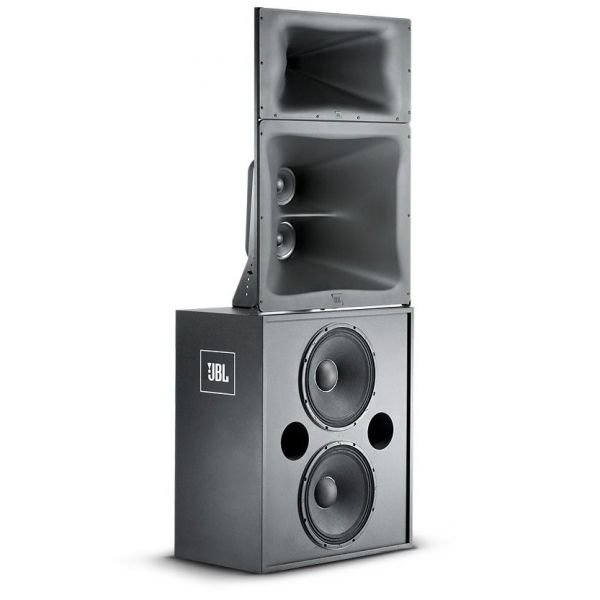

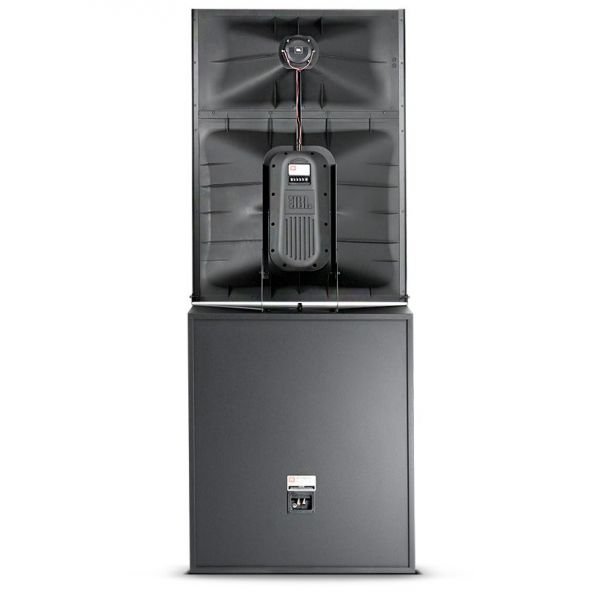

JBL Professional 3732 M/HF-T Component Module

The passive JBL Professional 3732 M/HF-T Component Module is a replacement for the 3732-T tri-amplified 3-way cinema loudspeaker system. It is engineered to deliver superior coverage, maximum power handling, and uniform acoustic power output while maintaining low distortion levels. This module ensures an exceptional sound experience with crystal-clear mids and highs, ideal for cinema installations.

Key Features

  • Replacement mid-/high-frequency component section for the 3732-T cinema loudspeaker system
  • Large format 3” neodymium, titanium diaphragm, high-frequency compression driver
  • Molded Optimized Aperture Waveguide technology for low distortion and uniform frequency response
  • Screen Spreading Compensation (SSC)
  • Focused coverage technology
  • Flat front-waveguide design for easy baffle wall installation

Specifications

Specification Details
Mid Frequency Driver 2 x 165H, 6.5″ / 165 mm Diameter, 1.5″ / 38 mm Voice Coil
High Frequency Transducer 1 x 2432H, 3″ / 75 mm Titanium Diaphragm and Voice Coil Diameter, 1.5″ / 38 mm Exit Diameter
Input Connectors Screw Terminal Barrier Strip
Nominal Impedance MF: 12 Ohms, HF: 8 Ohms
Minimum Impedance 6.1 Ohms at 11 kHz
Sensitivity MF: 107 dB SPL, 2.83 V at 3.3′ / 1 m, HF: 115 dB SPL, 2.83 V at 3.3′ / 1 m
Power Handling MF: 150 W, 300 W Recommended Amplifier; HF: 85 W, 200 W Recommended Amplifier
Dimensions 41.5 x 30 x 17.8″ / 105.4 x 76.2 x 45 cm
Weight 51 lb / 23.1 kg
