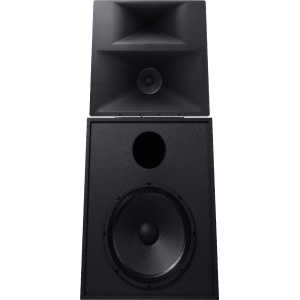

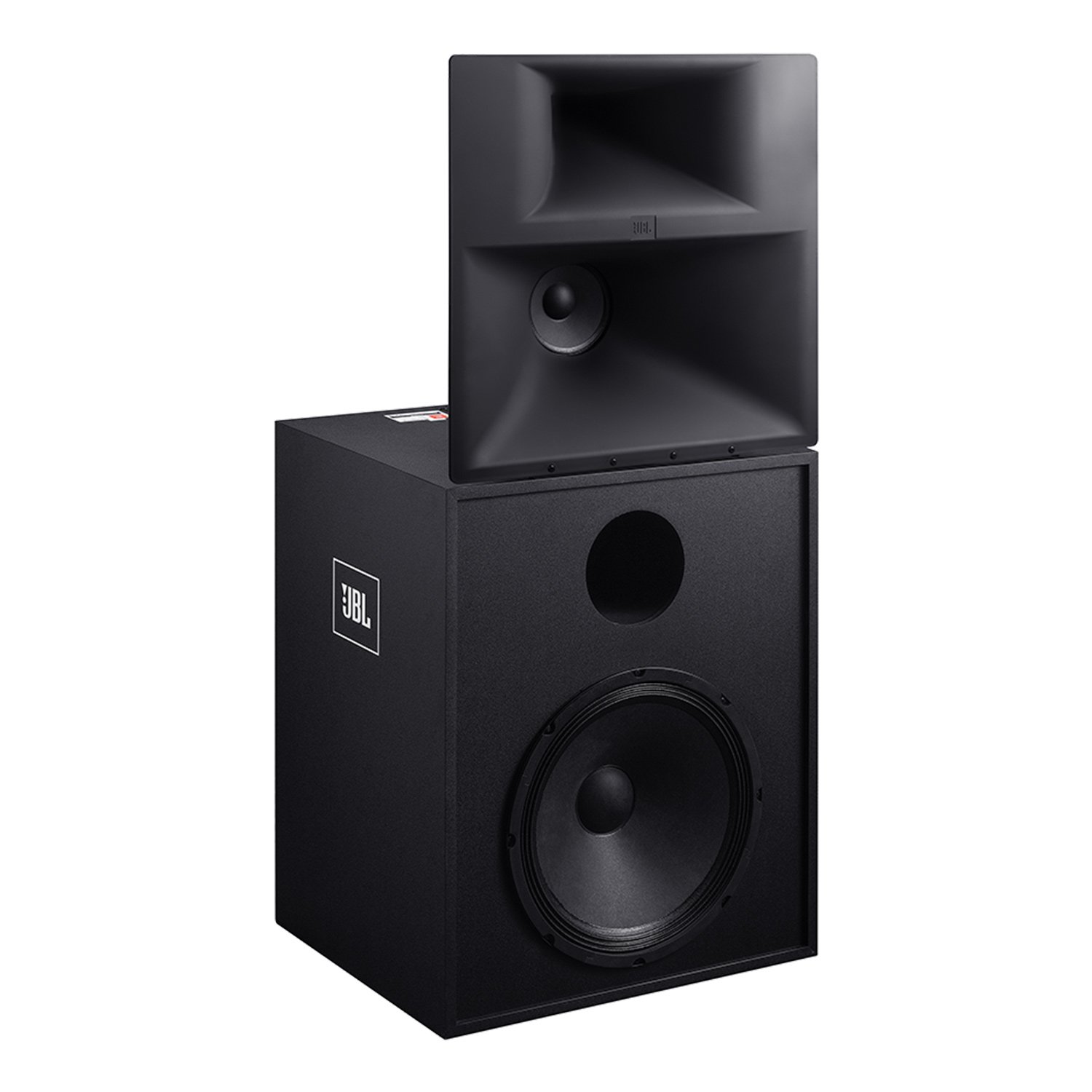

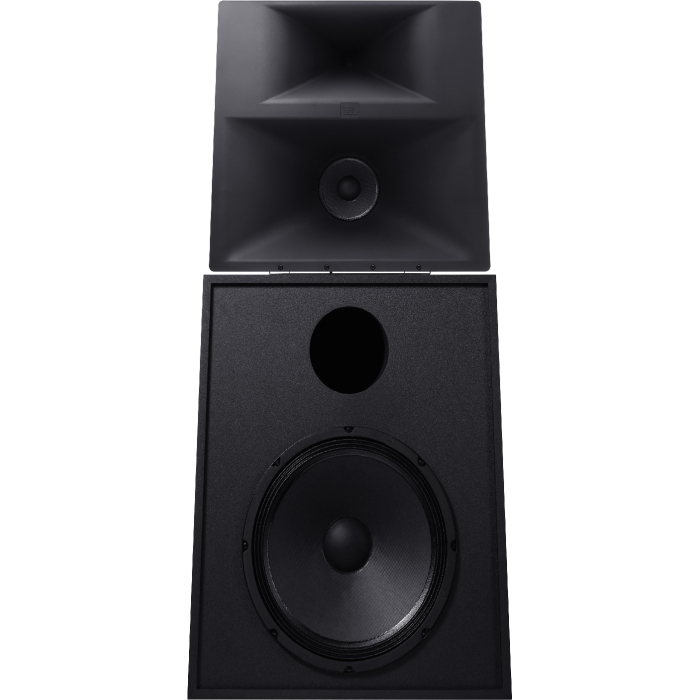

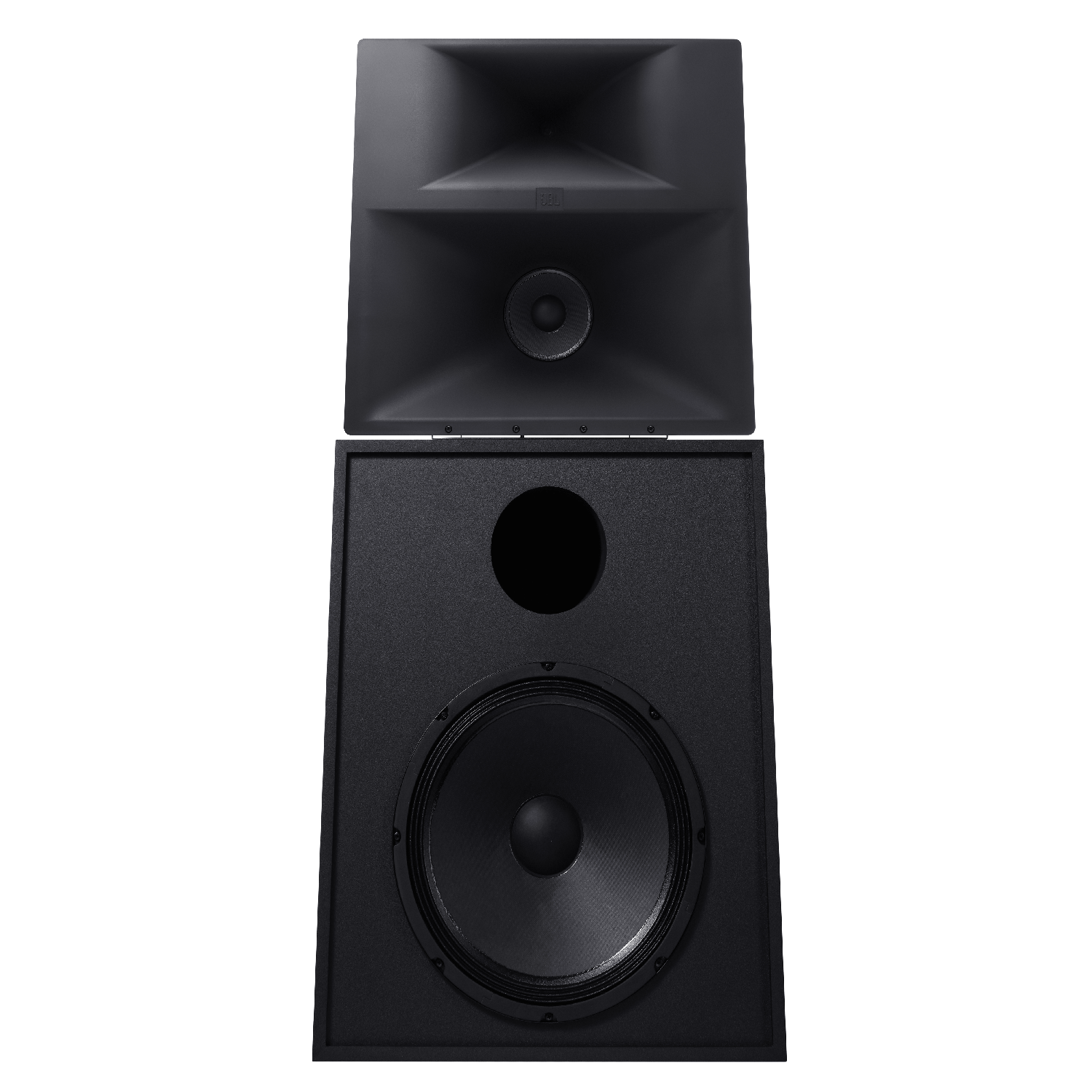

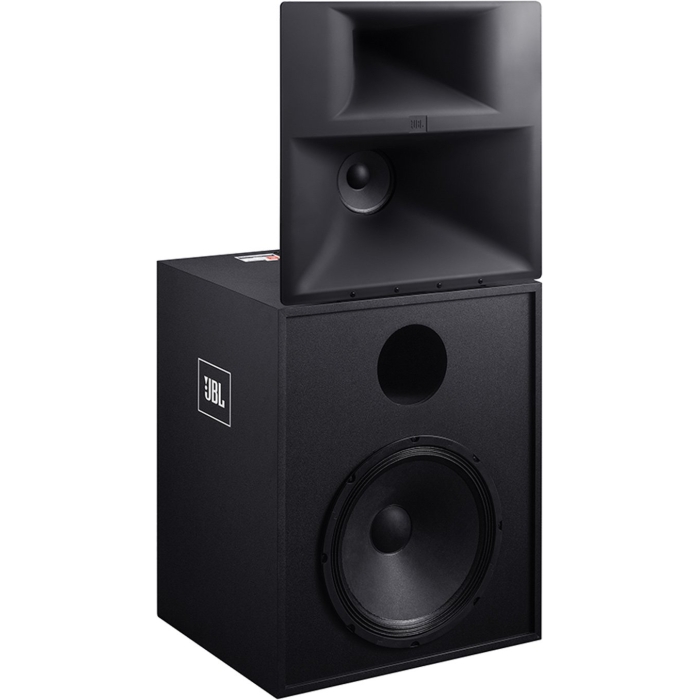

Name: JBL Cinema 3732-M/HF Mid-High Module for ScreenArray Cinema Loudspeaker System
Brand: JBL Cinema
SKU: 3132-M/HF
Price: 1470.56 AED
Availability: InStock

JBL Cinema 3732-M/HF Mid-High Module for ScreenArray Cinema Loudspeaker System

AED 1470.56 inc VAT.

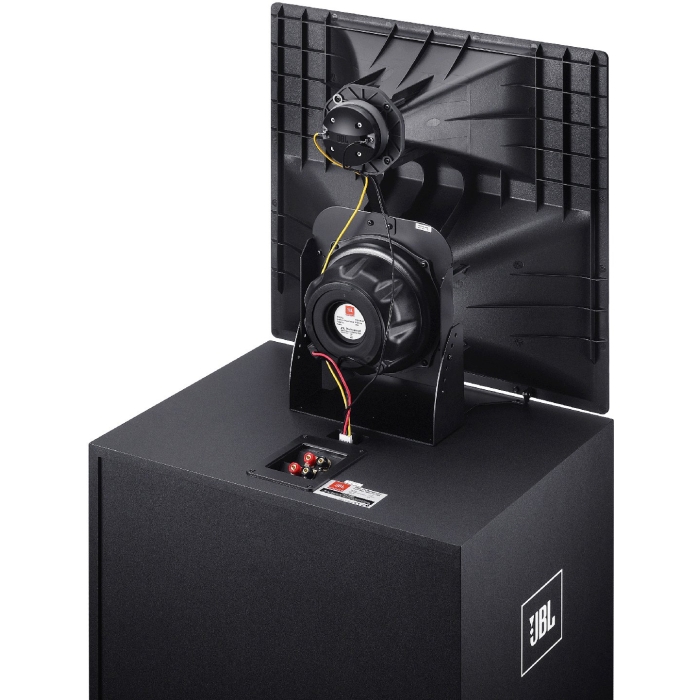

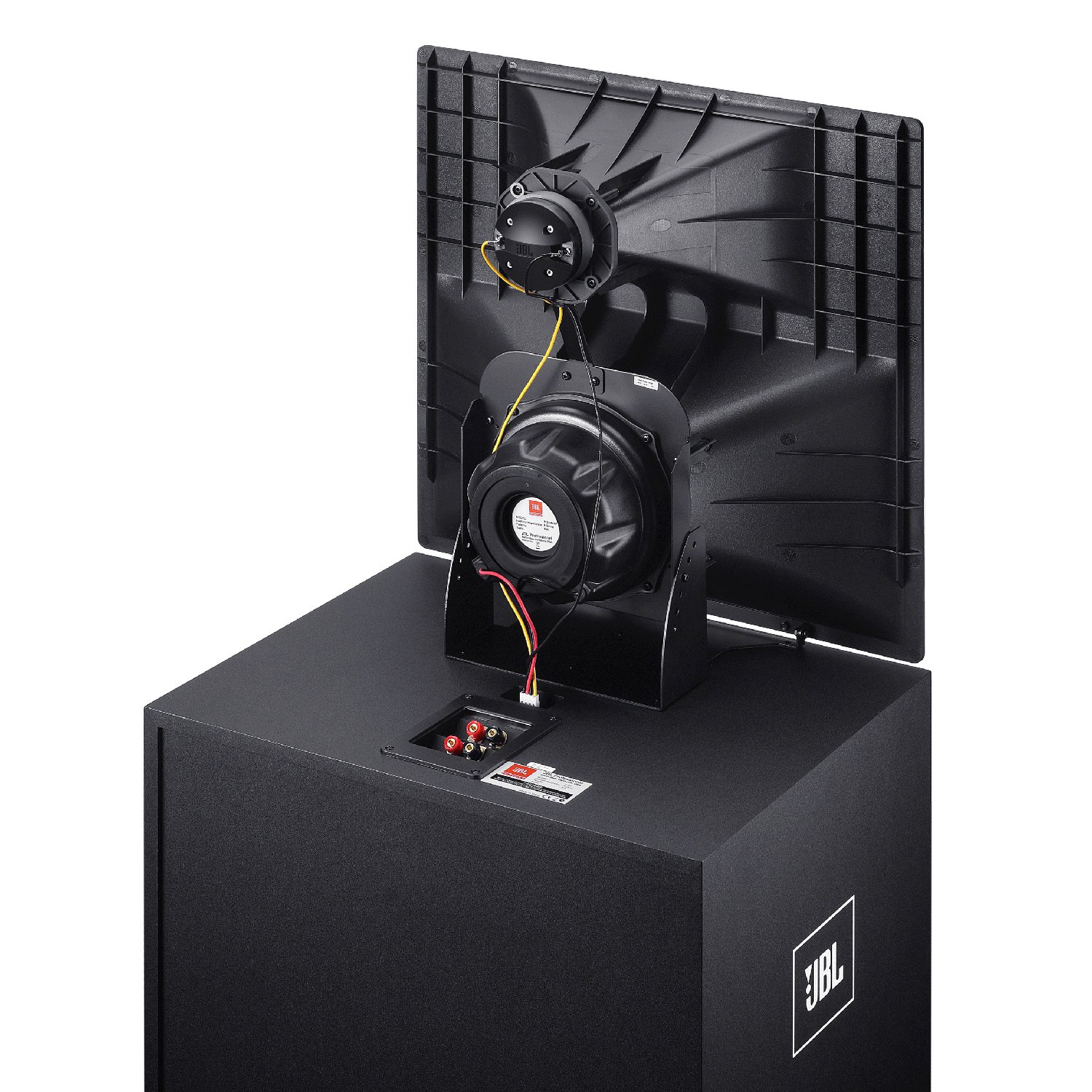

The JBL Professional 3732 M/HF Component Module is a passive replacement part for the 3732 cinema loudspeaker system, offering superior coverage, high power handling, and consistent acoustic output with low distortion. It features dual 6.5″ mid-drivers and a 3″ high-frequency compression driver, both with molded waveguides to enhance audience coverage and power response.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

Key Features

The JBL Professional 3732 M/HF Component Module is expertly designed for the 3732 bi-amplified 3-way cinema loudspeaker system. It ensures exceptional coverage, superior power handling, and consistent acoustic output with minimal distortion.

High-performance replacement component for the 3732 cinema loudspeaker system
Includes dual 6.5″ mid-drivers and a 3″ high-frequency compression driver
Optimized Aperture Waveguide technology enhances sound quality
Screen Spreading Compensation for improved coverage
Focused coverage technology for precise sound dispersion
Flat front-waveguide design facilitates easy installation

Specifications

Specification	Details
Mid Frequency Driver	2 x 165H, 6.5″ / 165 mm Diameter, 1.5″ / 38 mm Voice Coil
High Frequency Transducer	1 x 2432H, 3″ / 75 mm Titanium Diaphragm and Voice Coil Diameter, 1.5″ / 38 mm Exit Diameter
Input Connectors	Screw Terminal Barrier Strip
Nominal Impedance	M/HF: 8 Ohms
Minimum Impedance	6.1 Ohms at 11 kHz
Sensitivity	Free-Field Sensitivity: 103 dB SPL, 2.83 V at 3.3′ / 1 m
Power Handling	M/HF Input Power Handling (AES 100-Hour Rating): 150 W, 300 W Recommended
Dimensions	41.5 x 30.0 x 17.8″ / 105.4 x 76.2 x 45 cm
Weight	51 lb / 23.1 kg
