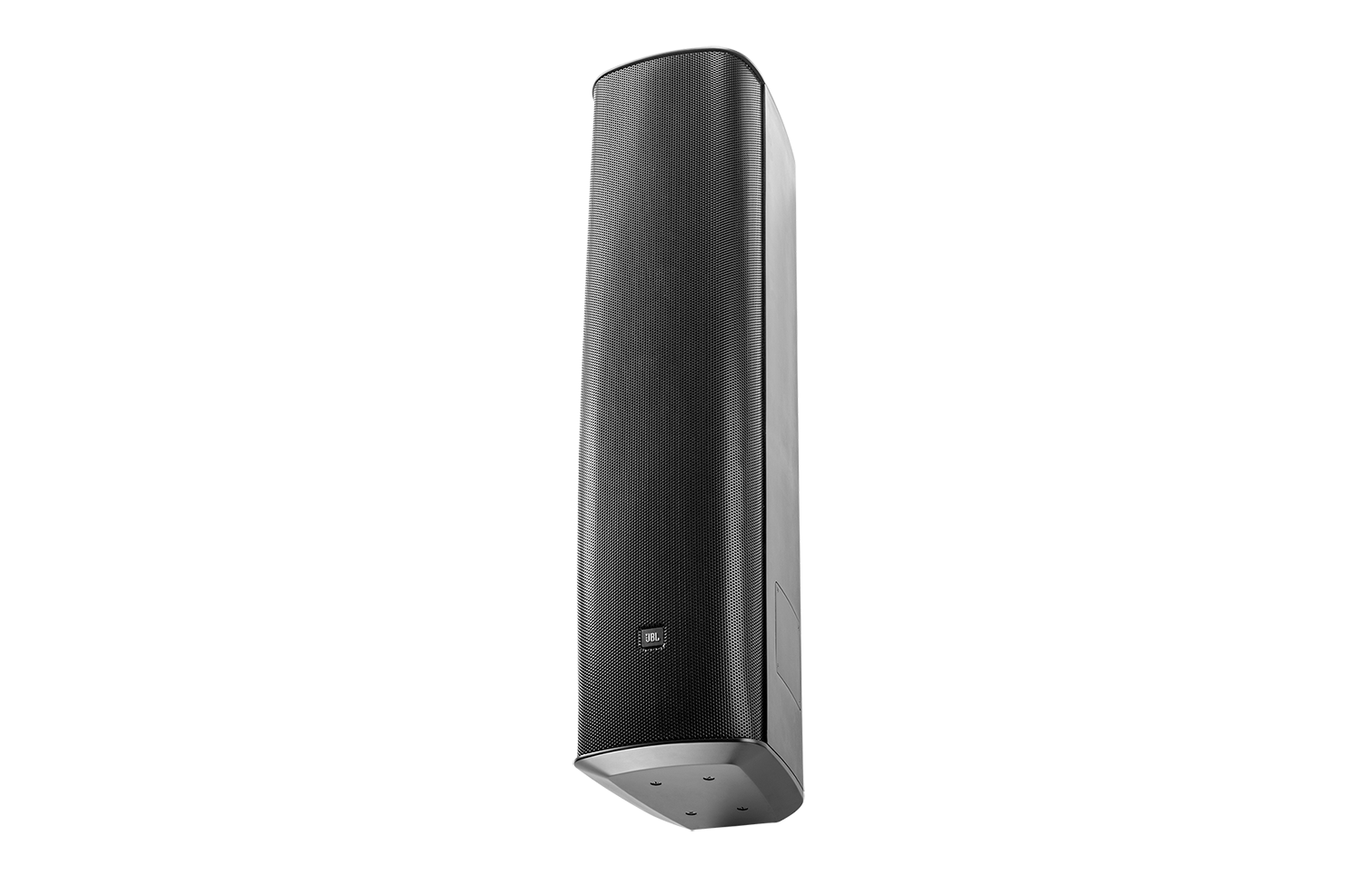

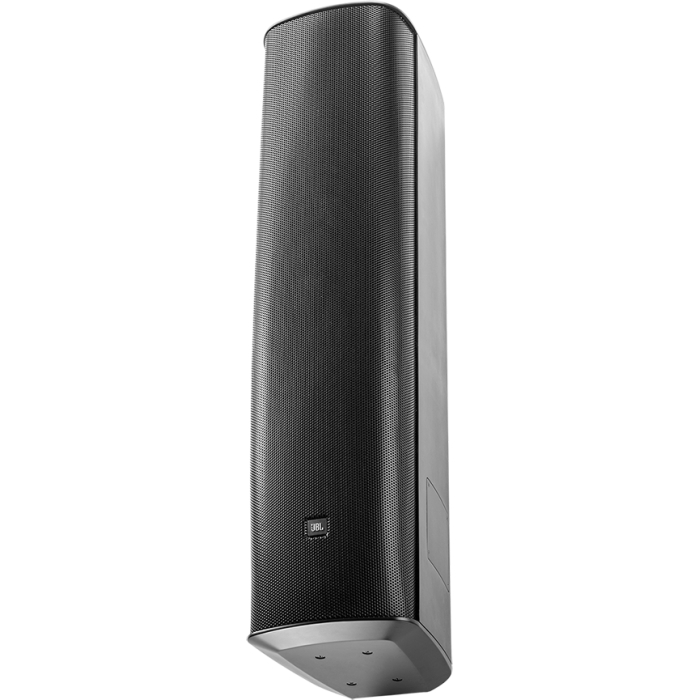

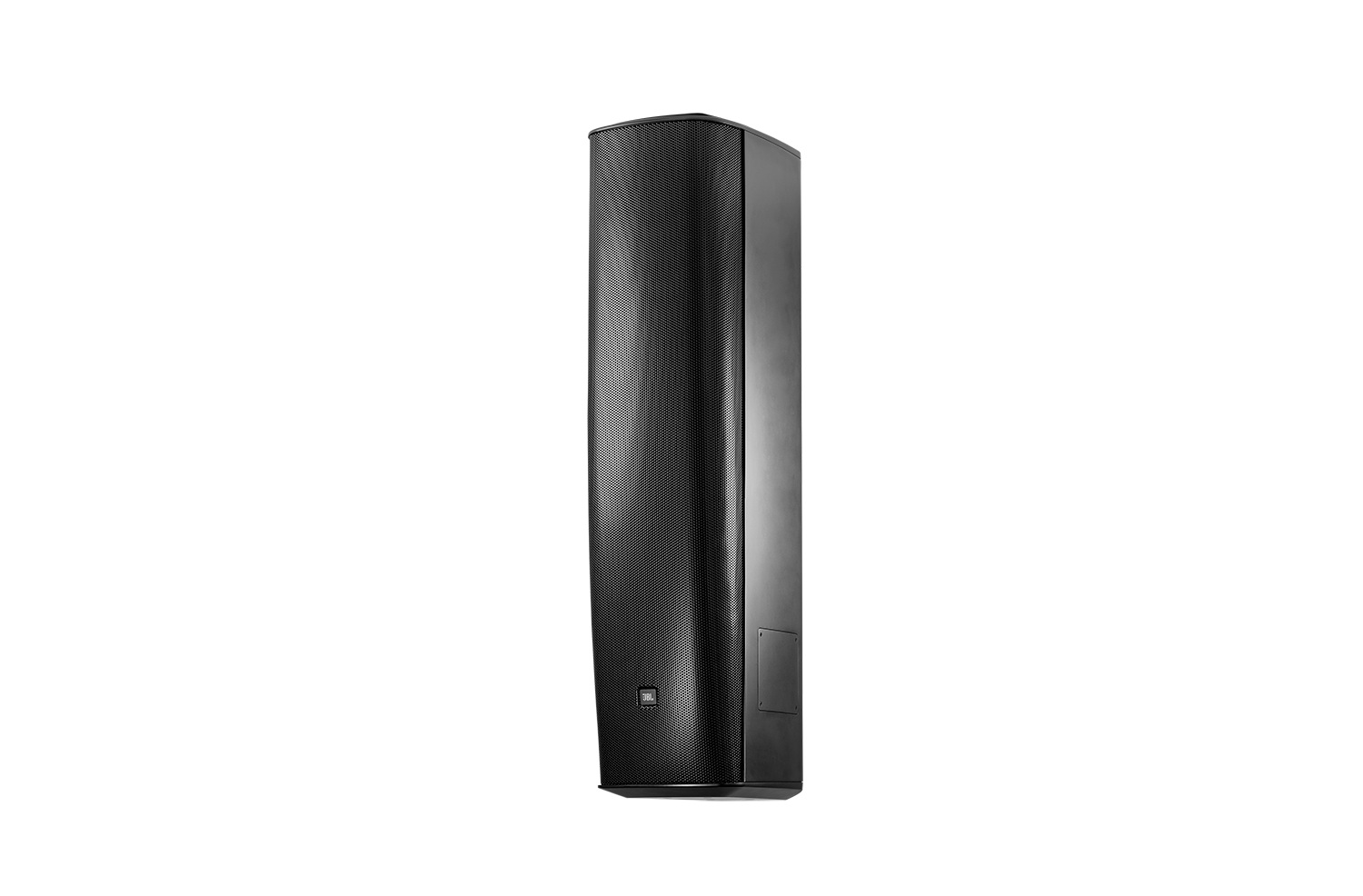

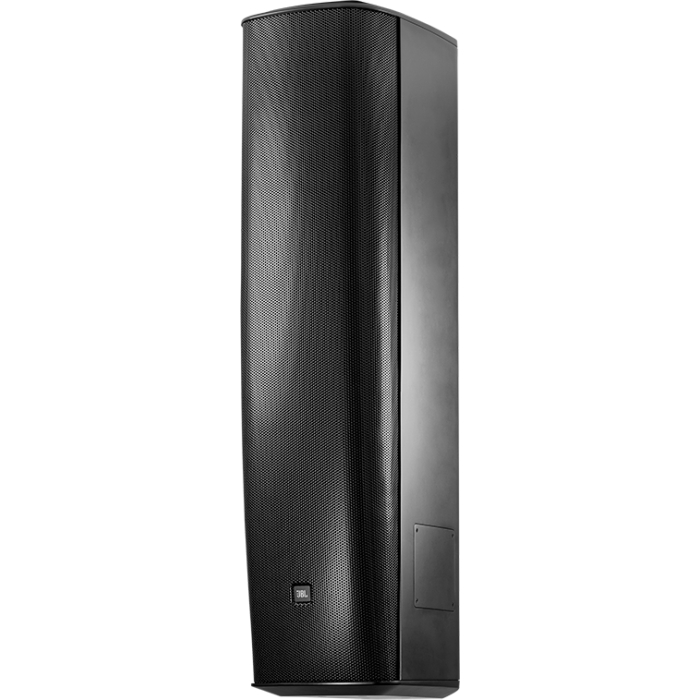

JBL CBT1000 Black Two-Way Line Array Column Loudspeaker with Constant Beamwidth Technology

AED 12953.85 inc VAT.

The CBT1000 loudspeaker leverages advanced Constant Beamwidth Technology™ with adjustable vertical coverage and a tapered horizontal waveguide, offering precise pattern control for enhanced adaptability to various room geometries in diverse listening environments.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

JBL CBT1000 Line Array Column Loudspeaker

Experience the next generation in audio clarity and precision with the JBL CBT1000. Leveraging the latest in Constant Beamwidth Technology™ (CBT), this innovative loudspeaker offers unparalleled control over sound dispersion, ensuring optimal audio coverage in any environment. Whether for expansive venues or compact spaces, the CBT1000’s adjustable vertical coverage and unique tapered horizontal waveguide provide flexibility and superior sound quality for varied listening spaces.

Key Features

Asymmetrical vertical coverage adjusts to make front-to-back sound levels more consistent.
Equipped with twenty-four 25 mm (1 in) high-power soft dome tweeters and six 165 mm (6.5 in) high-excursion low-frequency drivers arranged coaxially.
Constant Beamwidth Technology™ maintains consistent directivity, reducing out-of-coverage lobing.
Vertical pattern coverage is adjustable with sixteen different combinations of ‘Pattern Up’ and ‘Pattern Down’ angles without external DSP processing.
The patent-pending Tapered Horizontal Waveguide allows for variable horizontal dispersion, enhancing coverage in both front and rear corners.
Single-speaker room coverage at high SPL with strong bass response down to below 40 Hz.
Switchable voicing for flat response in music mode or mid-range presence peak in speech mode.
Includes a swivel (pan)/tilt wall bracket for flexible installation.

Specifications

Specification	Details
Drivers	Six 165 mm (6.5 in) LF drivers, Twenty-four 25 mm (1 in) HF drivers
Frequency Range (-10dB)	45 Hz – 20 kHz
Sensitivity	102 dB (highest setting); 95 dB (lowest setting)
Impedance	4 ohms above 1 kHz; 8 ohms below 800 Hz
Power Rating	1500 W (6000 W peak), 2 hrs; 1000 W (4000 W peak), 100 hrs
Maximum Input Voltage	65.0 Volts RMS (2 hrs), 130.0 Volts Peak
Maximum SPL (1m)	131 dB continuous average pink noise, 134 dB continuous program, 137 dB Peak
Vertical Coverage Settings	Total of sixteen patterns: varies from -6dB @ +7° to -6dB @ -20° depending on the setting
Horizontal Coverage	100° to 160° continuous variable (long to short throw)
Recommended High-Pass	35Hz, 24 dB/oct or greater
Low Frequency Drivers	6 pcs, 165 mm (6.5 in), neodymium motors, high linear drive
High Frequency Drivers	24 pcs, 25 mm (1 in), neodymium, moisture resistant
Enclosure	Fiberglass reinforced ABS, powder-coated 1050 aluminum grille
Outdoor Capability	IP-55 rated with optional MTC-PC2 cover
Color	Black (RAL9004) or White (RAL9016)
Insert Points	14 individual M8 inserts, multiple mount arrangements
Mounting	Swivel/tilt wall bracket included, standard mounting points
Dimensions (H x W x D)	1020 mm x 250 mm x 345 mm (40.2 x 9.9 x 13.6 in)
Net Weight	24.5 kg (54 lbs)
Shipping Weight	38.6 kg (85 lbs)
Included Accessories	Two-piece swivel (pan)/tilt wall bracket
Optional Accessories	MTC-CBT-SUS3 suspension bracket kit, MTC-PC2 terminal panel cover
