Column Speakers

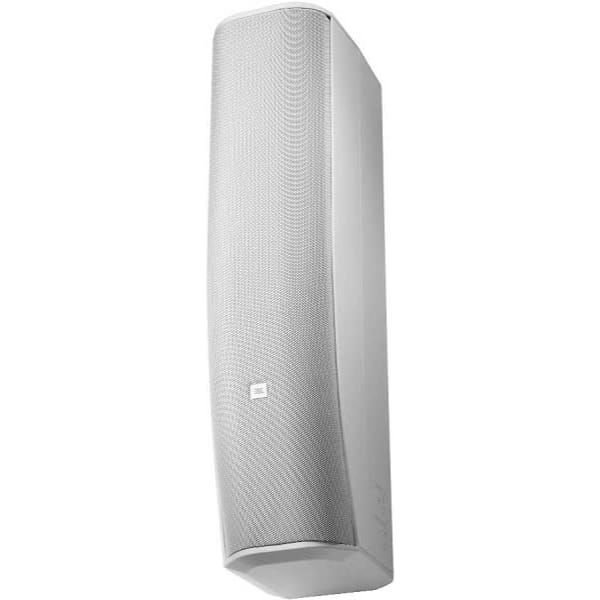

JBL CBT 70J-1 Line Array Column Loudspeaker – White

JBL Professional

AED 6739.95 inc VAT.

The CBT 70J-1 utilizes Constant Beamwidth Technology™ to achieve consistent vertical pattern control, featuring analog delay beam-forming and amplitude tapering to deliver superior coverage without typical column speaker drawbacks. (Shown with included grille removed)

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CBT 70J-1-WH Categories: , , Brand:

Description

CBT 70J-1 Column Speaker

The CBT 70J-1, featuring Constant Beamwidth Technology™, is a pioneering column speaker offering unmatched vertical coverage consistency. This cutting-edge technology leverages advanced analog delay beam-forming and amplitude tapering to avoid the narrow vertical beaming and out-of-coverage lobing typical of conventional column speakers. (shown with grille removed)

Features

  • Asymmetrical vertical coverage ensures even sound distribution, making sound levels consistent from the front to back of the room.
  • Contains sixteen 25mm soft dome tweeters and four 125mm high-power LF drivers arranged coaxially.
  • Patent-pending Constant Beamwidth Technology™ delivers consistent directivity up to the highest frequencies while minimizing lobing outside the coverage area.
  • Switchable vertical pattern: 45° for medium-throw or 25° for long-throw coverage.
  • Optional voicing switch: flat response for music mode or boosted mid-range for speech mode.
  • Dynamic SonicGuard™ provides overload protection for HF components.
  • Includes a swivel (pan) / tilt wall bracket for versatile mounting options.

Specifications

Specification Details
Drivers Four 130 mm (5 in) LF drivers
Sixteen 25 mm (1 in) HF drivers
Frequency Range (-10dB) 60 Hz – 20 kHz
Coverage Angle Vertical (selectable):
Narrow: 25° (2 kHz – 16 kHz) ±10°
Broad: 45° (750 Hz – 16 kHz) ±10°
Horizontal: 150° (500 Hz – 8 kHz) ±20°
Sensitivity Narrow: 98 dB (speech mode), 93 dB (music mode)
Broad: 96 dB (speech mode), 92 dB (music mode)
Impedance 8 ohms
Power Rating 500 W (2000 W peak), 2 hrs
350 W (1400 W peak), 100 hrs
Maximum SPL (1m) Narrow: 125 dB (speech mode), 120 dB (music mode)
Broad: 123 dB (speech mode), 119 dB (music mode)
Low Frequency Drivers 4 pcs, 130 mm (5 in), dual magnet neodymium
38 mm (1.5 in) voice coil, damped blended textile
surround, coated diaphragm for moisture, UV, and salt resistance
Shielded
High Frequency Drivers 16 pcs, 25 mm (1 in), dual magnet neodymium
Encased magnet and coated diaphragm for moisture, UV, and salt resistance
Shielded
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated with optional MTC-PC2 panel cover
Resistant to UV, moisture, and 200-hr ASTM G85 acid-air/salt-spray
Color Available in Black or white (-WH)
Insert Points 10 M6 points on back panel
Mounting Swivel (pan) / tilt wall bracket included
Compatible with industry-standard brackets
Dimensions (H x W x D) 694 x 170 x 237 mm (27.4 x 6.7 x 9.3 in)
Net Weight 9.5 kg (21 lb)
Included Accessories Swivel (pan) / tilt wall bracket
Optional Accessories MTC-PC2 terminal panel cover
MTC-CBT-SMB1 stand-mount bracket
MTC-CBT-FM2 flush-mount bracket
