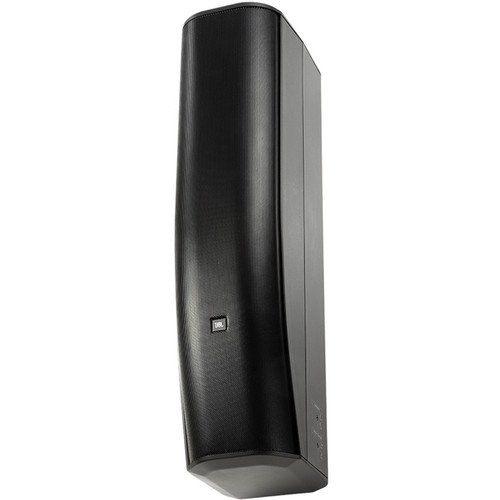

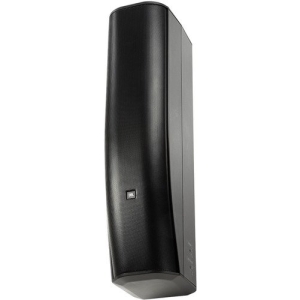

JBL CBT 70J-1 Line Array Column Loudspeaker – Black

JBL CBT 70J-1 Constant Beamwidth Technology™ Line Array Column Speaker

The CBT 70J-1 line array column speaker, enhanced with Constant Beamwidth Technology™ by JBL, offers pioneering sound control and consistency. Utilizing complex analog delay beam-forming and amplitude tapering, it provides unmatched vertical coverage without unwanted narrow vertical beaming or coverage lobing, unlike traditional column speakers. This model is ideal for venues requiring even sound distribution from front to back.

Key Features

• Asymmetrical vertical coverage delivers more sound toward the far end of the room, ensuring consistent sound levels.

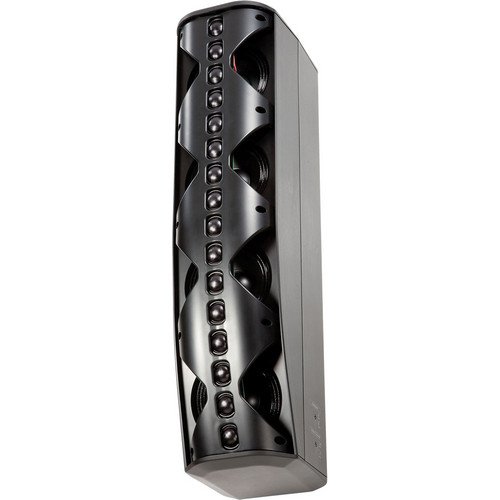

• Equipped with sixteen 25 mm (1 in) soft dome tweeters and four 130 mm (5 in) high-power LF drivers organized coaxially.
• Patent-pending Constant Beamwidth Technology™ ensures constant directivity up to the highest frequencies with minimal out-of-coverage lobing.

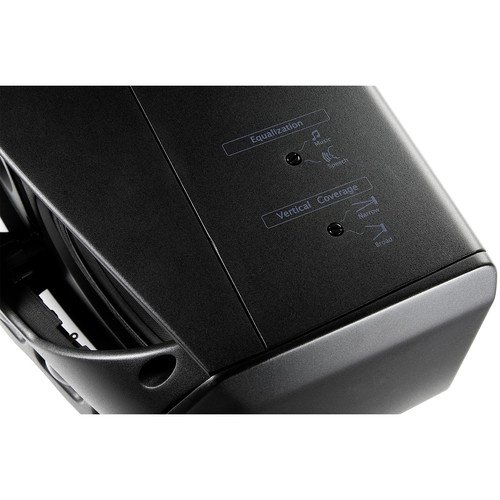

• Selectable vertical pattern coverage of 45° for medium-throw and 25° for long-throw applications for versatile performance.
• Configurable voicing for flat response in music mode, or mid-range presence in speech mode.
• Incorporates Dynamic SonicGuard™ overload protection for high-frequency devices.
• Swivel (pan) / tilt wall bracket included for flexible installation options.
