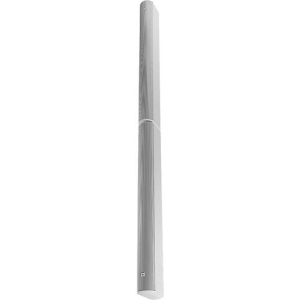

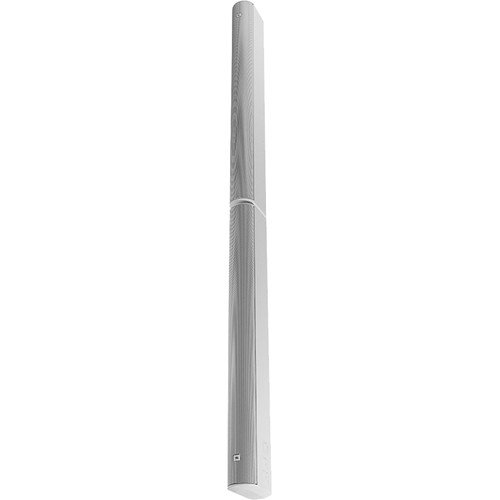

Name: JBL CBT 200LA-1 Line Array Column Speaker - White
Brand: JBL Professional
SKU: CBT 200LA-1-WH
Price: 11889.15 AED
Availability: InStock

JBL CBT 200LA-1 Line Array Column Speaker – White

AED 11889.15 inc VAT.

The CBT 200LA-1 utilizes advanced Constant Beamwidth Technology™ with complex analog delay beam-forming and amplitude tapering, providing superior and consistent coverage without the issues of vertical beaming, uneven coverage, and out-of-coverage lobing commonly found in typical column speakers.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

CBT 200LA-1 with Constant Beamwidth Technology™

The CBT 200LA-1, equipped with Constant Beamwidth Technology™, offers unparalleled consistency in pattern control and coverage. Utilizing advanced analog delay beam-forming and amplitude tapering, it ensures superior and consistent coverage, eliminating the usual issues of vertical beaming and uneven coverage associated with both powered and non-powered column speakers.

Features

Patented Constant Beamwidth Technology™ for true wide-band constant directivity coverage.
Height of 200 cm (6.6 ft) allows extended pattern control to include lower frequencies.
Vertical pattern coverage is switchable between 30° and 15° for varied coverage needs.
Asymmetrical Progressive-Gradient setting directs more sound towards the distant areas for consistent front-to-back levels.
Compact width of 98.5 mm (3.8 in) fits seamlessly into various installations.
Features Dynamic Sonic-Guard™ for low visibility overload protection.
Comes with a swivel (pan)/tilt wall bracket for flexible mounting.
Includes built-in 70V/100V transformers with direct capability.

Specifications

Specification	Details
Drivers	Thirty-two 50 mm (2 in) Full-Range Drivers
Frequency Range (-10dB)	80 Hz – 20 kHz
Frequency Response (±3 dB)	130 Hz – 18 kHz (narrow coverage, music mode setting)
Coverage – Vertical	Narrow Mode:15° (500 Hz – 16 kHz, +15°/-2° [<60° down to 220 Hz, <90° down to 140 Hz]) Broad Mode: 30° (400 Hz – 12 kHz, +15°/-8°, [<60° down to 220 Hz, <90° down to 140 Hz]) Asymmetrical Progressive-Gradient Mode: (Top speaker module set at “Narrow” and bottom speaker module at “Broad”, for “J-type” coverage, sending higher sound levels toward the far area of the listening space): 22° (+7° from aiming axis up; -15° from aiming axis down, 300 Hz – 12 kHz, +15°/-8°, [<60° down to 220 Hz, <90° down to 140 Hz])
Coverage – Horizontal	150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity – Narrow	(speech mode): 95 dB (2 kHz – 5 kHz)(music mode): 92 dB (150 Hz – 18 kHz)
Sensitivity – Broad	(speech mode): 93 dB (2 kHz – 5 kHz)(music mode): 90 dB (150 Hz – 18 kHz)
Sensitivity – Asymmetrical Progressive-Gradient Mode (on-axis)	(speech mode): 94 dB (2 kHz – 5 kHz)(music mode): 91 dB (150 Hz – 18 kHz)
Impedance	8Ω per half (top and bottom) for 4 ohms total (in thru mode). Min-Z for system = 2.9Ω
Hookup	Ensure identical polarity of hookup – for proper functioning, the two loudspeaker modules (top and bottom) must be hooked up in same polarity. Parallel hookup at the two sets of back panel input terminals is recommended.
Power Rating	650W (2600W peak), 2 hrs 400W (1600W peak), 100 hrs
Max SPL – Narrow	(speech mode): 123 dB cont ave (129 dB peak)(music mode): 120 dB cont ave (126 dB peak)
Max SPL – Broad	(speech mode): 121 dB cont ave (127 dB peak)(music mode): 118 dB cont ave (124 dB peak)
Max SPL – Asymmetrical Progressive-Gradient Mode (on-axis)	(speech mode): 122 dB cont ave (128 dB peak) (music mode): 119 dB cont ave (125 dB peak)
70V/100V Transformer Type	Set individually per speaker module (top and bottom): 120W, 60W, 30W (15W at 70V only), and direct 8Ω, via switch. Total (with top & bottom set to same): 240W, 120W, 60W (30W at 70V only) and direct 4Ω. Max. insertion loss less than 1 dB at any tap.
Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum grille
Connectors	Two (one for top half and one for bottom half), screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), or bare wire (up to 12 AWC/2.5 mm²)
Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color	Black or White (-WH)
Configuration	Two pieces (top and bottom half), each 100 cm tall, connected together via Coupler Plate. Top/bottom orientation of each piece must be observed.
Insert Points	28 M6 insert points on back panel (36 total with 8 center points being utilized by the Coupler Plate).
Mounting	Included swivel (pan) / tilt wall bracket (must be mounted to threaded points on Coupler Plate) provides continuously variable ±80° left-right swivel aiming (at up to ±5° up/down tilt), continuously adjustable ±10° up/down tilt, as well as 5° fixed increment tilt angles to ±10°. Twenty-eight available threaded mounting points (M6 diameter x M1 thread pitch x 17 mm deep) located on back panel. Threaded mounting points can be utilized for suspension. Compatible with OmniMount 30.0 brackets
Dimensions (H x W x D)	2000 x 98.5 x 153 mm (78.8 x 3.8 x 6.0 in)
Net Weight	14.6 kg (33 lb)
Included Accessories	Swivel (pan) / tilt wall bracket, Coupler plate
Optional Accessories	MTC-PC2 terminal panel cover, MTC-CBT-FM1 flush-mount low-profile wall-mount bracket (2 pieces required), MTC-CBT-SMB1 stand-mount bracket for use with 35 mm speaker stands (heavy duty stand required)
