Column Speakers

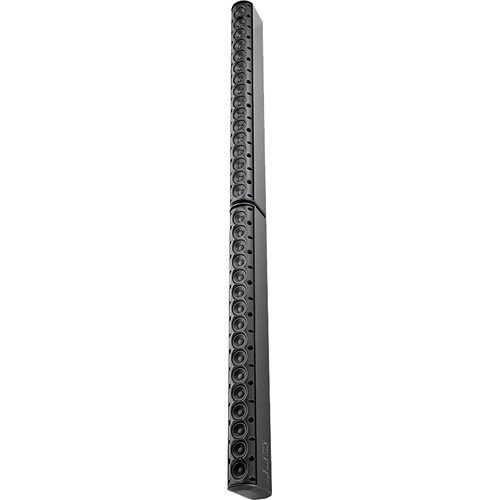

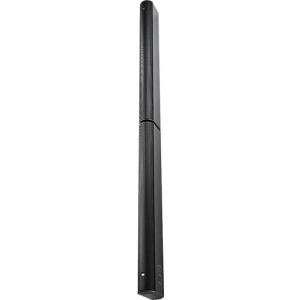

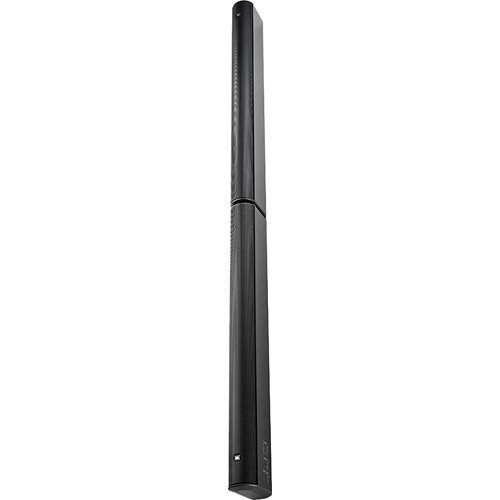

JBL CBT 200LA-1 Line Array Column Speaker Black

JBL Professional

AED 11889.15 inc VAT.

The CBT 200LA-1 utilizes advanced Constant Beamwidth Technology™ with analog delay beam-forming and amplitude tapering, providing superior and consistent vertical pattern control and coverage, eliminating the common issues of uneven coverage and lobing found in traditional column speakers.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CBT 200LA-1 Categories: , , Brand:

Description

CBT 200LA-1 with Constant Beamwidth Technology™

The CBT 200LA-1 offers a breakthrough in consistent pattern control and superior coverage through advanced analog delay beam-forming and amplitude tapering. Perfect for various applications, this speaker ensures reliable and high-quality sound distribution without the common issues of vertical beaming and uneven lobing seen in traditional column speakers.

Key Features

  • Patented Constant Beamwidth Technology™ maintains consistent directivity up to the highest frequencies.
  • Height of 200 cm extends pattern control to lower frequencies.
  • Vertical pattern coverage can be switched between 30° and 15° for different coverage needs.
  • Asymmetrical Progressive-Gradient vertical coverage creates consistent sound levels from front to back.
  • Slim and narrow design fits into diverse applications.
  • Includes Dynamic Sonic-Guard™ for low-audibility overload protection.
  • Comes with a swivel (pan) and tilt wall bracket.
  • Features built-in 70V/100V transformers and direct capability.

Specifications

Specification Details
Drivers Thirty-two 50 mm (2 in) full-range drivers
Frequency Range 80 Hz – 20 kHz
Frequency Response 130 Hz – 18 kHz (narrow coverage, music mode)
Coverage – Vertical Narrow: 15° or Broad: 30° with adjustable asymmetrical progression
Coverage – Horizontal 150° (average, 1 kHz – 4 kHz, ±20°)
Sensitivity Narrow: 95 dB (speech), 92 dB (music); Broad: 93 dB (speech), 90 dB (music)
Impedance 8Ω per half, 4 ohms total
Power Rating 650W (2600W peak), 2 hrs; 400W (1600W peak), 100 hrs
Max SPL Narrow: 123 dB (speech), 120 dB (music); Broad: 121 dB (speech), 118 dB (music)
Transformer Type 70V/100V with multiple power tap settings
Enclosure Fiberglass reinforced ABS, painted aluminum grille
Connectors Screw-down terminal strip with zinc-plated copper base
Outdoor Capability IP-55 rated, UV and moisture resistant
Dimensions (H x W x D) 2000 x 98.5 x 153 mm (78.8 x 3.8 x 6.0 in)
Net Weight 14.6 kg (33 lb)
Included Accessories Swivel (pan) / tilt wall bracket, Coupler plate
Optional Accessories MTC-PC2 panel cover, MTC-CBT-FM1 flush-mount bracket, MTC-CBT-SMB1 stand-mount bracket
