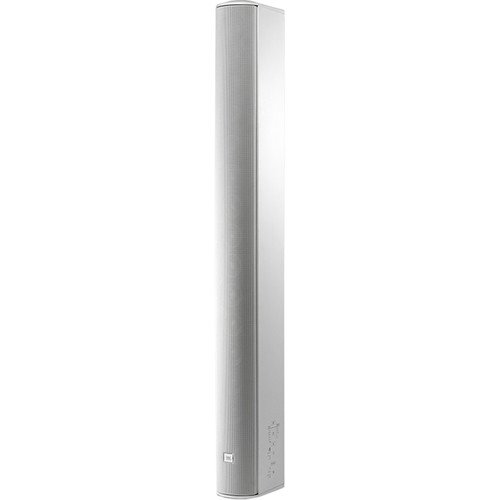

JBL CBT 100LA-LS Line-Array Column Loudspeaker with EN54:24 Certification (White)

JBL Professional

AED 5139.75 inc VAT.

The CBT 100LA-LS loudspeaker with Constant Beamwidth Technology™ offers superior vertical coverage through advanced analog delay beam-forming and amplitude tapering, avoiding narrow beaming and out-of-coverage lobing common in traditional column speakers. It is EN 54-24 Compliant, suitable for life safety applications.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CBT 100LA-LS-WH Categories: , , Brand:

Description

JBL CBT 100LA-LS Column Speaker

The CBT 100LA-LS, leveraging the innovative Constant Beamwidth Technology™, redefines pattern control with exceptional vertical coverage. This speaker is designed to deliver unparalleled audio clarity for various life safety applications, meeting EN 54-24 compliance standards. It ensures superior sound distribution without the typical narrow beams and out-of-coverage lobes of conventional speakers.

Key Features

  • Advanced Constant Beamwidth Technology™ for consistent directivity and minimal out-of-coverage lobing.
  • EN 54-24 Compliant for life safety applications when used with the included MTC-PC2 panel cover.
  • Adjustable vertical pattern coverage: 40° for medium-throw and 15° for long-throw applications.
  • Switchable voicing for flat response in music mode or enhanced presence in speech mode.
  • Dynamic SonicGuard™ overload protection.
  • Comes with a swivel (pan)/tilt wall bracket.
  • 70V/100V transformer and 8 ohm direct capability included.

Specifications

Specification Details
Drivers Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB) 120 Hz – 20 kHz
Coverage Angle Vertical: 15° to 40° adjustable, Horizontal: 150°
Sensitivity 96 dB to 93 dB in narrow mode, 93 dB to 90 dB in broad mode
EN54 Sensitivity (@ 4m) 76 dB
Impedance 8 ohms, various taps for 70V and 100V systems
Power Rating 325 W peak, 200 W continuous
Maximum SPL (1m) Up to 127 dB peak
EN54 Max SPL (@ 4m) 92 dB
Transformer Taps 120W, 60W, 30W, 15W (70V only), 8 through
Reference Axis On-axis vertically and horizontally to the center point of the speaker baffle
Enclosure Fiberglass reinforced ABS, painted aluminum grille
Outdoor Capability IP-55 rated with UV, moisture, and salt-spray resistance
Color Black or White (-WH)
Insert Points 18 M6 points on back panel
Mounting Swivel/tilt wall bracket included, compatible with other brackets
Dimensions (H x W x D) 1000 x 98.5 x 153 mm
Net Weight 7.2 kg (15.8 lb)
Safety Agency EN54-24:2008 certified, UL registered
Included Accessories Swivel/tilt wall bracket, MTC-PC2 panel cover
Optional Accessories MTC-CBT-FM1 flush-mount, MTC-CBT-SMB1 stand-mount
