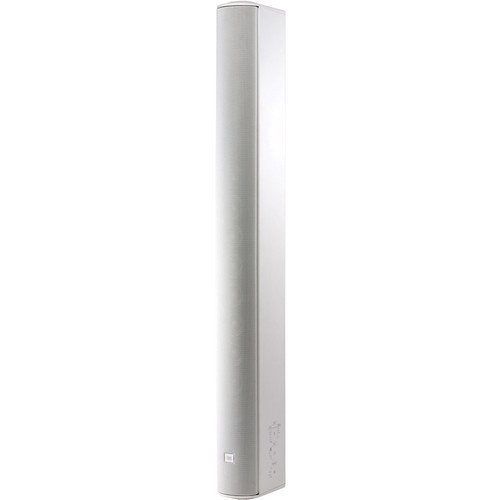

Name: JBL CBT 100LA-1 White Line Array Column Loudspeaker
Brand: JBL Professional
SKU: CBT 100LA-1-WH
Price: 5439.00 AED
Availability: InStock

JBL CBT 100LA-1 White Line Array Column Loudspeaker

AED 5439 inc VAT.

The CBT 100LA-1 uses Constant Beamwidth Technology™ and complex analog delay beam-forming with amplitude tapering to deliver exceptional and consistent vertical coverage, avoiding the narrow beaming and lobing issues of traditional column speakers.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

JBL CBT 100LA-1 Professional Column Loudspeaker

The CBT 100LA-1, featuring Constant Beamwidth Technology™, is revolutionizing vertical pattern control with advanced analog delay beam-forming and amplitude tapering. This state-of-the-art design ensures consistent vertical coverage, eliminating the common issues of narrow beaming and out-of-coverage lobing seen in traditional column speakers.

Key Features

Patent-pending Constant Beamwidth Technology™ keeps directivity constant even at the highest frequencies and diminishes out-of-coverage lobing.
Switchable vertical pattern coverage with options for 40° for medium-throw or 15° for long-throw applications.
Switchable voicing settings for either flat response in music mode or a mid-range presence peak in speech mode.
Dynamic SonicGuard™ overload protection ensures reliable performance under varying conditions.
Supplied with a swivel (pan)/tilt wall bracket for flexible mounting options.
Integrated 70V/100V transformer and 8-ohm direct capability.

Specifications

Specification	Details
Drivers	Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB)	80 Hz – 20 kHz
Coverage Angle	Vertical Narrow Mode: 15° (2 kHz – 16 kHz) (±10°) Broad Mode: 40° (1 kHz – 16 kHz) (±10°) Horizontal: 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity	Narrow: 96 dB (2 kHz – 14 kHz) Broad: 93 dB (2 kHz – 14 kHz)
Impedance	8 ohms (in Thru mode)
Power Rating	325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs
Maximum SPL (1m)	Narrow: 121 dB cont ave (127 peak) Broad: 118 dB cont ave (124 peak)
Transformer Taps	120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability	IP-55 rated, per IEC529, with optional MTC-PC2 panel cover. UV, moisture, and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color	Black or White (-WH)
Insert Points	18 M6 insert points on back panel.
Mounting	Included swivel (pan)/tilt wall bracket. 18 threaded mounting points for various bracket compatibility.
Dimensions (H x W x D)	1000 x 98.5 x 153 mm (39.4 in x 3.8 in x 6.0 in)
Net Weight	7.2 kg (15.8 lb)
Included Accessories	Swivel (pan)/tilt wall bracket
Optional Accessories	MTC-PC2 terminal panel cover MTC-CBT-FM1 flush-mount wall bracket MTC-CBT-SMB1 stand-mount bracket
