Column Speakers

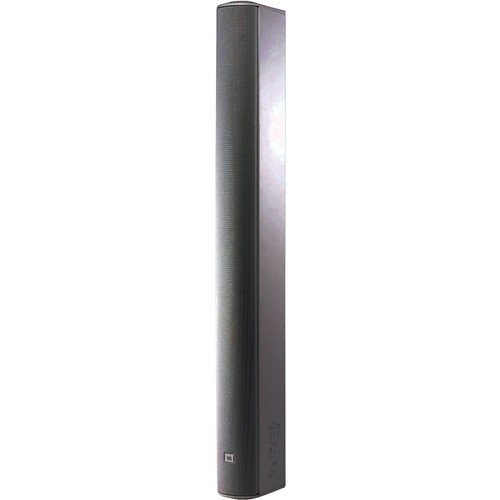

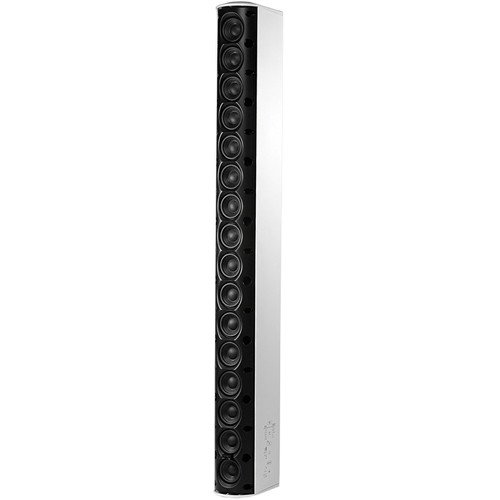

JBL CBT 100LA-1 Line Array Column Loudspeaker (Black)

JBL Professional

AED 5439 inc VAT.

The CBT 100LA-1 speaker features Constant Beamwidth Technology™, delivering advanced pattern control with consistent vertical coverage through innovative analog delay beam-forming and amplitude tapering, eliminating the common issues of narrow vertical beaming and lobing found in traditional column speakers.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CBT 100LA-1 Categories: , , Brand:

Description

JBL CBT 100LA-1 Line Array Column Speaker

Experience advanced sound reproduction with the JBL CBT 100LA-1, featuring breakthrough Constant Beamwidth Technology™. This innovative audio solution provides consistent vertical coverage, eliminating narrow vertical beaming and out-of-coverage lobing typical of traditional column speakers. Ideal for various installations, this speaker is designed to deliver exceptional audio clarity and precision.

Specification Details
Drivers Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB) 80 Hz – 20 kHz
Coverage Angle Vertical Narrow Mode: 15° (2 kHz – 16 kHz) (±10°), Broad Mode: 40° (1 kHz – 16 kHz) (±10°), Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity Narrow: 96 dB (2 kHz – 14 kHz), Broad: 93 dB (2 kHz – 14 kHz)
Impedance 8 ohms (in Thru mode)
Power Rating 325 W (1300W peak), 200 W (800W peak)
Maximum SPL (1m) Narrow: 121 dB cont. ave (127 peak), Broad: 118 dB cont. ave (124 peak)
Transformer Taps 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated, UV, moisture, and salt-spray resistant
Color Black or White (-WH)
Insert Points 18 M6 insert points on the back panel
Mounting Swivel (pan)/tilt wall bracket included, compatible with third-party brackets
Dimensions (H x W x D) 1000 x 98.5 x 153 mm (39.4 in x 3.8 in x 6.0 in)
Net Weight 7.2 kg (15.8 lb)
Included Accessories Swivel (pan)/tilt wall bracket
Optional Accessories MTC-PC2 terminal panel cover, MTC-CBT-FM1 wall-mount bracket, MTC-CBT-SMB1 stand-mount bracket
