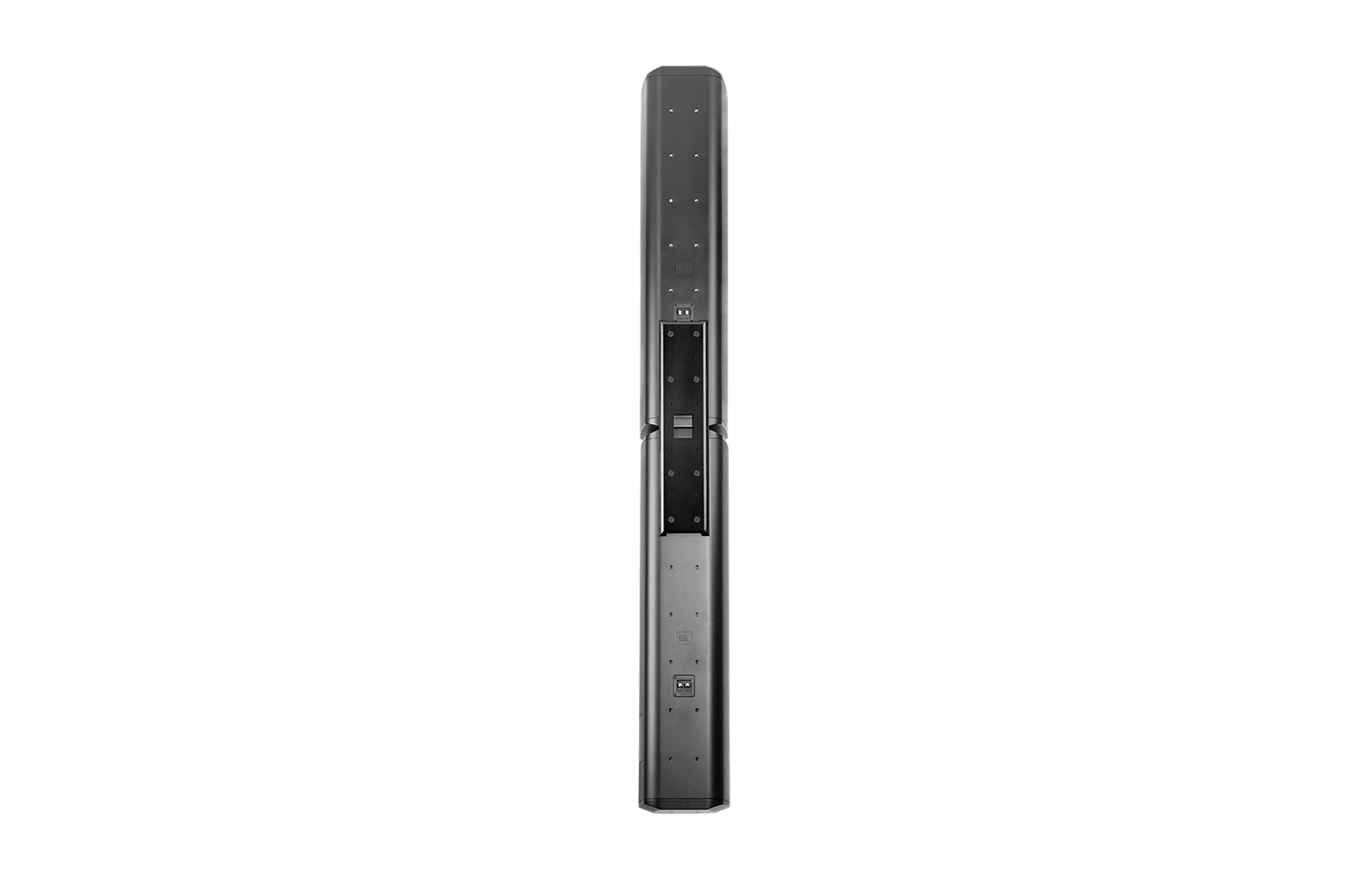

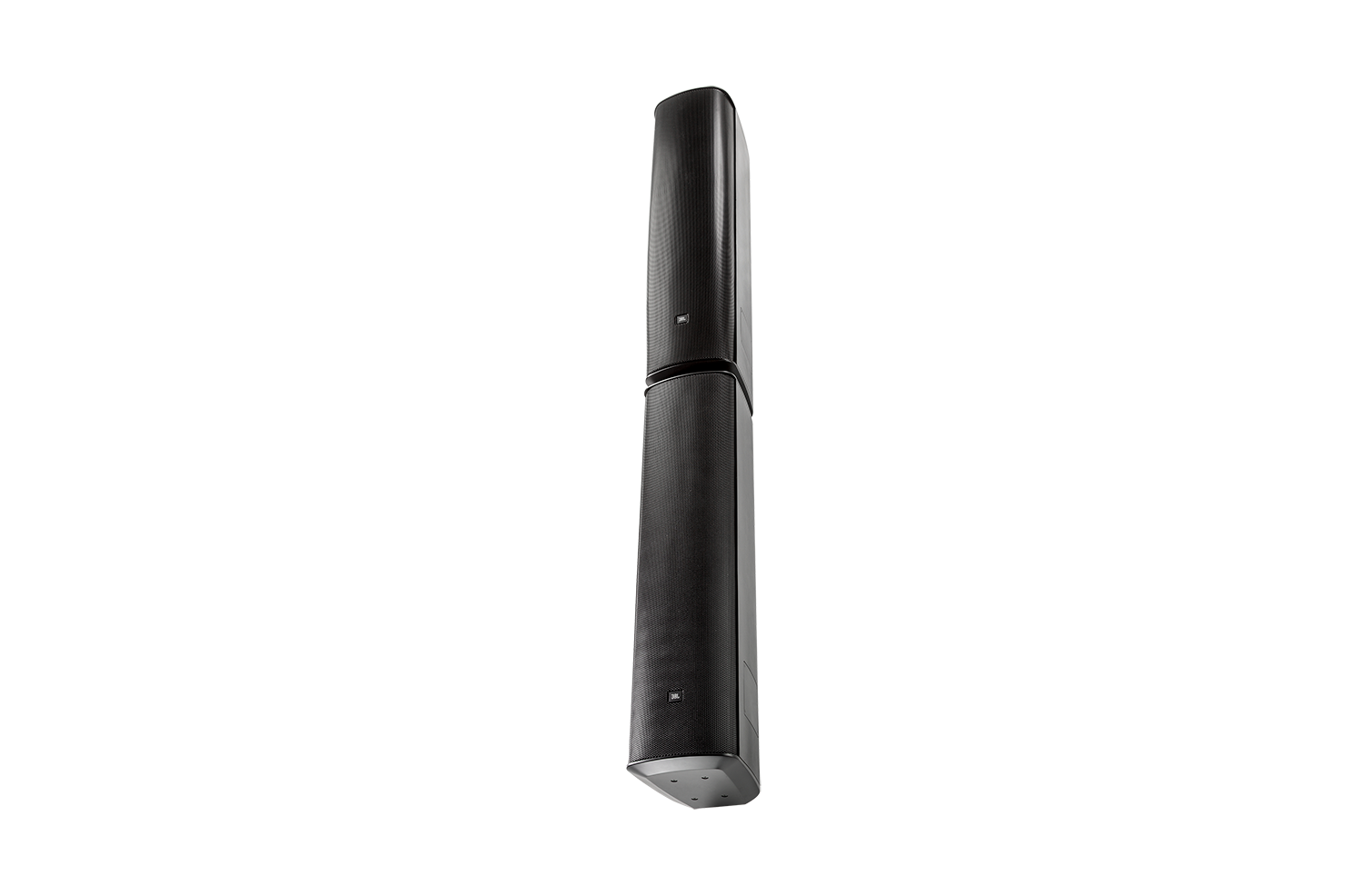

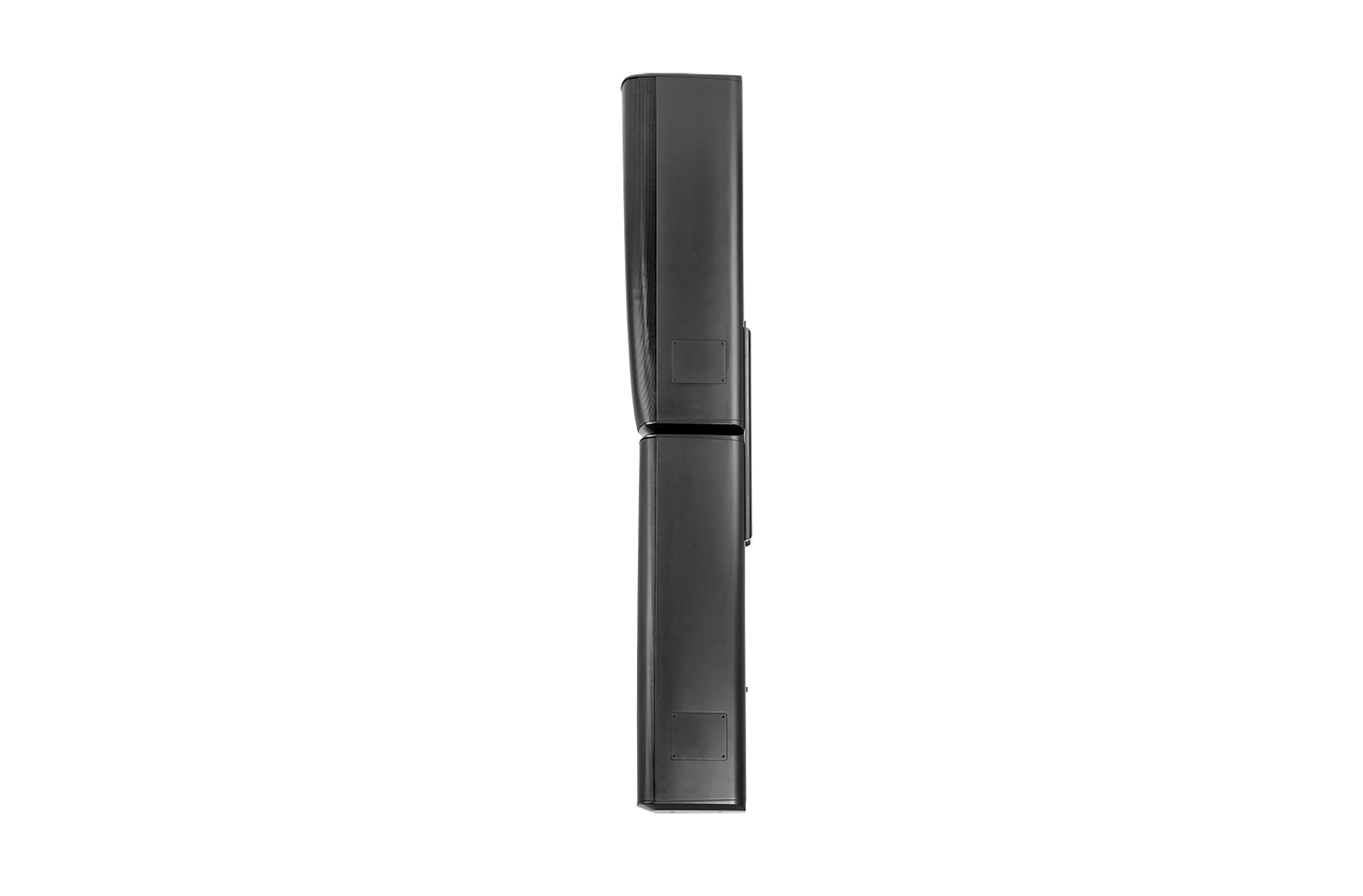

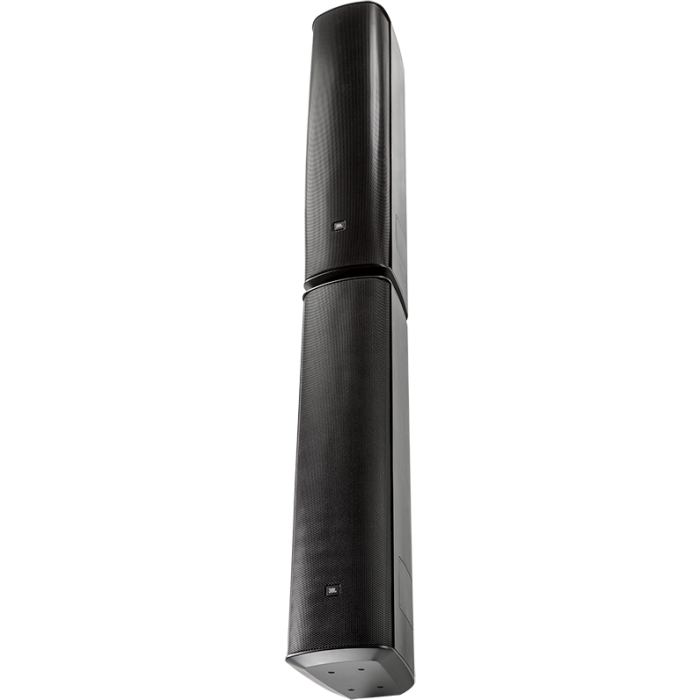

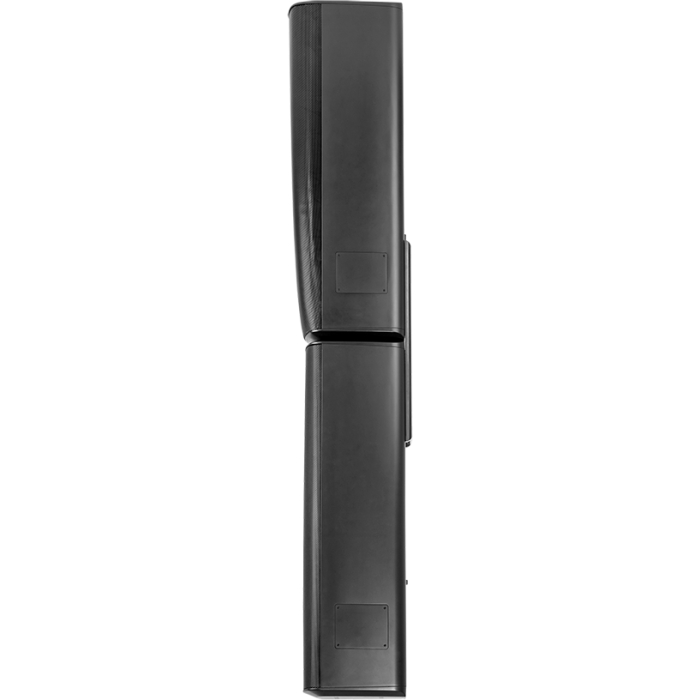

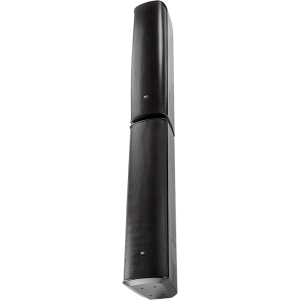

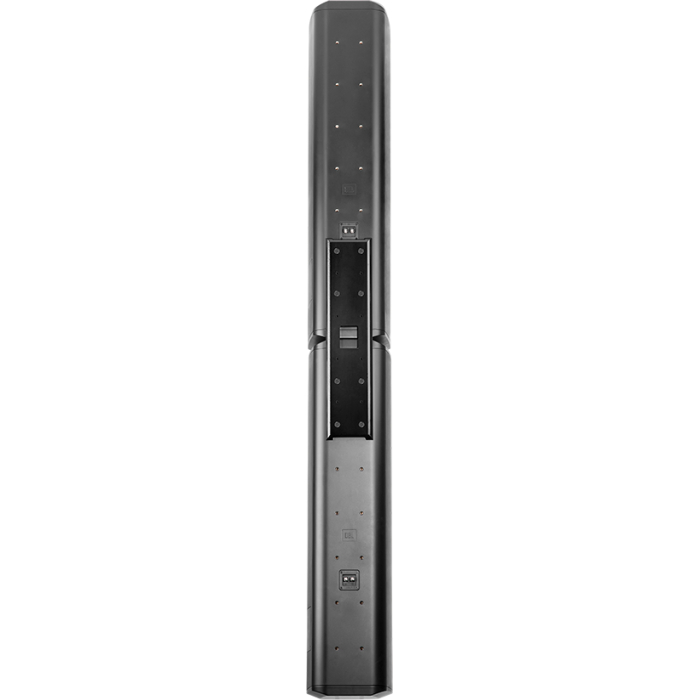

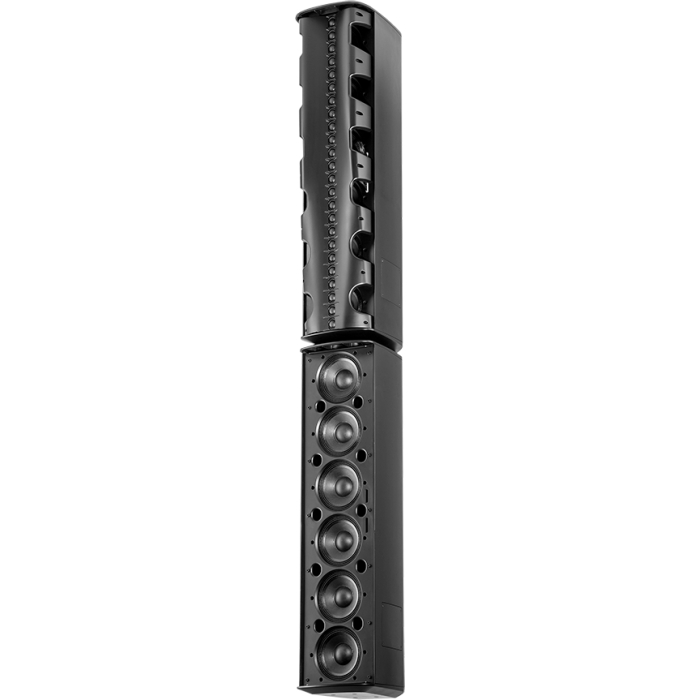

JBL CBT 1000E Extension Loudspeaker for CBT 1000 Line Array Column Speaker – Black

JBL Professional

AED 7639.80 inc VAT.

The CBT1000E Extension enhances the CBT1000 line array column speaker by offering extended bass response, greater pattern control, and elevated sound output. Utilizing Constant Beamwidth Technology™, this system ensures superior vertical coverage through advanced analog beamforming and amplitude tapering, avoiding the typical narrow vertical beaming and lobing of passive column speakers.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CBT 1000E Categories: , , Brand:

Description

Product Description

When connected to a CBT1000 line array column speaker, the CBT1000E Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system delivers consistent vertical coverage using advance beamforming and amplitude tapering technology, eliminating the narrow vertical beaming and out-of-coverage lobing observed in traditional passive column speakers.

Key Features

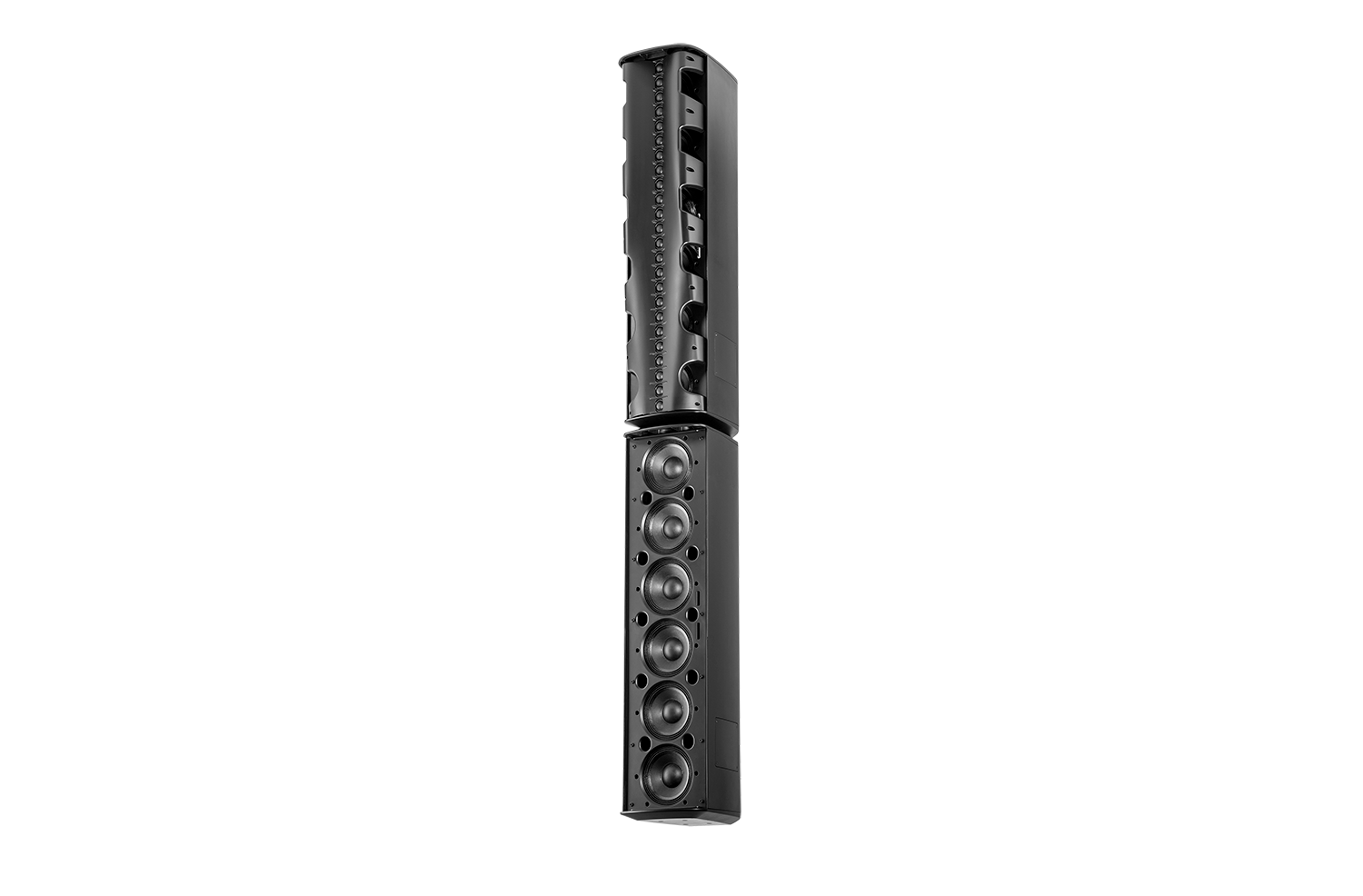

  • Six (6) 165 mm (6.5 in) high-excursion LF drivers (CBT1000E)
  • 1500 Watt power handling (CBT1000E)
  • Built-in purpose-designed crossover network for seamless integration with CBT1000 (CBT1000E)
  • Coupler plate included (CBT1000E)
  • Extended pattern control for superior sound coverage
  • Components: 24 x 25 mm (1 in) extra-high-power soft dome tweeters, 12 x 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E)
  • 3000 watt power handling (CBT1000+1000E)
  • Patent-pending Constant Beamwidth Technology™ delivering steady directivity and reduced out-of-coverage lobing
  • Adjustable vertical pattern coverage with 16 different combinations without external DSP processing (CBT1000)
  • Tapered Horizontal Waveguide for variable horizontal dispersion, providing excellent coverage for both short-throw and long-throw areas
  • Single-speaker system offering extensive room coverage with minimal over-splash and strong bass response
  • Switchable voicing for flat response in music mode or mid-range presence boost in speech mode
  • Included swivel (pan)/tilt wall bracket and coupler plate for versatile mounting options

Specifications

Specification Details
Drivers 24 x 25 mm (1 in) extra-high-power soft dome tweeters, 12 x 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E)
Frequency Range (-10dB) 38 Hz – 20 kHz
Coverage Vertical (selectable via switch)
Sensitivity 102 dB (highest sensitivity setting), 95 dB (lowest sensitivity setting)
Impedance 4 ohms
Power Rating 3000 W (12000 W peak), 2 hrs; 2000 W (8000 W peak), 100 hrs
Maximum SPL (1m) Up to 137 dB peak
Vertical Coverage Settings Customizable via pattern switches, from -6 dB to -12 dB coverage angles
Horizontal Coverage 100° to 160° depending on throw distance
Enclosure Fiberglass reinforced ABS cabinet, powder-coated aluminum grille
Outdoor Capability IP-55 rated, meets multiple environmental specifications
Color Black (RAL9004) or White (RAL9016)
Mounting Swivel (pan)/tilt wall bracket, 20 M8 inserts for additional mounting options
Dimensions (H x W x D) 2040 mm x 250 mm x 345 mm
Net Weight 47.2 kg
Included Accessories Swivel (pan)/tilt wall bracket, Coupler Plate
Optional Accessories Terminal panel cover, Accessory kit, Suspension bracket kit
