Name: JBL 5" Ceiling Speaker with EN54-24 Certification - Single Unit
Brand: JBL Professional
SKU: CSS-15C-VA
Price: 254.10 AED
Availability: InStock

JBL 5″ Ceiling Speaker with EN54-24 Certification – Single Unit

AED 254.10 inc VAT.

The CSS-15C-VA is an EN54-24 certified ceiling speaker featuring a 127 mm dual-cone driver, mounted in an easy-install blind-mount metal fire dome, designed to deliver clear and intelligible sound for settings needing EN54 or BS5839 compliance.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

CSS-15C-VA Ceiling Speaker

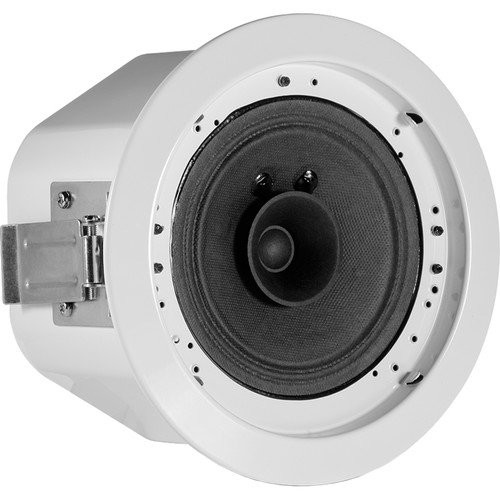

The CSS-15C-VA is a high-performance, EN54-24 certified ceiling speaker designed to deliver clear and intelligible sound. It features a 127 mm (5 inch) full-range dual-cone driver, mounted in a convenient blind-mount metal fire dome. This loudspeaker meets the stringent requirements of EN54 and BS5839 compliance, making it ideal for life safety applications.

Key Features

127 mm (5 in) full-range dual-cone driver
EN 54-24 certified and compliant with BS5839-8 standard
Multiple transformer taps: 6W, 3W, 1.5W

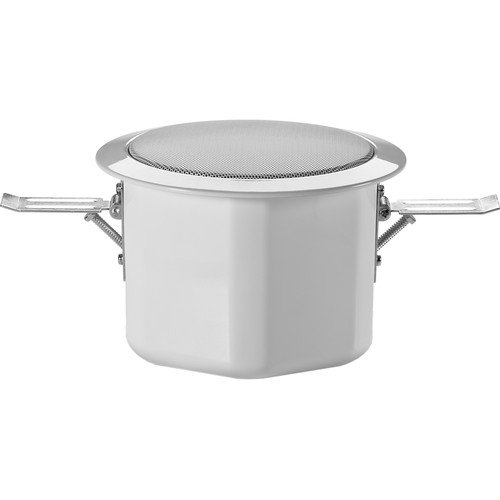

Easy installation with clip-in torsion-mount

Specifications

Specification	Details
Frequency Range (-10dB)	180 Hz – 20 kHz
Power Capacity	6 Watts
Rated Pink Noise Power	6 Watts
Rated Pink Noise Voltage	100V
Nominal Sensitivity	92 dB
EN54 Sensitivity (@4 m)	80 dB
Coverage Angle	120° conical
Maximum SPL (1m)	100 dB
EN54 Max SPL (@4m)	88 dB
Nominal Impedance	1667 Ω (6W tap)
Transformer Taps	6W, 3W, 1.5W at 100V
Fuse	Thermal fuse, open temperature 150°C
Drivers	127 mm (5 in) dual-cone, paper cone
Connections	Ceramic block with brass inserts
Safety Agency	EN54-24, CE, ROHS compliant
Ambient Temp Range	-10°C to +55°C
Warranty	Contact for details
Materials	Metal fire dome, metal grille
Dimensions	162 mm diameter, 116 mm depth
Color	White
Net Weight	1.5 Kg
