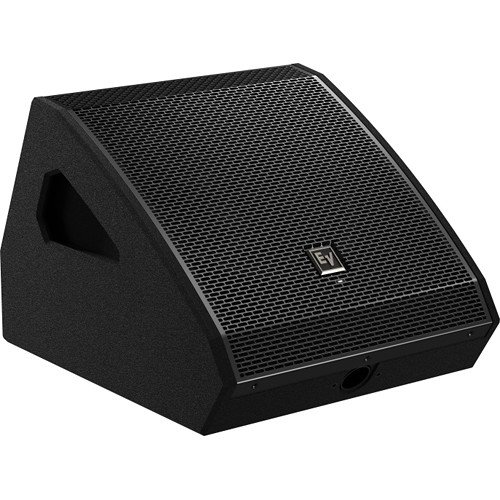

Electro-Voice PXM-12MP 12″ 700W Powered Coaxial Monitor Speaker

Electro-Voice

AED 4,975 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: PXM-12MP Categories: , , Brand:

The Electro Voice PXM-12MP 12″ Powered Coaxial Monitor is a versatile audio system for musicians and small venues, usable as a 55° angled floor wedge or mounted on a speaker stand for PA systems, with features including a dedicated subwoofer and adjustable LPFs for a compact 3-way configuration.

Description

Electro Voice PXM-12MP 12″ Powered Coaxial Monitor

The black Electro Voice PXM-12MP is a versatile and compact monitoring system designed for musicians, bands, small venues, and rental houses. It functions effectively as a floor wedge or a main PA and can be used to create an optimized 3-way system. The 55° angled enclosure ensures clear sound without obstructing sightlines, and it can also be pole-mounted for added flexibility.

The PXM-12MP includes a single knob DSP for easy selection of EQ presets, an adjustable high-pass filter, a feedback notch filter, and recallable user settings. The built-in 700W Class-D amplifier ensures powerful and clean audio, while the coaxial driver configuration offers precise sound delivery. The enclosure, crafted from 15mm plywood with a black powder-coated steel grille, is built to withstand the demands of traveling performers.

Key Features

  • Adaptable monitoring system usable as a floor wedge or main PA
  • Optimized 55° floor monitor angle
  • QuickSmartDSP processing with four presets and user-programmable settings
  • 700W Class-D amplifier by Dynacord, delivering up to 129 dB peak SPL

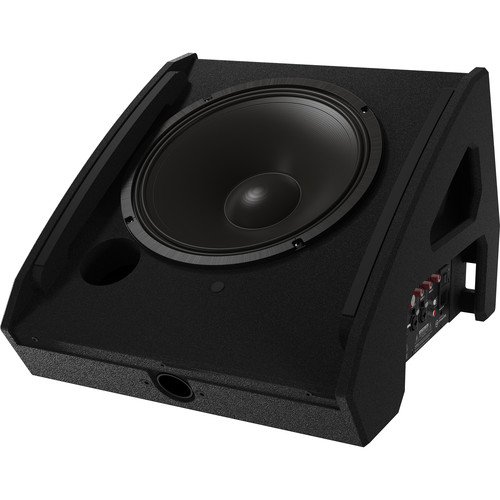

  • Coaxial design with 1.75″ HF driver inside a 12″ woofer for precise signal delivery
  • Durable plywood enclosure with powder-coated steel grille

Specifications

Specification Details
Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker/Floor Monitor
Total Power Capacity 700 W
Amplifier Power Rating LF: 1 x 500 W
HF: 1 x 200 W
Amplifier Class Class-D
HF Driver 1 x 1.75″ / 44.45 mm
LF Driver 1 x 12″ / 304.8 mm
Frequency Range 53 Hz to 20 kHz -10 dB
Frequency Response 64 Hz to 20 kHz -3 dB
Maximum SPL 129 dB (Peak)
Coverage Angle 90° H x 90° V
Audio I/O 2 x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Mic/Line Input
1 x Stereo RCA Female Unbalanced Line Input
1 x XLR 3-Pin Male Balanced Link Thru
Crossover 1.6 kHz
EQ 4 x Presets (Factory)
Filters 1 x High-Pass
Dynamic Processing Limiter
AC Input Power Universal: 100 to 240 VAC, 50/60 Hz
AC Power Connector 1 x IEC Input
Current Consumption 0.8 to 0.5 A
Mounting 1 x Pole Socket
Monitor Angle 55°
Handles 1 x Each Side
Construction Material Plywood, Steel
Dimensions 13.1 x 16.1 x 19″ / 332.7 x 408.9 x 482.6 mm
Weight 29.8 lb / 13.5 kg
Package Weight 37.125 lb
Box Dimensions (LxWxH) 22.7 x 17.5 x 16.9″
