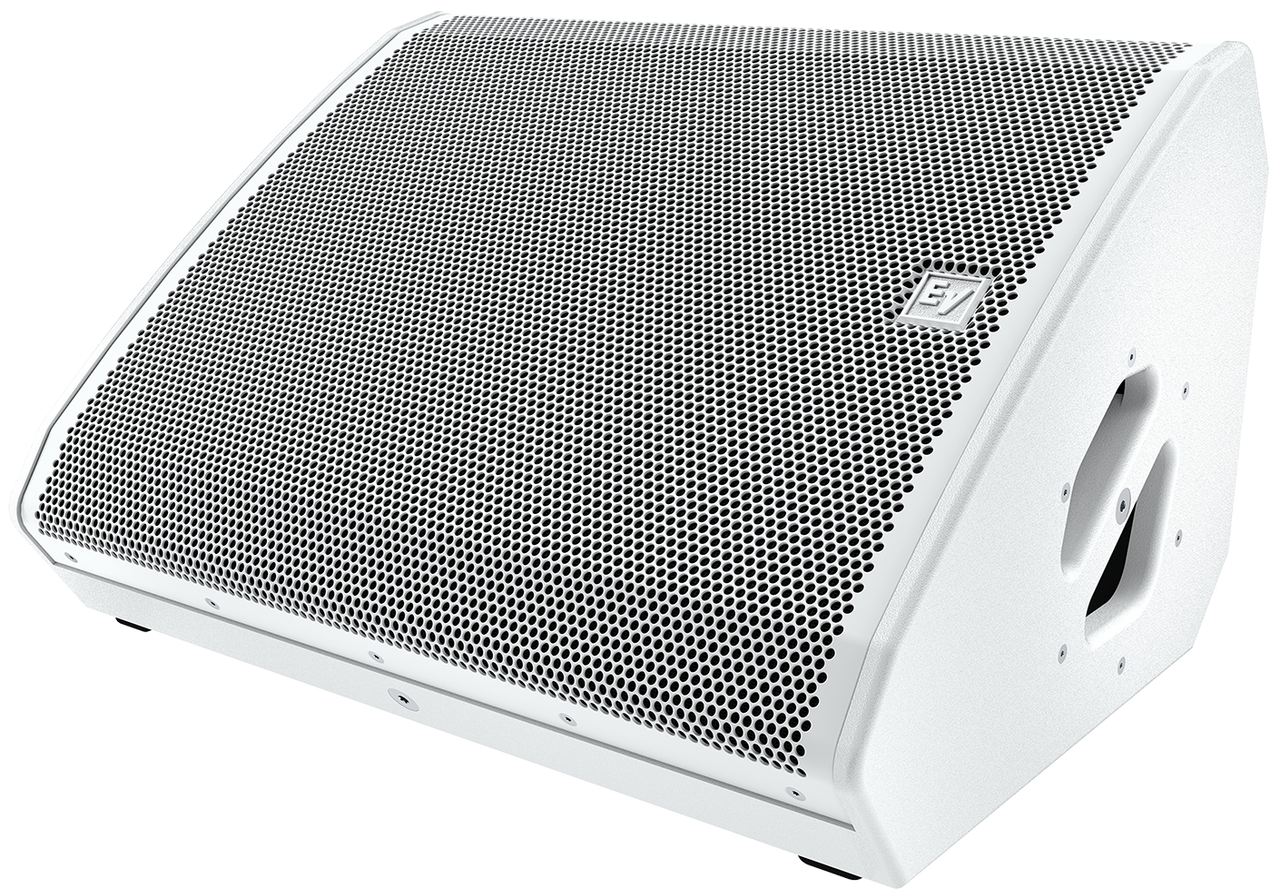

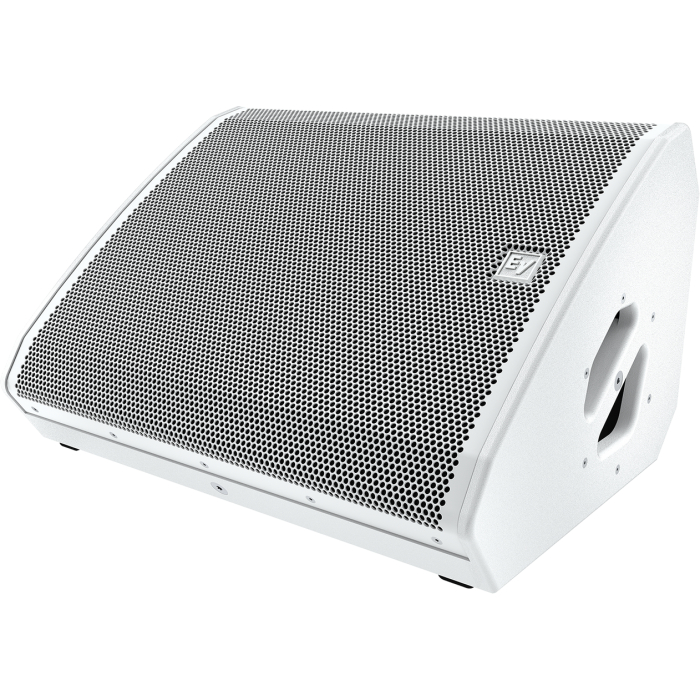

Electro-Voice MFX-15MC 15″ Multi-Use Coaxial Monitor – White

Electro-Voice

AED 12217.38 inc VAT.

The Electro-Voice 15MC MFX Multi-Functional Monitor offers superior performance in a compact, coaxial design, suitable for live stage monitoring, short-throw sound reinforcement, and diverse permanent installations. Featuring a recessed input panel with NL4 connections and a passive/biamp switch, these monitors maximize internal volume while maintaining a low profile. The MFX series integrates seamlessly with Dynacord TGX or IPX amplifiers via SONICUE software to optimize performance for varied applications, making it a versatile addition for live sound companies.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: MFX-15MC-W Categories: , , Brand:

Description

Electro-Voice MFX-15MC Multi-Functional Monitor

Electro-Voice’s MFX-15MC Multi-Functional Monitor delivers cutting-edge reference performance from a compact, two-way, coaxial design. Multifaceted in its use, it excels as a live sound stage monitor, short-throw loudspeaker, and for various permanent installations. The internal cabinet design significantly enhances internal volume, while maintaining a low stage profile to preserve sight lines. The recessed rear input panel safeguards connectors and facilitates easy access with NL4 inputs and loop-through connections, and a passive/biamp switch.

This monitor is an ideal investment for live sound companies due to its versatility and compatibility with Dynacord TGX or IPX series amplifiers, optimized with EV’s DSP settings running in Dynacord’s SONICUE control software. Its constant directivity waveguide offers tailored horizontal and vertical coverage patterns and superior gain-before-feedback performance.

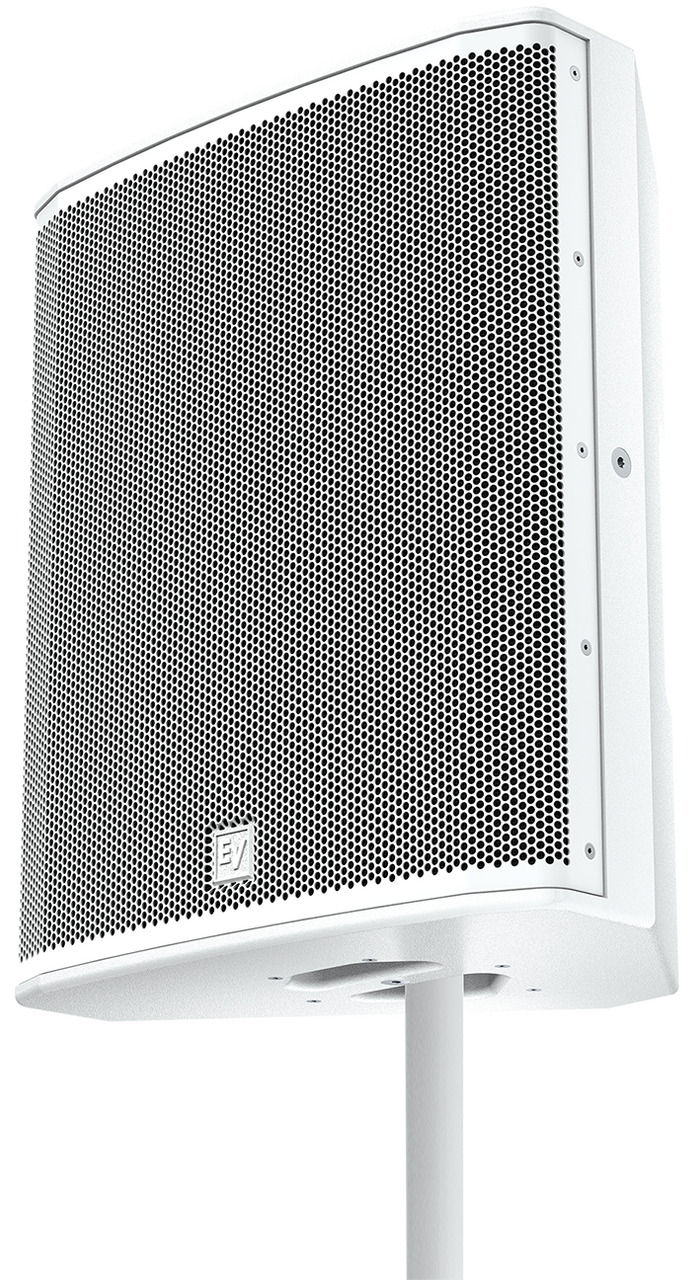

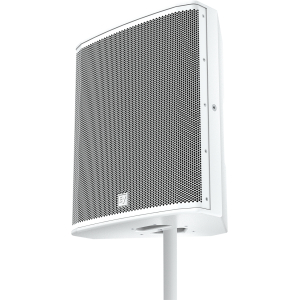

Integrated with a rotatable coaxial driver and horn assembly, it’s customizable for various installations. It features an integrated pole cup and multiple M10 suspension points for versatile mounting options.

Key Specifications

Specification Details
Frequency response (-3 dB) 52 Hz – 18 kHz
Frequency range (-10 dB) 45 Hz – 19 kHz
Rotatable coverage 60° x 40° FOH, 40° x 60° Monitor
Rec. high-pass frequency Use factory preset
Axial sensitivity 97 dB (1 W/1 m)
Max. SPL 136 dB
Power handling 500 W (Continuous), 3500 W (Peak)
Nominal impedance passive 8 Ω
Nominal impedance biamp LF 8 Ω
Nominal impedance biamp HF 8 Ω
Transducer CXCA3128-1CA
Connectors Neutrik NL4 input with NL4 pass through
Enclosure 12-18-mm Baltic birch plywood with EVCoat
Logo Rotatable
Monitor angles 35° and 55°
Grille 1.5-mm zinc plated steel with corrosion resistant coating
Handles Two with integrated cup for standard 35-mm pole
Suspension Four M10 suspension points
Color Black (RAL 9005) or white (RAL 9003)
Dimensions (H x W x D) 600 mm x 500 mm x 339 mm (23.6 in x 19.7 in x 13.4 in)
Net weight 23 kg (51 lb)
Shipping weight 25.2 kg (55.6 lb)
