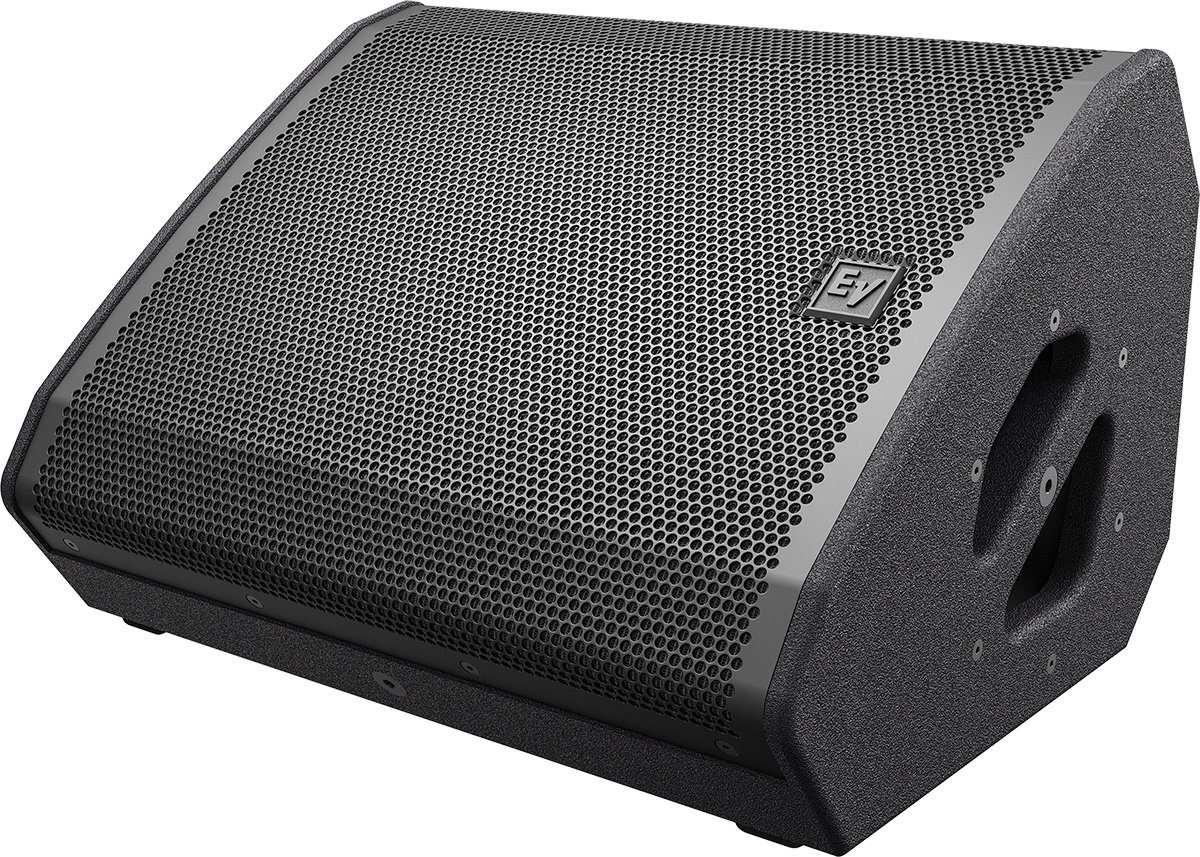

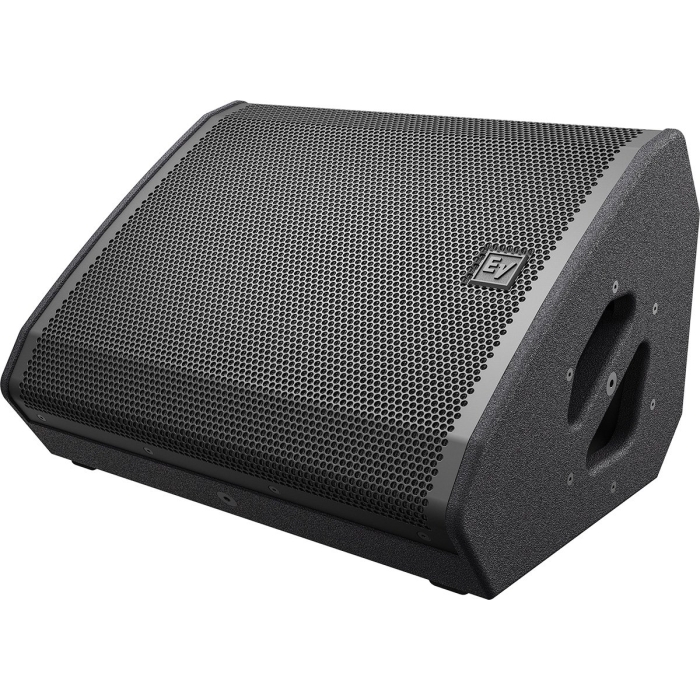

Electro-Voice MFX-12MC-B 12 Inch Coaxial Monitor Black

AED 10818.89 inc VAT.

The Electro-Voice MFX-12MC is a versatile 12″ coaxial monitor designed for live sound stage use and short throw reinforcement, suitable for various permanent installations. It features a low stage profile to preserve sight lines, recessed input panel with NL4 connections, and a passive/biamp switch. Optimized with Dynacord TGX or IPX amplifiers through SONICUE software, it ensures excellent performance across diverse applications.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

Electro-Voice MFX-12MC 12″ Multi-use Coax Monitor

Name: Electro-Voice MFX-12MC-B 12 Inch Coaxial Monitor Black
Brand: Electro-Voice
SKU: MFX-12MC-B
Price: 10818.89 AED
Availability: InStock

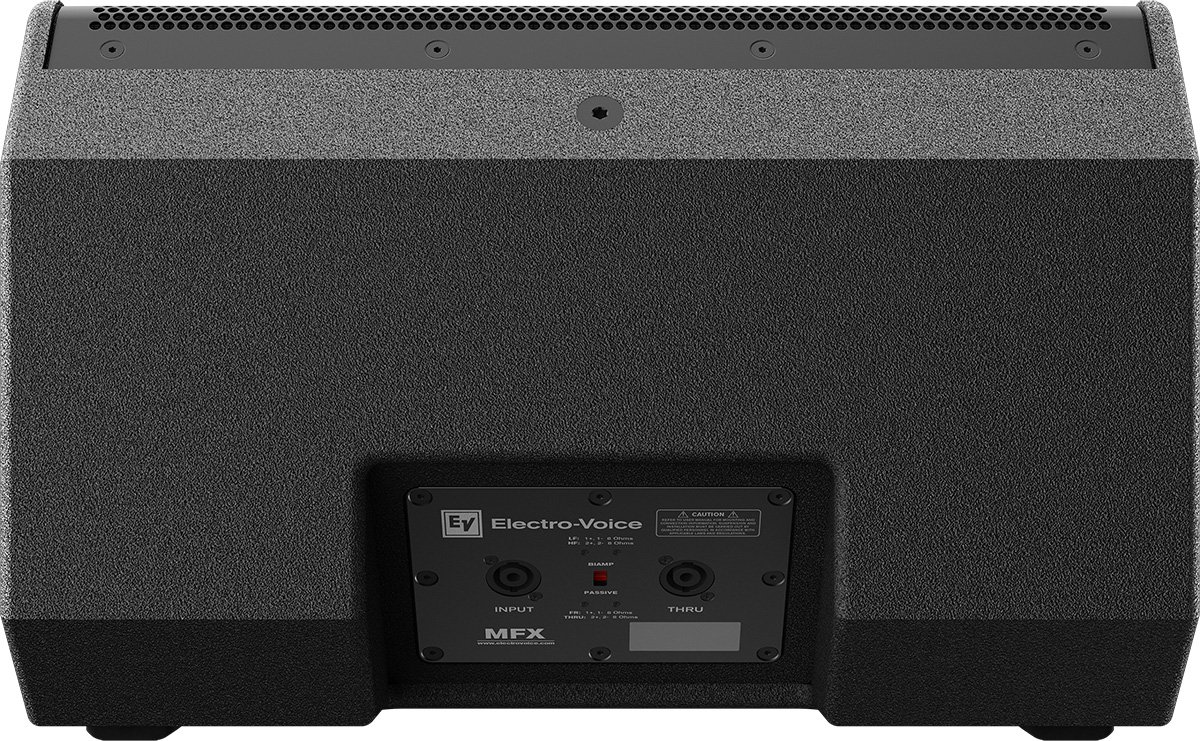

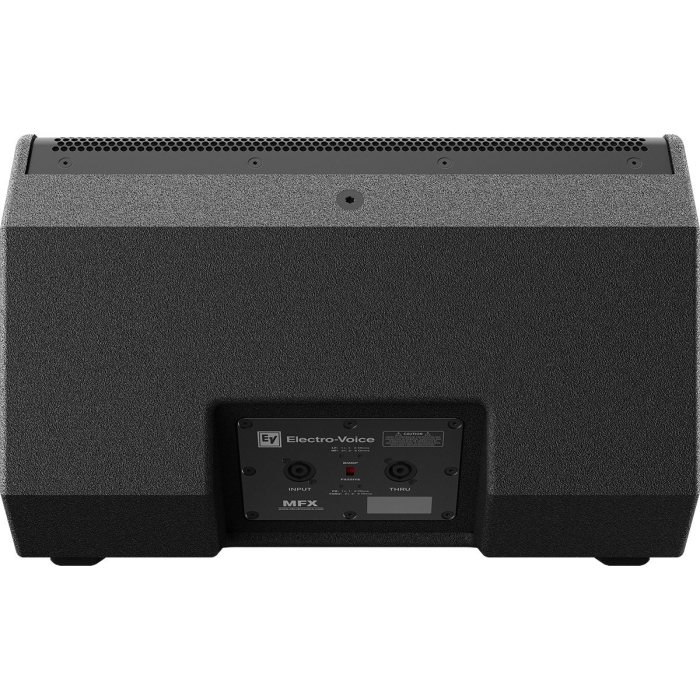

The Electro-Voice MFX-12MC 12″ multi-use coax monitor delivers a new level of reference performance from compact, two-way, coaxial designs. Designed for live sound stage monitoring, it also serves as a full-range sound reinforcement speaker suitable for various permanent installations. Its internal structure maximizes internal volume while maintaining a low profile to preserve sight lines. The protected input panel includes NL4 input and loop-through connections and a passive/biamp switch.

With versatility in deployment, these monitors are a valuable investment for live sound companies. EV provides a library of DSP settings optimized for specific uses, with recommended amplifier matches being the Dynacord TGX or IPX series. The settings run in Dynacord’s SONICUE control software, ensuring efficient integration into the amplifier’s DSP section.

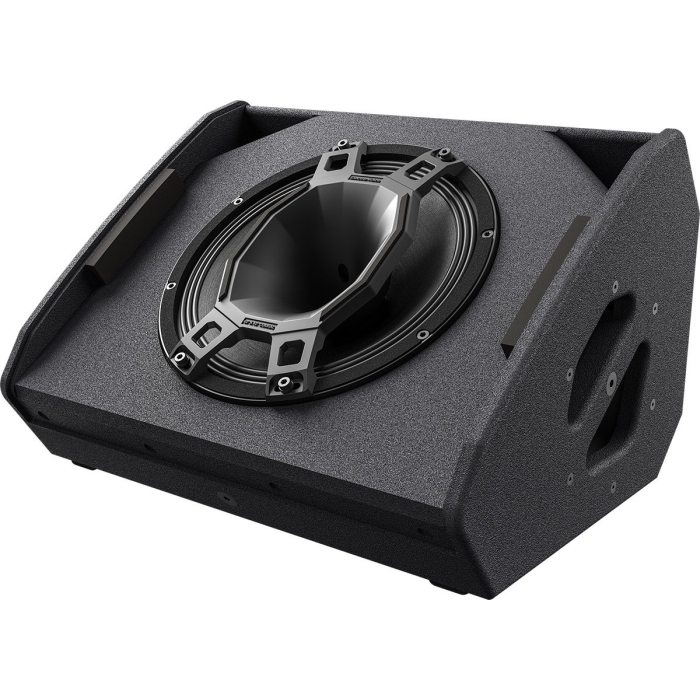

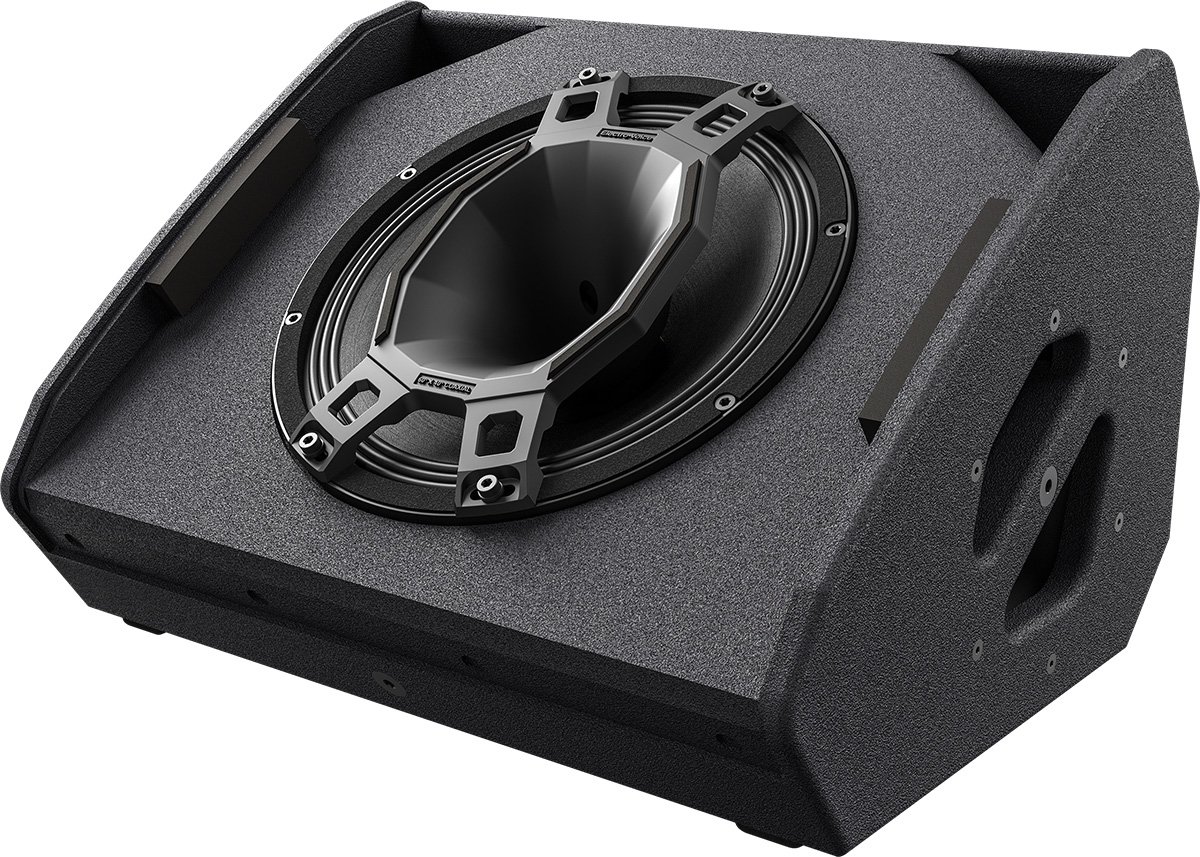

The coaxial driver and horn assembly can be rotated 90° for install applications, allowing alterations in coverage pattern. Both models come with integrated pole cups, M10 suspension points, and configurations for wall-mount or flown use.

Key Features

Specification	Details
Frequency Response (-3 dB)	62 Hz – 18 kHz
Frequency Range (-10 dB)	50 Hz – 19 kHz
Coverage	60° x 40° FOH, 40° x 60° Monitor
Axial Sensitivity	97 dB (1 W/1 m)
Max. SPL	135 dB
Power Handling	450 W (Continuous), 3000 W (Peak)
Impedance (Passive)	8Ω
Impedance (Biamp LF)	8Ω
Impedance (Biamp HF)	8Ω
Transducer	CXCA3128-1CA
Connectors	Neutrik NL4 input with NL4 pass through
Enclosure	12-18-mm Baltic birch plywood with EVCoat
Monitor Angles	35° and 55°
Grille	1.5-mm zinc plated steel with corrosion resistant coating

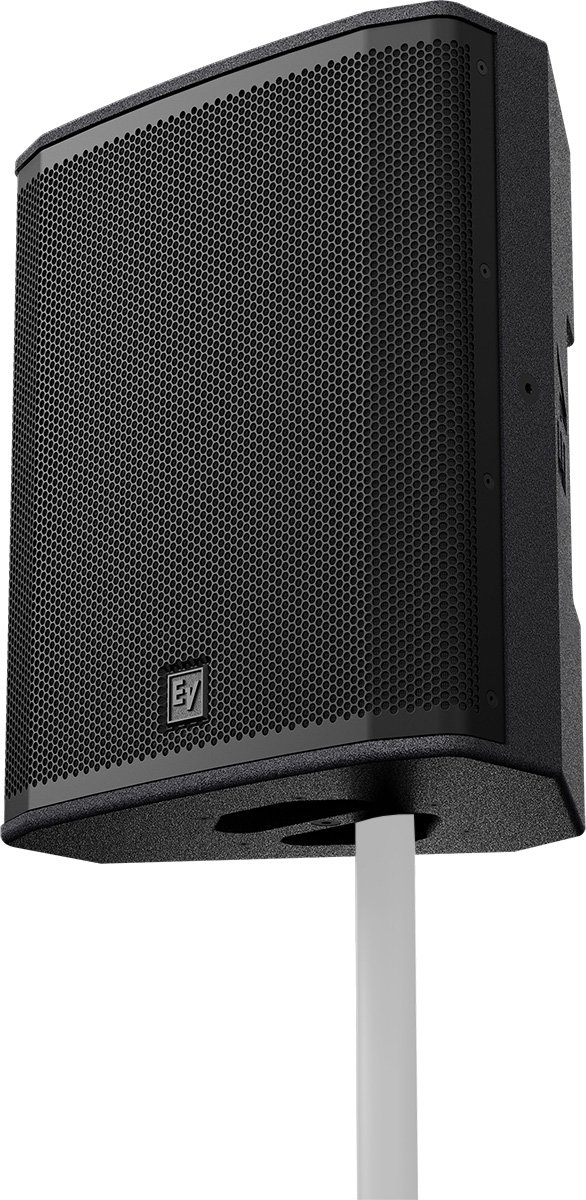

Handles	Two with integrated cup for standard 35-mm pole
Suspension	Four M10 suspension points
Color	Black
Dimensions (HxWxD)	19.7 x 16.5 x 11.7″ (500 x 420 x 298mm)
Net Weight	41.9Lbs (19kg)
Shipping Weight	46.7Lbs (21.2kg)
