Electro-Voice EVID-P6.2W 6.5″ Pendant Speaker

Electro-Voice EVID-P6.2 Loudspeaker System

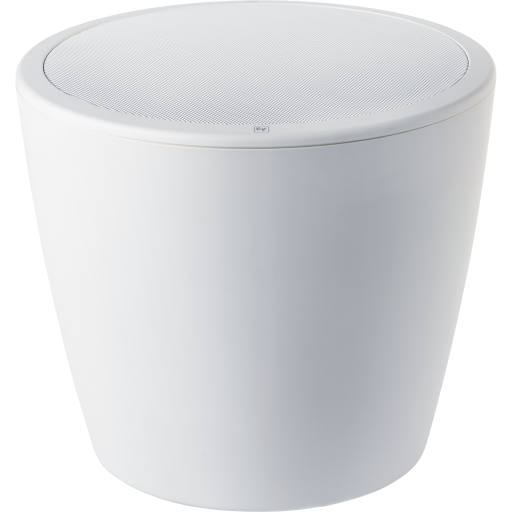

The Electro-Voice EVID-P6.2 loudspeaker system is designed to deliver exceptional audio quality and versatility in various environments. This two-way pendant loudspeaker includes a bezel assembly, magnetic grille, rear enclosure, and a 6.5-inch coaxial loudspeaker with an internal line-matching transformer. Featuring a titanium dome tweeter, the EVID-P6.2 ensures clear and precise high-frequency reproduction.

This loudspeaker employs a 2nd order crossover network with a comprehensive protection circuit, safeguarding components from excessive power. Its transformer allows multiple wattage selections (1.88W, 3.75W, 7.5W, 15W, or 30W) for 70V or 100V lines, or an 8-ohm bypass, conveniently adjustable via a switch on the front baffle.

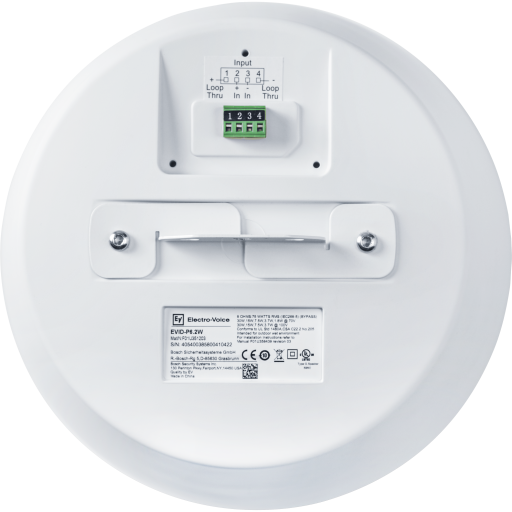

Constructed from UL 94V-0 rated ABS, the EVID-P6.2’s perforated grille comes in a semi-gloss black or white powder-coated enamel finish. A 4-pin terminal block enables seamless direct connections and passthrough to additional speakers, accommodating up to 12 gauge wire.

Key Features

• Full bandwidth overload protection to ensure durability.
• Front baffle wattage tap adjustment for easy configuration.
• Magnetic grille allowing quick access for tap adjustments.
• Suitable for both indoor and outdoor use.
• UL1480A and CSA C22.2 certified for secure indoor and protected outdoor installations.
