Ceiling Speakers

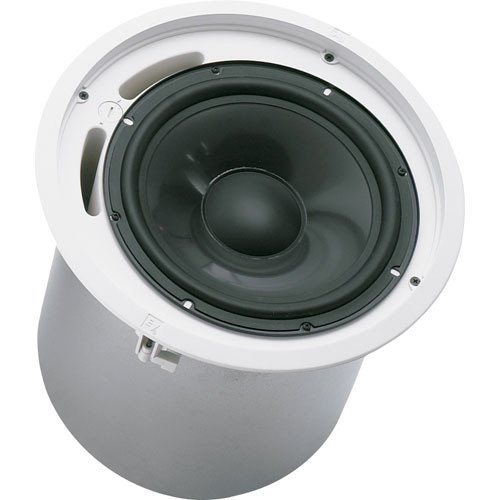

Electro-Voice EVID C10.1 10″ 100W Passive Ceiling Subwoofer Pair – White

Electro-Voice

AED 2236 inc VAT.

The white Electro-Voice EVID C10.1 is a 10″ passive in-ceiling installation subwoofer equipped with a multi-tap transformer, designed for enhancing low-frequency sound in various commercial environments. Suitable for use with 70V, 100V, and 8-Ohm amplifiers (not included), it delivers 100W of continuous power and effectively covers a frequency range of 45 to 150 Hz.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: EVID C10.1 Categories: , , Brand:

Description

Product Overview

The Electro-Voice EVID C10.1 is a dependable passive 10″ in-ceiling subwoofer, engineered for enhanced low-frequency performance across various commercial spaces such as offices, restaurants, and retail environments. Its robust design ensures consistent sound reinforcement when connected with 70V, 100V, or 8-Ohm amplifiers, delivering 100W of continuous power.

This subwoofer features a high-excursion 10″ woofer that covers frequencies from 45 Hz to 150 Hz. The built-in 12 dB/octave low-pass crossover with overload protection ensures optimal input bandwidth, while a low-loss transformer supports multiple taps selectable via a front-panel switch for ease of use. The enclosure’s ported design, paired with high-quality construction materials, facilitates deep bass extension.

Key Features

Specification Details
Active or Passive Passive
Driver 10″ high-excursion woofer
Frequency Range 45 to 150 Hz
Coverage 180° (conical)
Power Capacity 100W continuous, 400W peak
Maximum SPL 114 dB continuous, 120 dB peak
Sensitivity 94 dB SPL (1W/1m)
Nominal Impedance 8 Ohms (Transformer Bypass)
Transformer Taps 70V: 7.5, 15, 30, 60W
100V: 15, 30, 60W
8 Ohms (bypass)
Crossover Type 12 dB/octave low-pass
Construction ABS baffle, steel backcan, powder-coated steel grille
Inputs Removable 4-pin Euroblock
Max Wire Gauge 12 AWG
Cutout Diameter 12.7” / 32.2 cm
Dimensions 12.6 x 11.9” / 32.0 x 30.3 cm
Weight 15.5 lb / 7 kg
Safety Approvals UL 1480, UL 2043
Package Weight 43 lb
Box Dimensions 17 x 17 x 17″
