Description

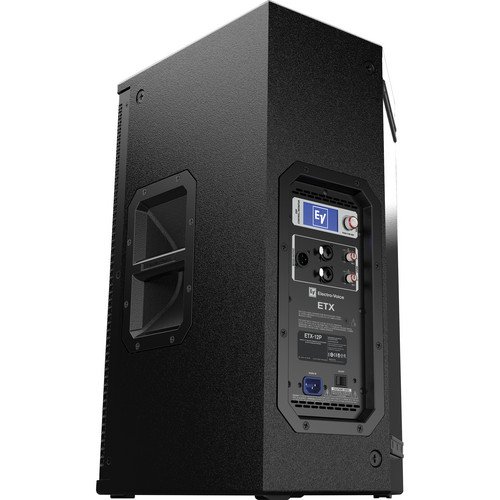

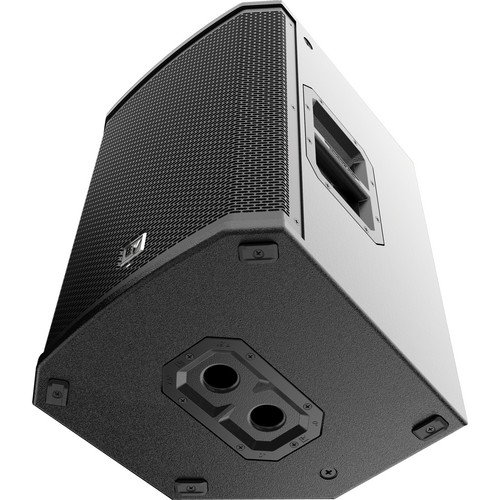

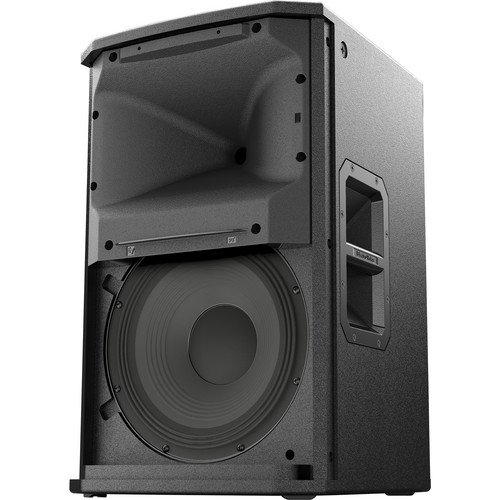

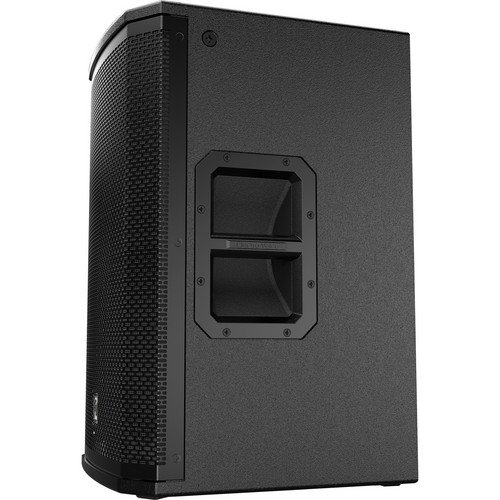

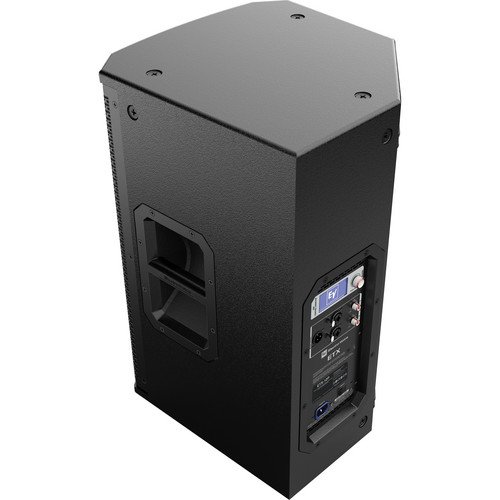

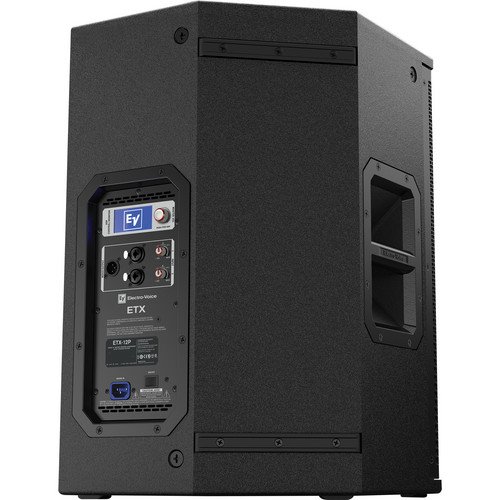

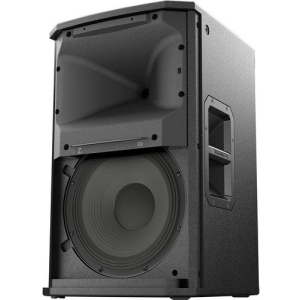

Electro-Voice ETX-12P 12″ Portable Powered Loudspeaker
The ETX-12P 12″ Portable Powered Loudspeaker from Electro-Voice offers a dynamic audio experience. Its flexibility makes it ideal for various applications such as floor monitoring, tripod mounting, or ceiling suspension. This powerful Class-D loudspeaker provides an impressive 2,000-watt output, achieving peak sound pressure levels (SPL) of up to 135dB.
The unit is equipped with a 12-inch woofer and a 1.25-inch titanium high-frequency driver, ensuring a rich and balanced sound. The onboard digital signal processing (DSP) can be managed via the rear panel LCD, offering functions such as equalization (EQ), boundary compensation, limiting, and delay, allowing for precise audio control and customization.
Key Features
- 2,000W power rating
- 135dB peak SPL
- 12″ woofer
- Rear-panel LCD DSP control
- DSP functions: EQ, limiter, boundary compensation
- SST waveguide for consistent sound coverage
- Lockout mode for secure operation
- Rugged construction with aluminum chassis, handles, and pole cup
Specifications
PA Speaker
| Specification |
Details |
| Configuration |
Active |
| Total Power Capacity |
2000 W |
Drivers
| Specification |
Details |
| HF Driver |
1 x 1.25″ / 31.75 mm titanium compression driver |
| LF Driver |
1 x 12″ / 30.5 cm woofer |
Performance
| Specification |
Details |
| Frequency Response |
55 Hz to 20 kHz -3 dB
43 Hz to 20 kHz -10 dB |
| Maximum SPL |
135 dB (peak) |
| Coverage Angle |
90° H x 60° V |
Connectivity
| Specification |
Details |
| Audio I/O |
2 x Combo XLR-1/4″ TRS input
1 x XLR 3-pin thru/output |
Signal Processing
| Specification |
Details |
| Crossover |
1.6 kHz |
Power
| Specification |
Details |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Current Consumption |
0.8 to 1.6 A |
Physical
| Specification |
Details |
| Mounting |
8 x M10 |
| Construction Material |
Metal grille, plywood |
| Dimensions |
24 x 15 x 16″ / 613 x 381 x 400 mm |
| Weight |
52 lb / 23.6 kg |
Packaging Info
| Specification |
Details |
| Package Weight |
62.05 lb |
| Box Dimensions (LxWxH) |
25.6 x 18.1 x 16.4″ |
