Loudspeakers

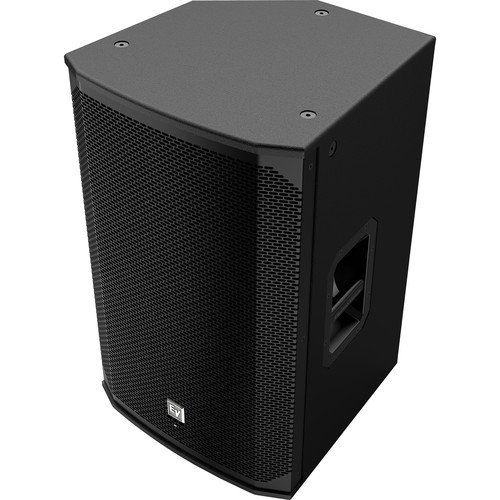

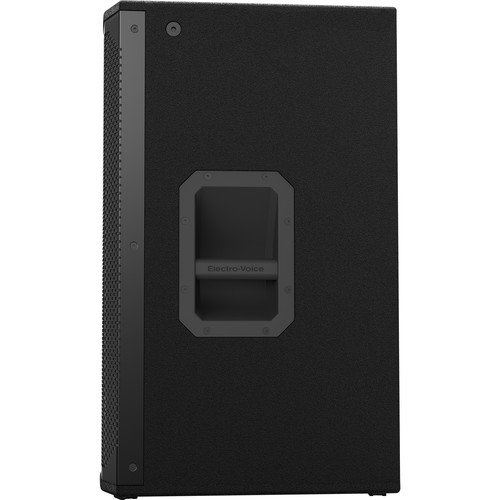

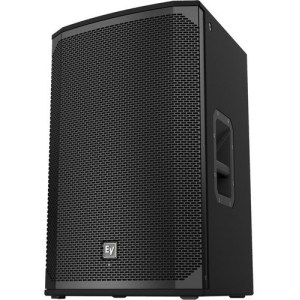

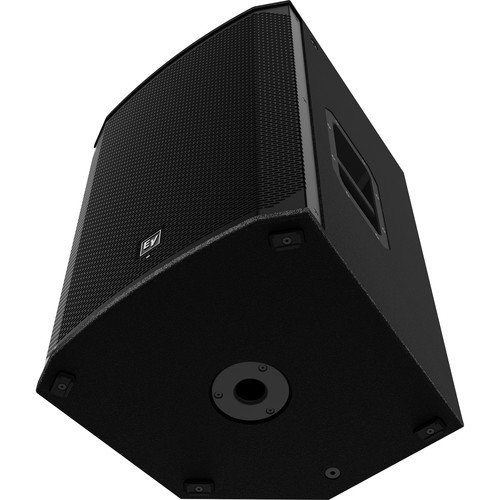

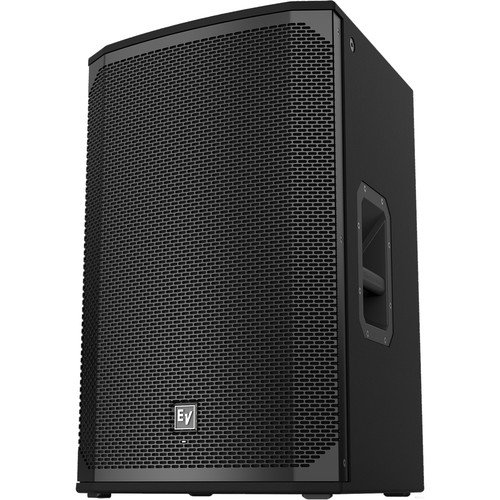

Electro-Voice EKX-15 15-Inch 400W 2-Way Passive Speaker 1600W Peak

Electro-Voice

AED 3,801 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: EKX-15 Categories: , , Brand:

The Electro-Voice 15” 2-Way Passive Loudspeaker delivers a peak output of 1600W and a peak SPL of 132 dB, utilizing high-sensitivity transducers and SST waveguide technology for precise coverage. Features include eight M10 threaded mounting points, aluminum pole mounts, and metal handles.

Description

Electro-Voice 15” 2-Way Passive Loudspeaker

The Electro-Voice 15” 2-Way Passive Loudspeaker is designed for superior sound reinforcement, delivering a peak output of 1600W and an impressive peak SPL of 132 dB. The high-sensitivity transducers, combined with the SST (Signal Synchronized Transducers) waveguide design, ensure accurate and consistent coverage. This loudspeaker is well-suited for a variety of venues and applications thanks to its robust construction and versatile mounting options.

Key Features

This versatile loudspeaker includes:

  • 1600W maximum peak output with 132 dB peak SPL
  • SST waveguide design for consistent coverage
  • Lightweight and compact 15mm wood enclosure with EVCoat finish
  • 90 x 60° pattern ideal for mid-size stage coverage
  • 40° monitor angle with rubber feet
  • Eight M10 threaded mounting points
  • Durable all-metal handles and aluminum pole mounts

Specifications

Specification Details
Axial Sensitivity 96 dB full space measurement (SPL, 1 W @ 3.28′ / 1 m)
Maximum SPL 132 dB at 3.28′ (1 m) using broadband pink noise at rated peak power rating
Nominal Impedance 8 Ohms
Power Handling Continuous / Peak: 400 W / 1600 W
Frequency Response At -3 dB: 75 Hz to 18 kHz full space measurement
At -10 dB: 50 Hz to 20 kHz full space measurement
Recommended High-Pass Frequency 50 Hz
Coverage Nominal -6 dB: 90 / 60° (H / V)
HF: DH-1M 1″ (25.4 mm) titanium compression driver
Transducer LF: EVS-15M 15″ (381 mm)
Crossover Frequency 1.6 kHz
Minimum Impedance 7.2 Ohms
Connector Type Dual NL4
Enclosure Material 0.59″ (15 mm), plywood with EVCoat
Grille 18 AWG steel with powder coat
Suspension 8 x M10 threaded mounting points
Dimensions (H x W x D) 26.97 x 17.01 x 16.89″ (685 x 432 x 429 mm)
Weight 51.15 lb (23.2 kg)

Packaging Info

Specification Details
Package Weight 56 lb
Box Dimensions (LxWxH) 30 x 19.7 x 19.5″
